62-11785 2–4

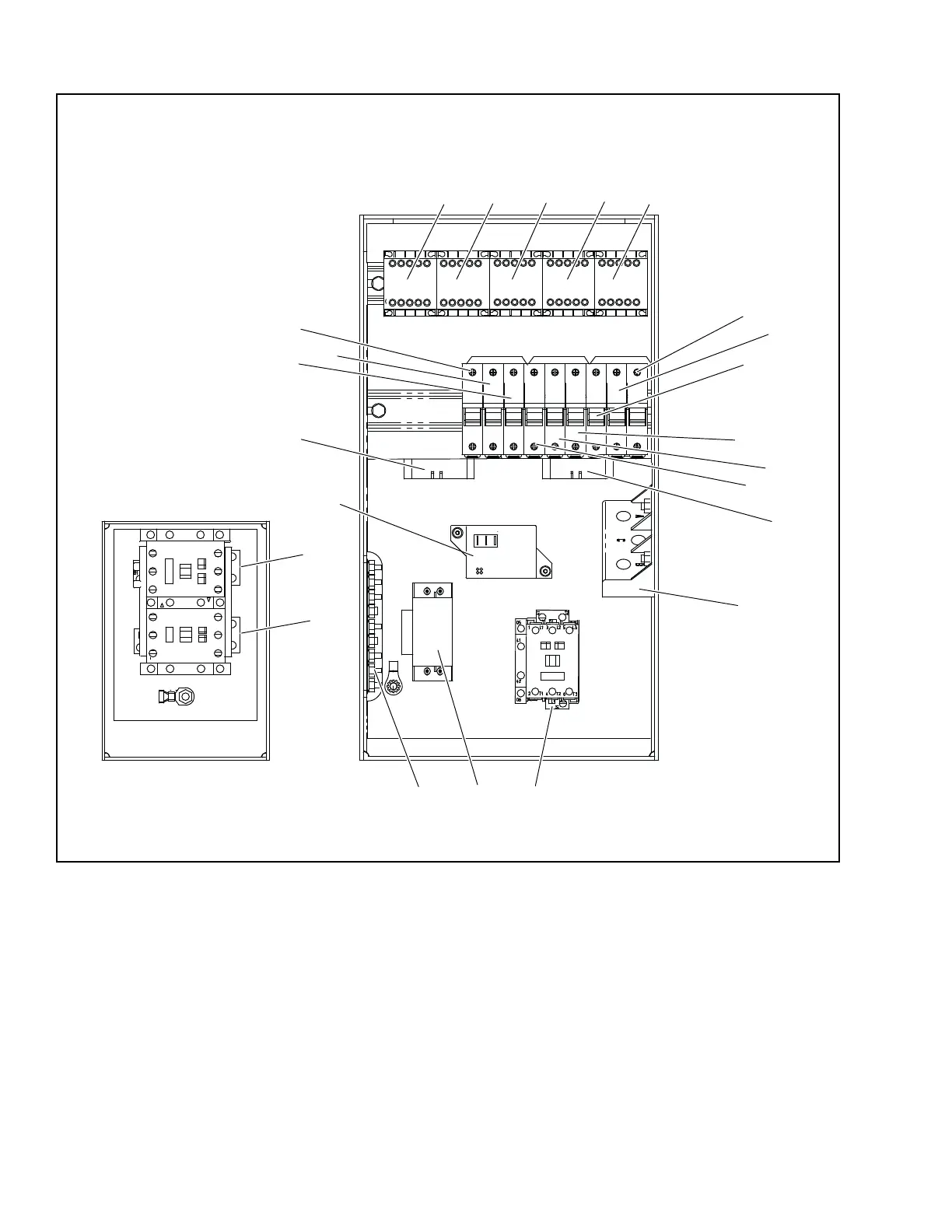

Figure 2.3 Control and Standby Boxes
1. Condenser Motor Contactor (CDCON1)
2. Condenser Motor Contactor (CDCON2)
3. Evaporator Motor Contactor (1EVCON)
4. Heat Contactor 1 (1HTCON1)
5. Heat Contactor 2 (1HTCON2)
6. Fuse (F41) - Heater Power = 12A
7. Fuse (F40) - Heater Power = 12A
8. Fuse (F39) - Heater Power = 12A
9. Fuse (F38) - Fan Motor Power = 12A
10. Fuse (F37) - Fan Motor Power = 12A
11. Fuse (F36) - Fan Motor Power = 12A
12. Contactor Control Board 2 (2CCB)
13. AC Current Sensor (CT 1, 2, 3)
14. Compressor Contactor (CCON)
15. High Voltage Transformer (HVT)
16. Ground Plate (PE)
17. Power Supply Contactor 2 (PSCON2)
18. Power Supply Contactor (PSCON)
19. Overload Ground Fault (OGF)
20. Contactor Control Board 1 (1CCB)
21. Fuse (F35) - Battery Charger Power = 5A
22. Fuse (F34) - Battery Charger Power = 5A
23. Fuse (F33) - Battery Charger Power = 5A
CONTROL BOX
STANDBY BOX
6
23
12 3 45
7
8
9
10
11
13
12
141516
17
18
19
20
21
22
