62-11785 2–2

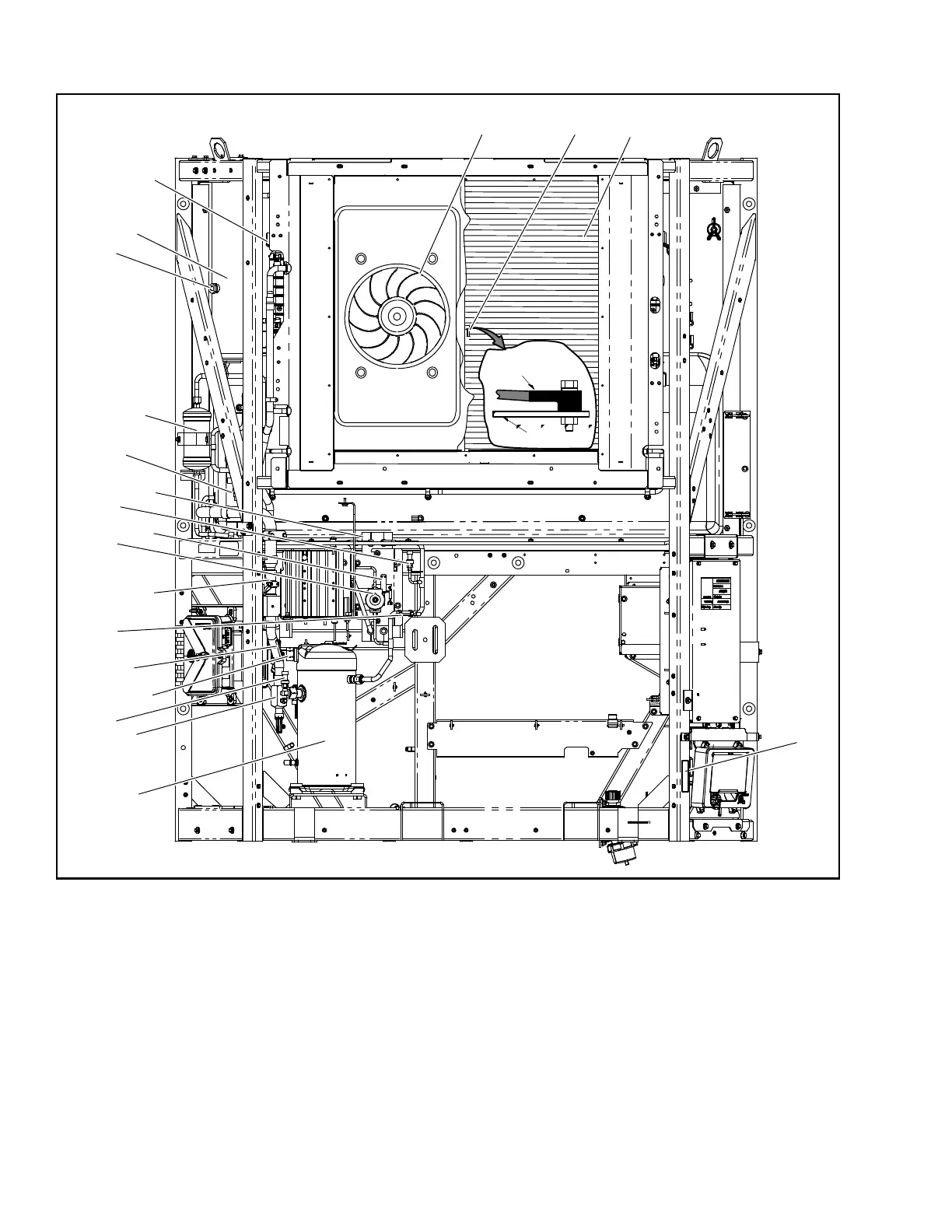

Figure 2.1 Front View - Refrigeration System Components
1. Condenser Fans and Motors (CDM1 & CDM2)
2. Ambient Air Temperature Sensor (AAT)
3. Condenser Coil
4. Model/Serial Number Nameplate
5. Compressor (C)
6. Compressor Junction Box (At rear of compressor)
7. Compressor Discharge Temperature Sensor (CDT
- Located on compressor head)
8. Compressor Suction Service Valve
9. Compressor Suction Pressure Transducer (CSP)
10. Compressor Discharge Service Valve
11. High Pressure Switch
(HPS - Located in service valve)
12. Compressor Discharge Pressure Transducer
(CDP - Located in discharge line)
13. Compressor Suction Temperature Sensor (CST)
14. Economizer Outlet Temperature Sensor (ECOT)
15. Compressor Suction Modulation Valve (CSMV)
16. Liquid Injection Valve (LIV)
17. Economizer Expansion Valve (ECXV)
18. Economizer Outlet pressure Transducer (ECOP)
19. Economizer
20. Liquid Line Service Valve
21. Filter-Drier
22. Receiver Sight Glasses
23. Receiver
24. Defrost Air Switch (DAS)
- - - - -
PARTITION
MOUNT ATT
AS SHOWN
1
2
3
4
5, 6, 7
8
9
10, 11, 12
13
14
15
16
17
18
19
20
21
22
23
24
