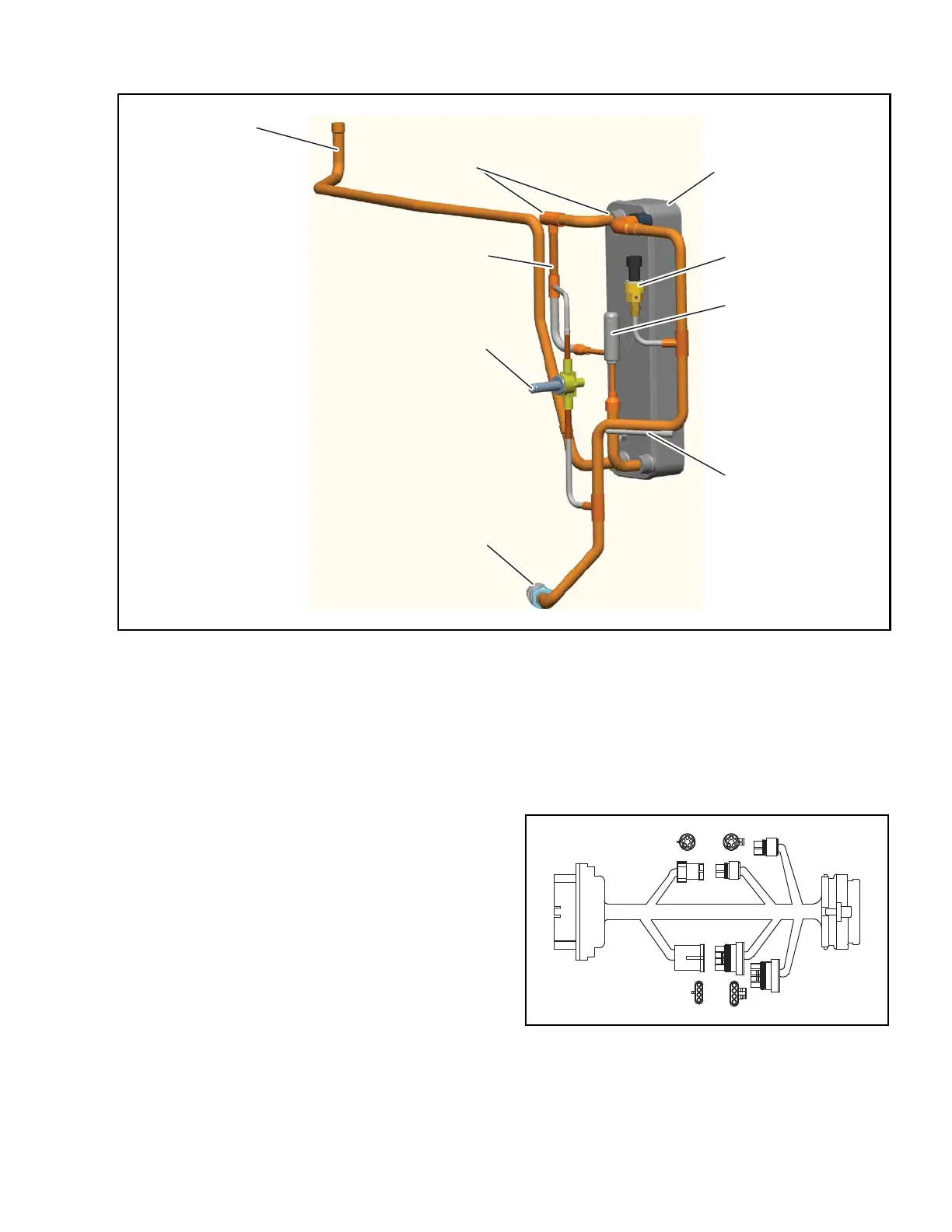

Figure 8.8 Economizer Section
1. Liquid Outlet Line (To EVXV)
2. Liquid Inlet Line (From Drier)
3. Economizer Heat Exchanger
4. Economizer Outlet Pressure Transducer (ECOP)
5. Economizer Expansion Valve (ECXV)
6. Economizer Outlet Temperature Sensor (ECOT)
7. Compressor Economizer Connection
8. Liquid Injection Solenoid Valve (LIV)
9. Strainer (Location)
--------------
8.7.6 Stepper Test Harness
A stepper test harness (Carrier Transicold P/N
07−00515) is available for testing the compressor suc-
tion modulation valve (CSMV) and evaporator expan-
sion valve (EVXV).
The test harness is installed by disconnecting the
2SVM connector at the SVM module and plugging the
C1 connector, see
Figure 8.8 , into the module and C2
connector into the unit harness. With the test harness
in place, the A1/A2 test harness connectors may be
used to perform EVXV testing while the B1/B2 connec-
tors may be used to perform CSMV testing.
Figure 8.9 Stepper Test Harness
4
1
2
3
4
5
6
7
8
9
A1 A2
B1 B2
C2
C1
A2
B2
