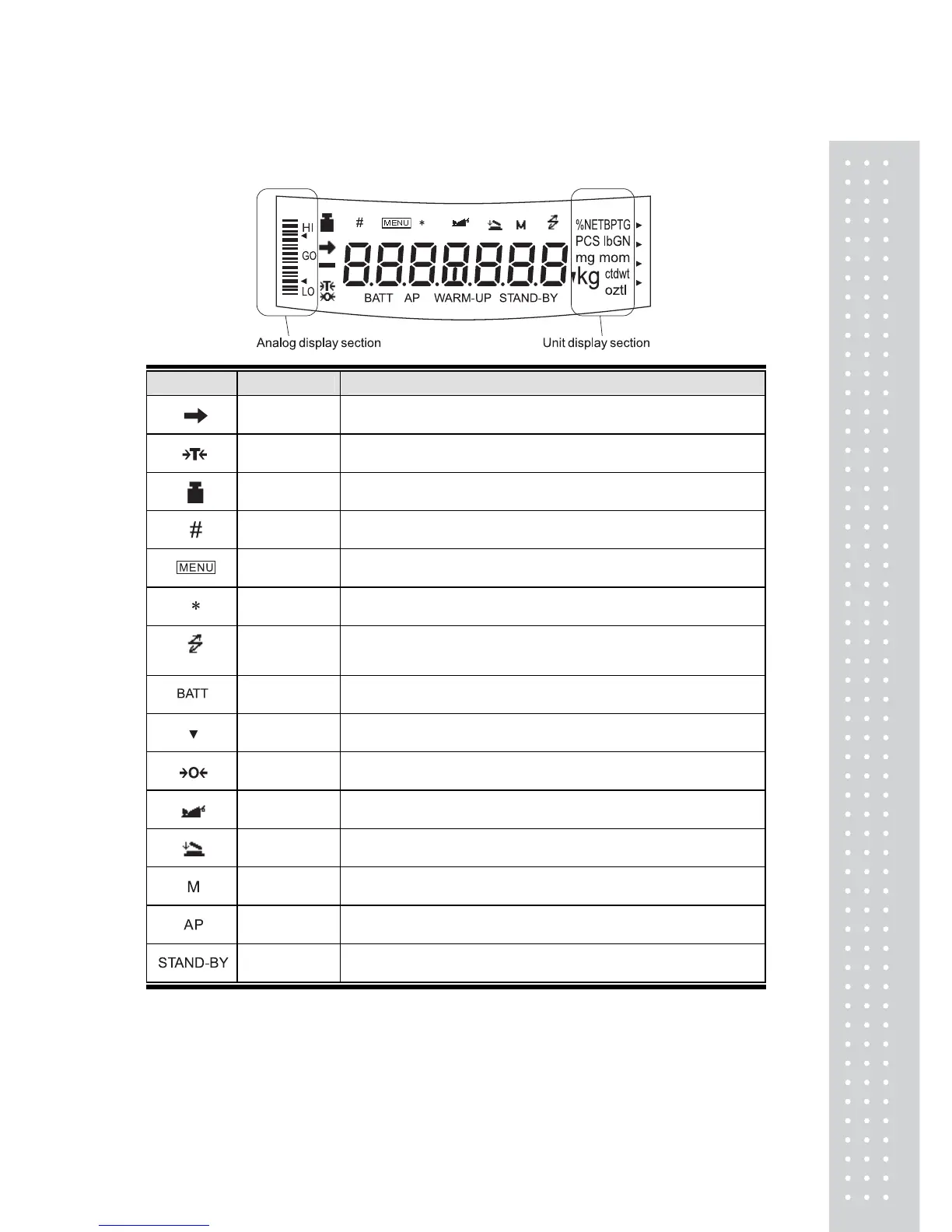

2.3 Balance Display and Function
Display Name Description
Stability mark
Indicates that the weighed value is stable. (*1) In menu item selection,
indicates currently selected item.
Tare symbol Indicates that a Pretare value has been set.
Weight symbol
Illuminates during span calibration. In menu selection, indicates setting
related to calibration. Blinks before automatic span calibration starts.
Number symbol Indicates numeric value entry.
Menu symbol Indicates that the menu lock is on. Illuminates during menu item selection.
Asterisk Indicates that the displayed numeric value is not a mass value.
Communication
symbol
Illuminates during communication to external equipment through the
RS-232C or DATA I/O connector. In menu selection, indicates setting
related to communication.
Battery symbol
When the balance is operated with the optional battery pack, this symbo
illuminates to indicate that the battery voltage has dropped.
Inverse triangle
symbol
Indicates the set-up of solid specific gravity measurement. Used as a
substitute for the decimal point.
Zero symbol Indicates the set-up of Auto Zero function.
Animal symbol Indicates the set-up of Animal Weighing function.
Add-on symbol Indicates the set-up of Add-on mode or Formulation mode.
Memory symbol Indicates the set-up of Formulation mode.
Auto Print
symbol
Indicates the set-up of Auto Print function.
Stand-by
symbol
Illuminates when the balance power is in the standby mode.
Also illuminates when the application function has entered the standby mode.
＊1 Stability mark
The displayed value may change while the stability symbol remains illuminated if the
load is changing slowly or if the stability detection band has been set to a large value.
