6-WORKINGOPERATIONS

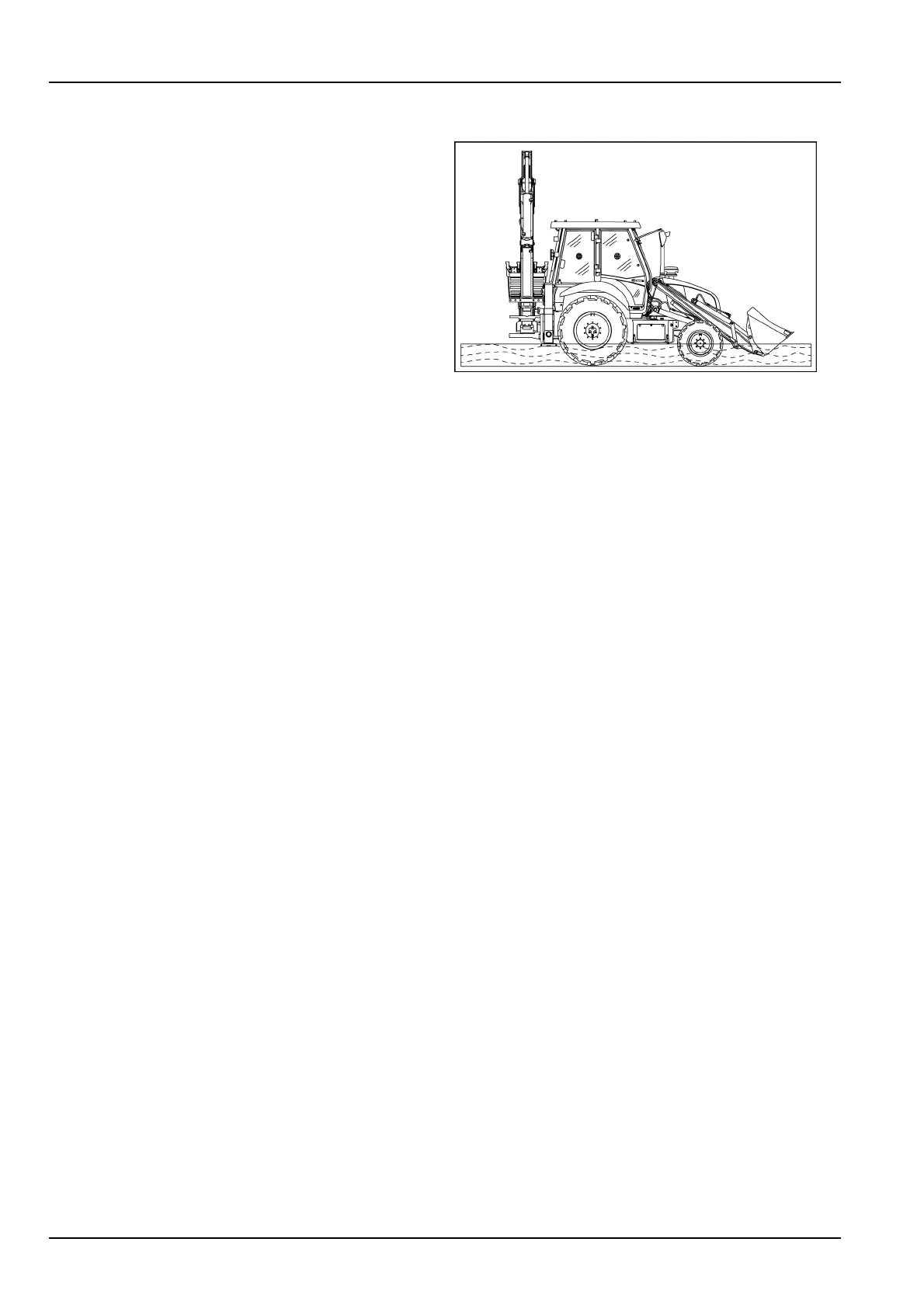

Operatingthemachineinwater

Makesurethatthebedofthestreamorstretchofwater

cansupporttheweightofthemachine.Thelevelofthe

watermustnotexceedtheheightofthecentreofthefront

wheels.

NOTICE:Neverworkinwaterifthewaterlevelishigher

thanthecentreofthefrontwheels.Beforetakingthema-

chineintothewater,pumpplentyofnewgreaseintothe

machine’sattachmentlinkages.

NOTICE:Neverworkinfast-owingwater.

PTIL14TLB0027AA1

6-4
