2-SAFETYINFORMATION

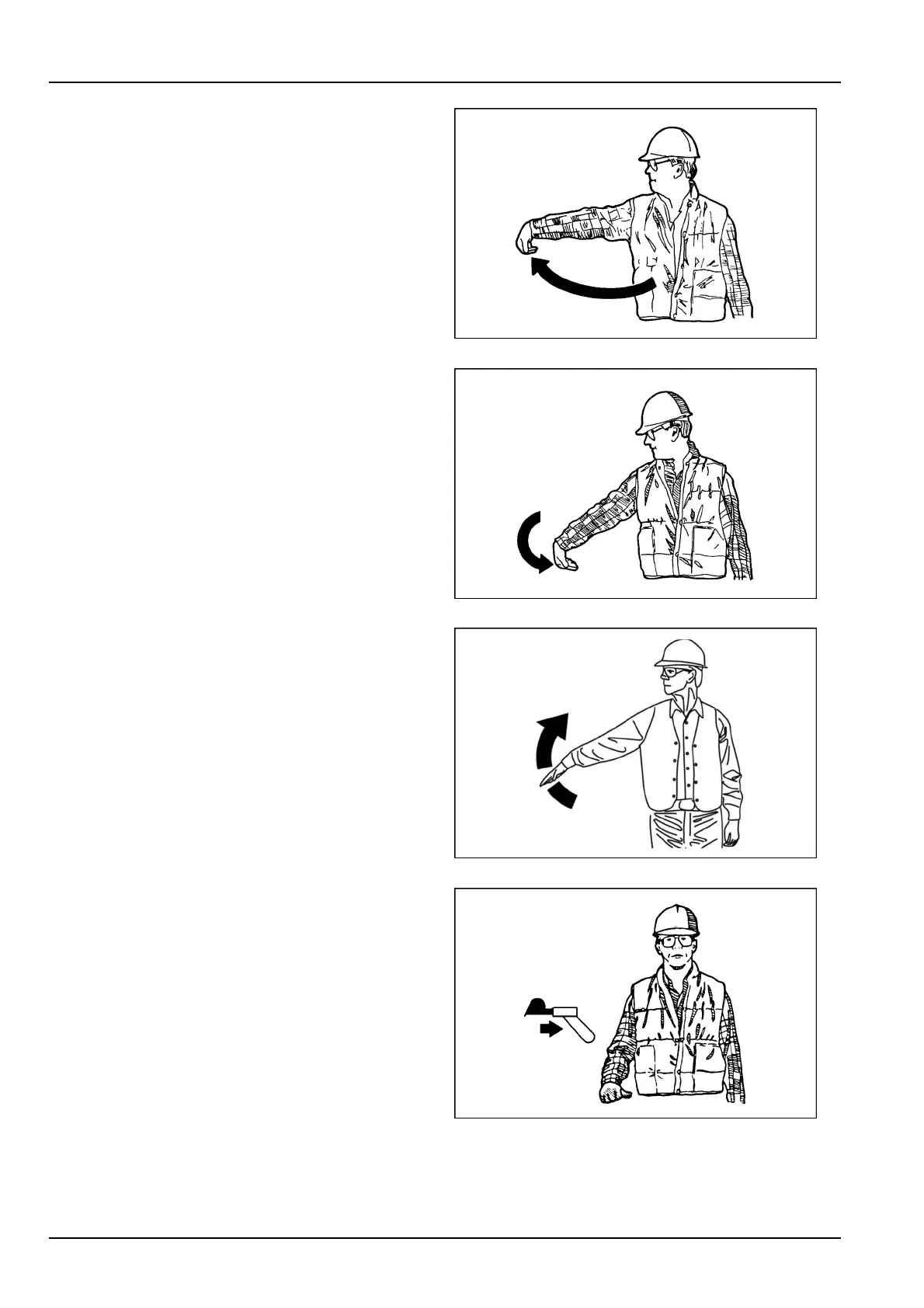

20.Backhoedipperout.

PTIL12TLB0327AA20

21.Backhoebucketdig.

PTIL12TLB0326AA21

22.Backhoebucketdump.

PTIL12TLB0325AA22

23.Retracttelescopicdipper(Iftted).

PTIL12TLB0322AA23

2-14
