3-CONTROLSANDINSTRUMENTS

Transmissioncontrols

Power-Shuttle

1.Gearshiftlever:Itispossibletoselectfourforwardand

fourreversetravelgears.

2.Transmissiondisconnectbutton(ongearshiftlever):

Priortochanginggearpressandholddownthisswitch

whichdisengagestransmissiondrive,selectthere-

quiredgearwiththegearshiftleverandreleasethe

switchtoreengagedrive.

3.Directionlever:Themovementofthisleverfromthe

neutralpositionwillengagetheforwardorreverse

travel.

NOTE:Inreversegearareversebuzzersounds.Also

thewarninglightsare“ON”inthetaillamp.

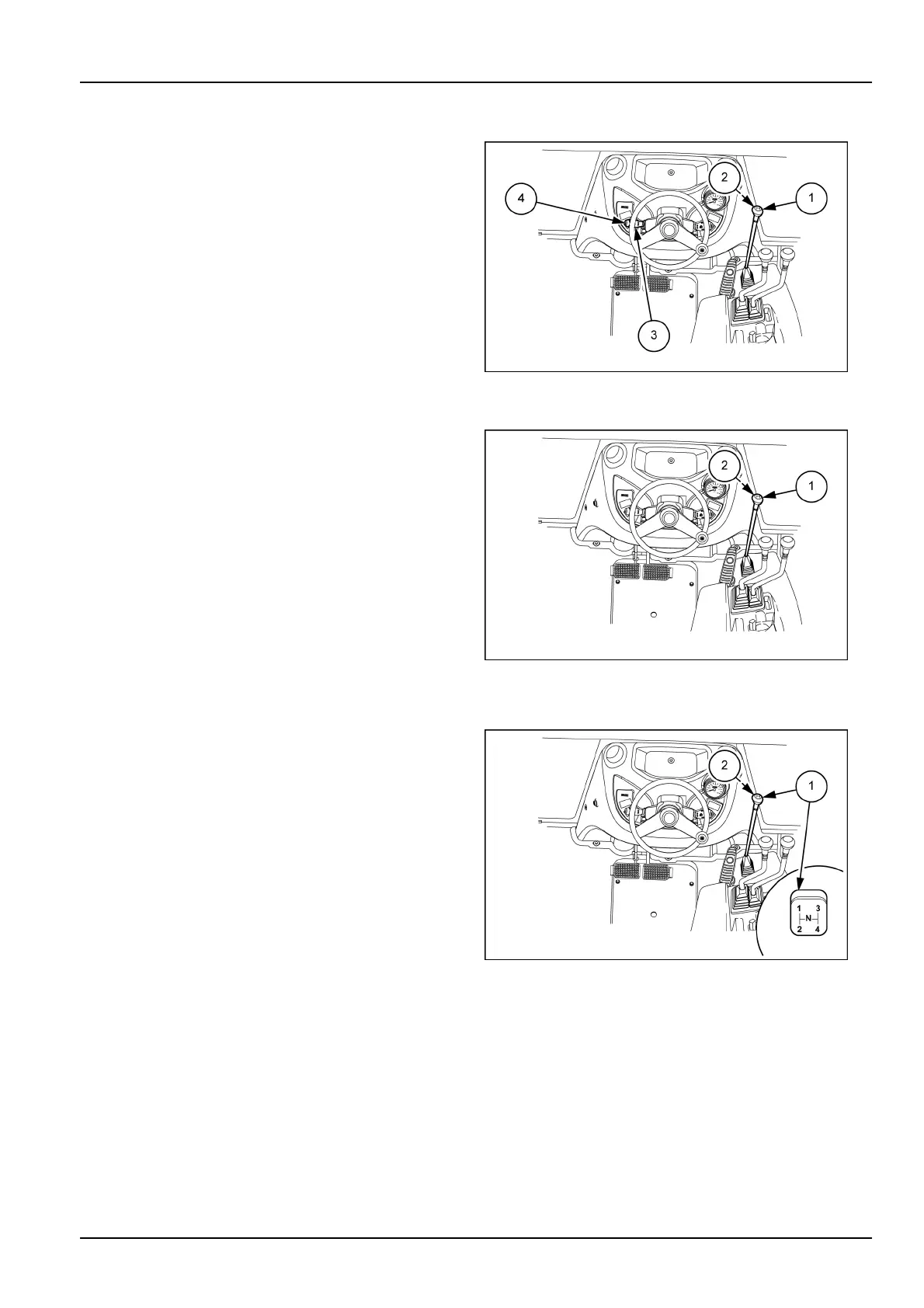

PTIL14TLB0223AB1

4.Hornbutton.

Adevicefor“transmissiondisconnection”isactivatedby

pushingbutton(2),placedonthegearshiftlever(1).

NOTICE:Alwaysapplytheparkingbrakewheneverthe

machineisparkedasthemachineisfreetorolleven

thoughthetransmissiongearshiftlevermaybe“InGear”

andtheengineisturned“OFF”.

PTIL14TLB0224AB2

Gearshiftlever

Thesinglegearshiftlever(1)isusedtoselectanyofthe

fourgearratios.Thetransmissiondisconnectbutton(2)is

depressedandheldastheleverisshiftedfromonegear

toanotherandthenreleasedtore-connecttransmission

drive.

PTIL14TLB0225AB3
