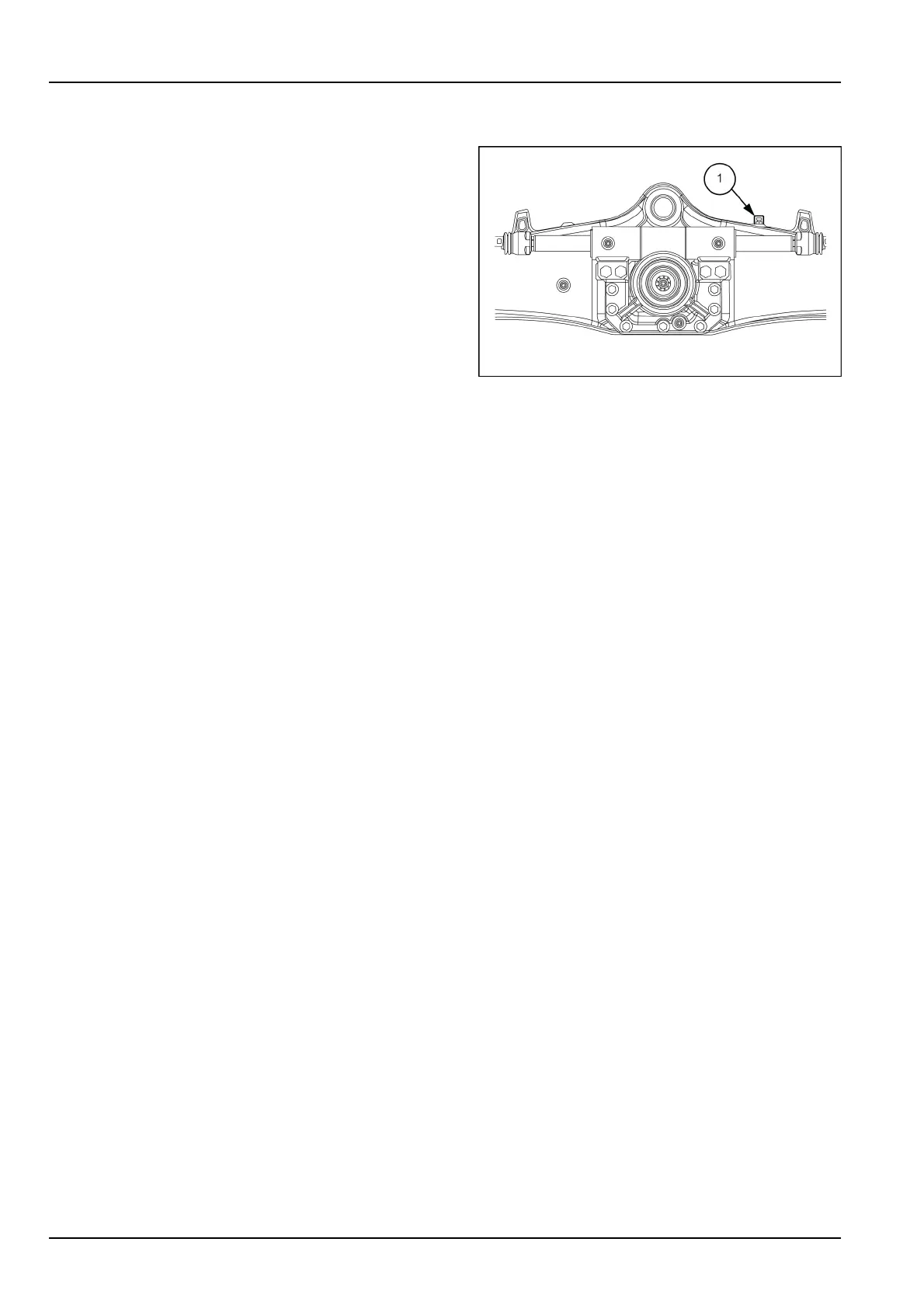

7
-
MAINTENANCE
Front
axle
breather
(4WD
Only)
-
Clean
1.
Follow
Machine
safety
position.
(Refer
Engine
-
Safety
rules
)
2.
Clean
the
area
around
the
breather
valve
(1)
.
3.
Loosen
and
remove
the
valve.
4.
Clean
the
breather
valve
(1)
with
a
detergent
solution.
NOTE:
Follow
the
instructions
for
the
detergent
solution.
5.
Carefully
dry
the
breather
valve
(1)
with
compressed
air
and
reinstall
it.
6.
Screw
in
the
breather
valve
again.
PTIL12TLB0478AB
1
7-32
153
155
