1-GENERALINFORMATION

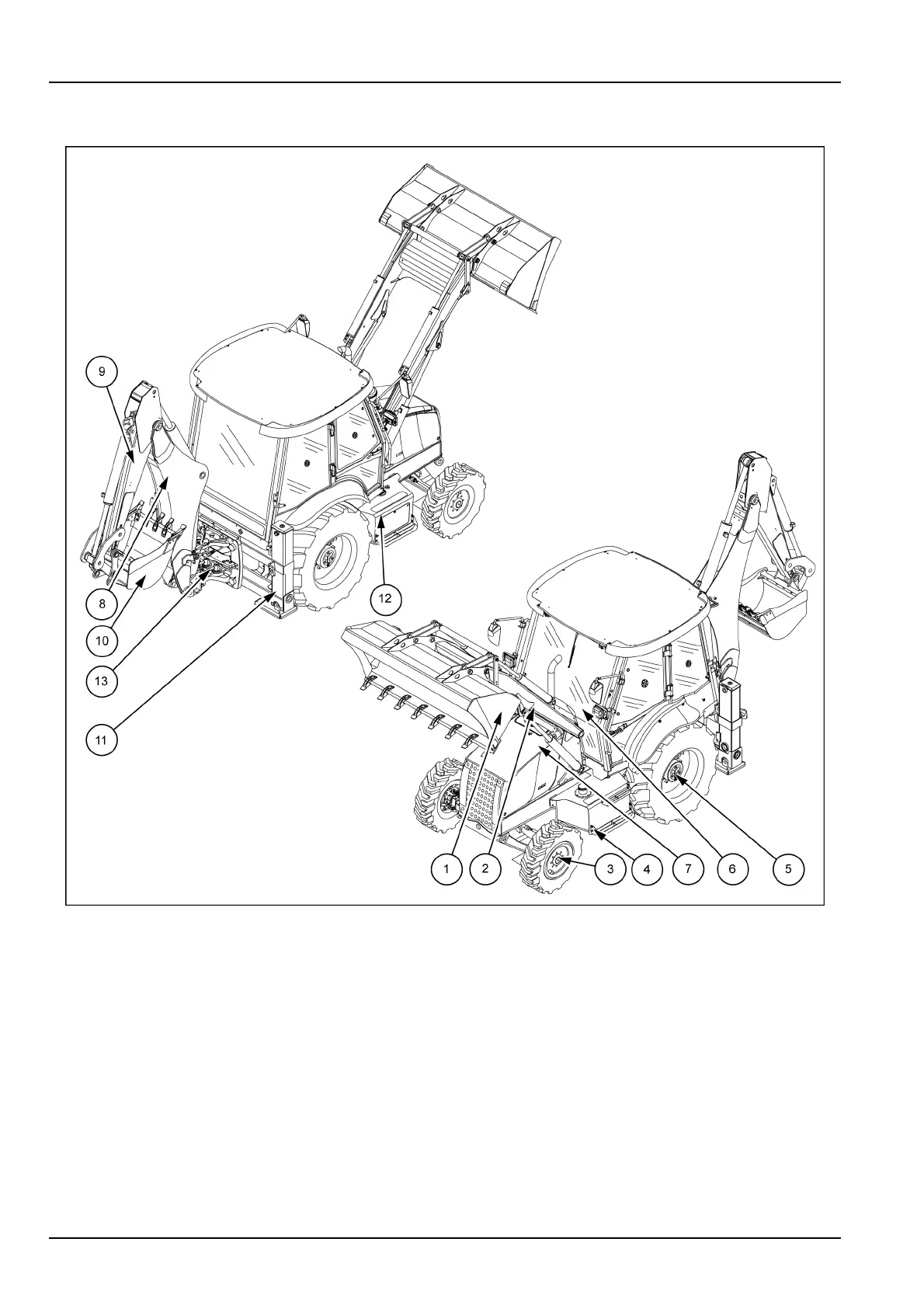

Componentidentication

PTIL14TLB0011GB1

Loaderbucket(withBDBiftted)

8.Boom

2.Loaderarm9.

Dipperarm

3.Frontwheelhub10.

Backhoebucket(withextendahoeiftted)

4.Fueltank11.

Stabilizer

Rearwheelhub12.

Hydraulictank

6.Windshield13.

Sideshiftframe

Enginehood

1-10
