1-GENERALINFORMATION

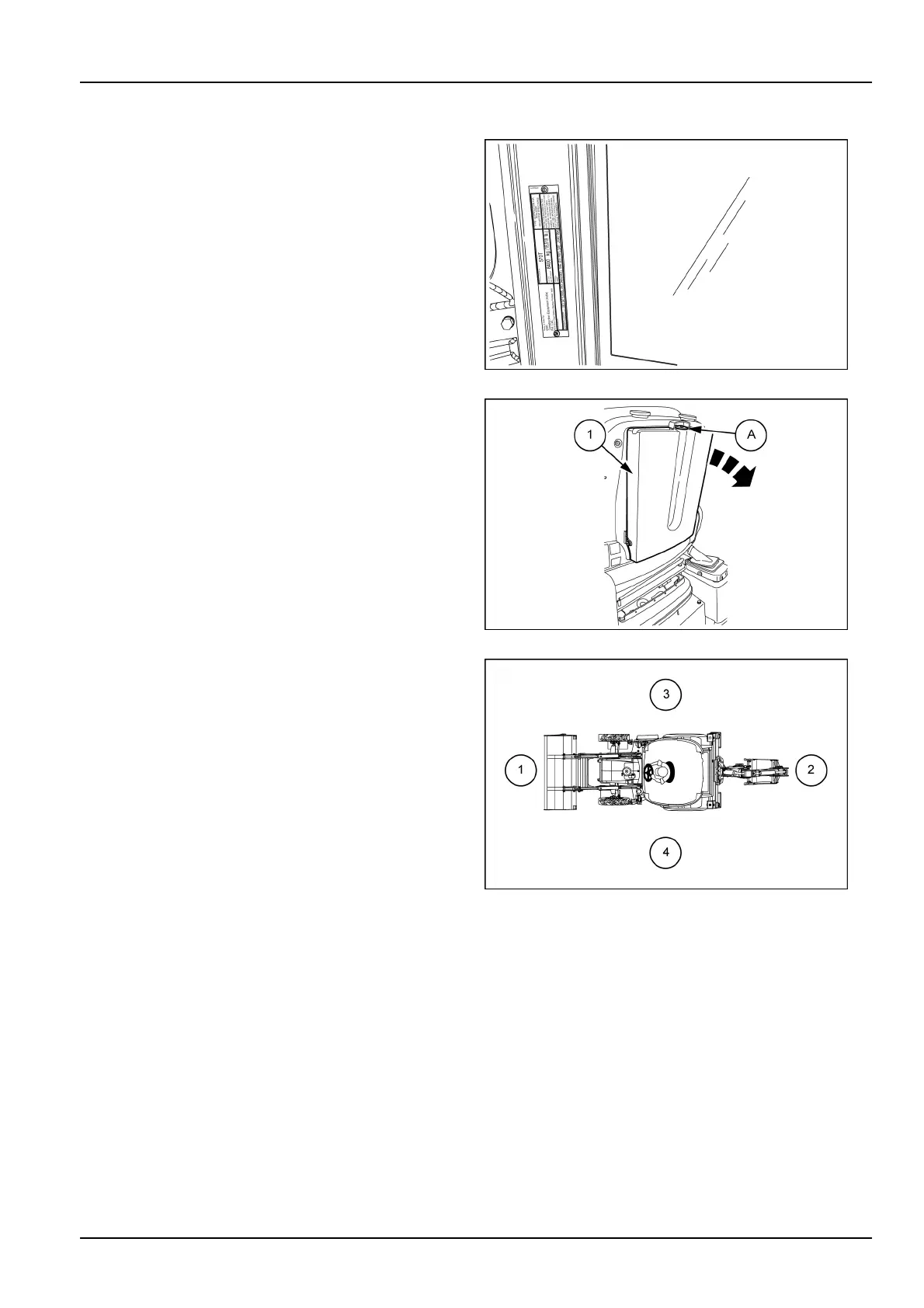

ROPSidenticationplate

TheROPSidenticationplateislocatedontherighthand

sideB-pillarofthecabin.

PTIL14TLB0052AA7

Operator'sManualstorageonthemachine

TheOperator’sManualshouldalwaysbeinthemachine.

Thereisaprovisionmadeonthebacksideoftheopera-

tor’sseattostorethemanual.Pressthelock(A)toopen

thestorageaccessdoor(1).

PTIL14TLB0049AB8

Machineorientation

Theorientationisexplainedconsideringthattheoperator

isfacingthesteeringwheel.

1.Front

2.Rear

3.Right

Left

PTIL12TLB0003AB9

1-9
