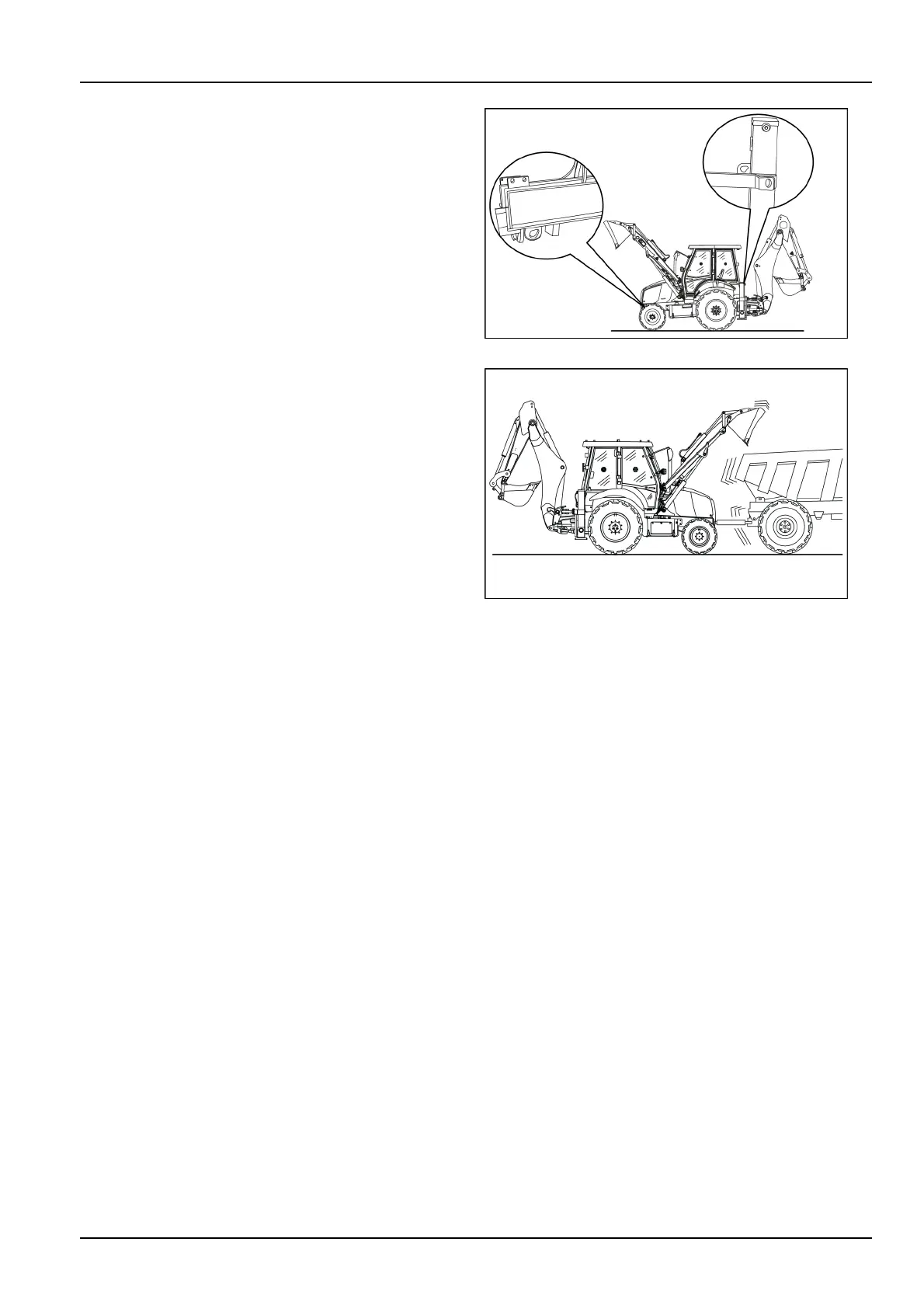

5-TRANSPORTOPERATIONS

4.Iftheengineisrunning,makesurethe4WD(isappli-

cable)isdisengaged.

NOTICE:Iftheengineisnotrunning,theforcenecessary

toturnthesteeringwheelwillbehigher.Totowthema-

chine,attachatowingbartooneofthehookingpoints

shownbythedecals.

PTIL14TLB0025AB3

5.Makesuretheattachmentsareraisedsufcientlyto

avoidanyinterferencewiththegroundorthetrailer.

6.Ifitisnotpossibletoraisetheattachmentssufciently

toavoidinterference,thentheymustberemoved.

PTIL14TLB0026AA4
