CG emotron TSA Series User Manual

CG Drives & Automation, 01-5980-01r2 Functionality 113

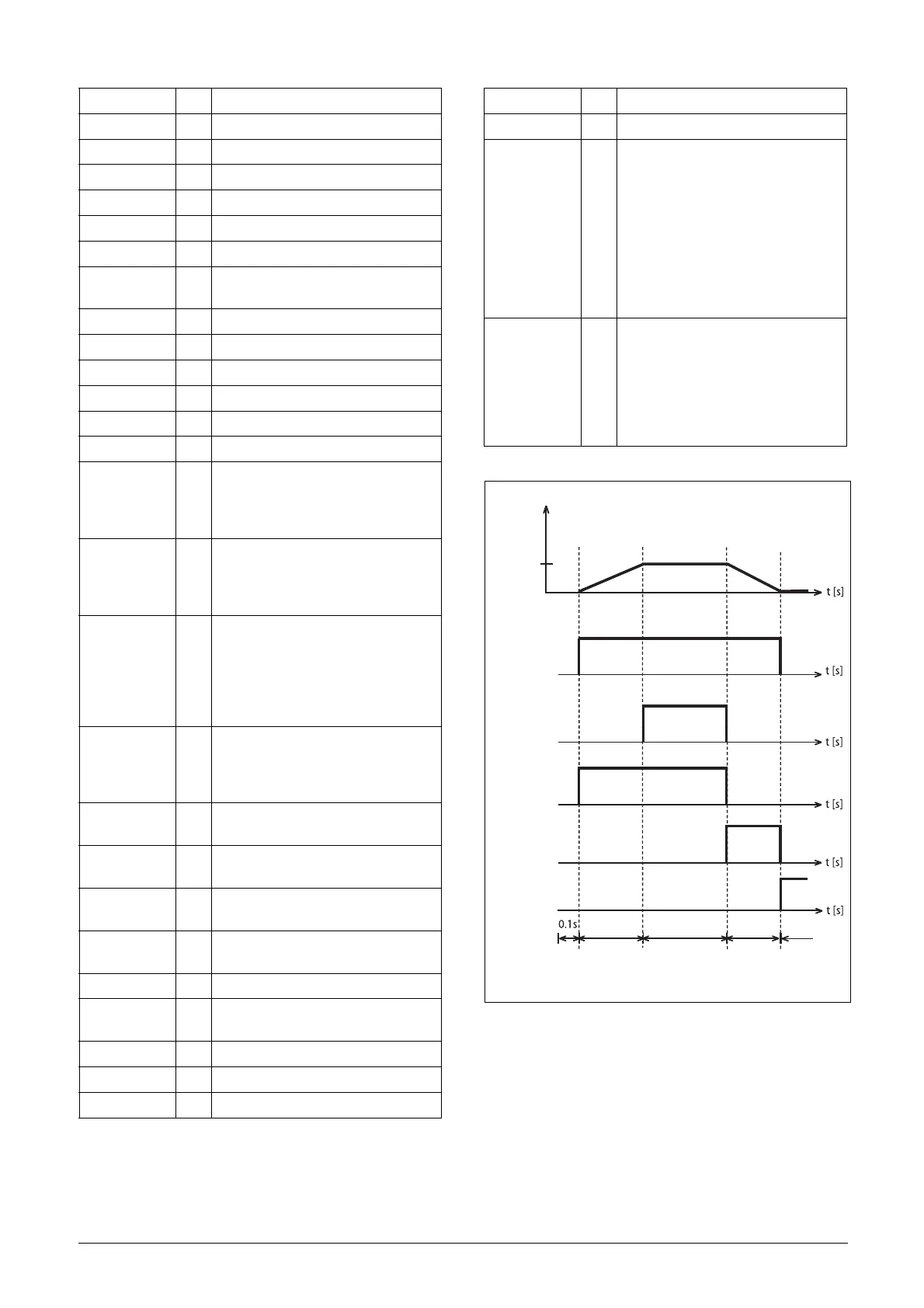

Fig. 63 Relay function example for start and braking cycle.
CTR2 61 Counter output 2.
!CTR2 62 Counter output 2 inverted.
CLK1 63 Clock output 1 (Clock logic [660]).
!CLK1 64 Clock output 1 inverted.
CLK2 65 Clock output 2 (Clock logic [660]).
!CLK2 66 Clock output 2 inverted.
Run Signal 67 Run command is active.
Loc/Rem 68
Local/Rem mode indication
Local = 1, Remote = 0
Acc 69 Motor Accelerating
Dec 70 Motor Decelerating
DigIn 1 71 Digital input 1 active
DigIn 2 72 Digital input 2 active
DigIn 3 73 Digital input 3 active
DigIn 4 74 Digital input 4 active
RunSignalFWD 75
Copy of input start command signal
Run FWD. For contactor control when
reverse current braking used, see
chapter 3.4 Example 3.
RunSignalREV 76
Copy of input start command signal
Run REV. For contactor control when
reverse current braking used with
reverse direction operation.
OperationFWD 77
Motor running in forward (+) /
clockwise direction. Used for the
forward contactor control in fwd/rev
applications.
Note! Active during jog in any
direction.
OperationREV 78
Motor running in reverse (-) / counter
clockwise direction. Used for the
reverse contactor control in fwd/rev
applications.
ManRst Trip 79
Any active trip condition that needs a
manual reset
Trip (ex LM) 81
A trip condition is active (except load
monitor)
Overvolt 90
Overvoltage alarm active (trip or
warning)
Com Error 97
Communication error active (trip or
warning)
Com Active 98 Fieldbus communication active.
Overtemp 101
Softstarter overtemperature condition
is active (trip)
PTC Alarm 103 PTC alarm active (trip or warning)
PT100 Alarm 104 PT100 alarm active (trip or warning)
I
2
t 105 I
2
t alarm active (trip or warning)
Ext Alarm 1 106 Ext Alarm 1 active
Ext Alarm 2 107 Ext Alarm 2 active
At Zero Spd 113
Zero speed detection signal
calculated by control software.
Activated only when motor standstill
has been detected after braking to
stop.
This Zero speed detection only works
if stop method Brake or Spin brake is
selected.
Note: Signal does not indicate
standstill at power on.
Supply Fault 114
Sum alarm for supply voltage.
Activated if
Multi/Phase fault,
Over/Under voltage or
phase reversal (trip or warning).
Note! Trips are latched until reset..
Bypass mode
Motor voltage
Operation
Run signal
Stop timeStart timeDelay Full voltage
RevCurrBrake
At Zero Spd
Zero Speed
