26 Connections CG Drives & Automation 01-5980-01r2
Example 3: Common Start- Stop-signals ( 2-
wire connection)
• Closing contact between terminal 18 (24 VDC) and
terminal 11(DigIn1) gives Start.
Opening the contact between terminal 18 (24 VDC)
and terminal 11(DigIn1) gives Stop.

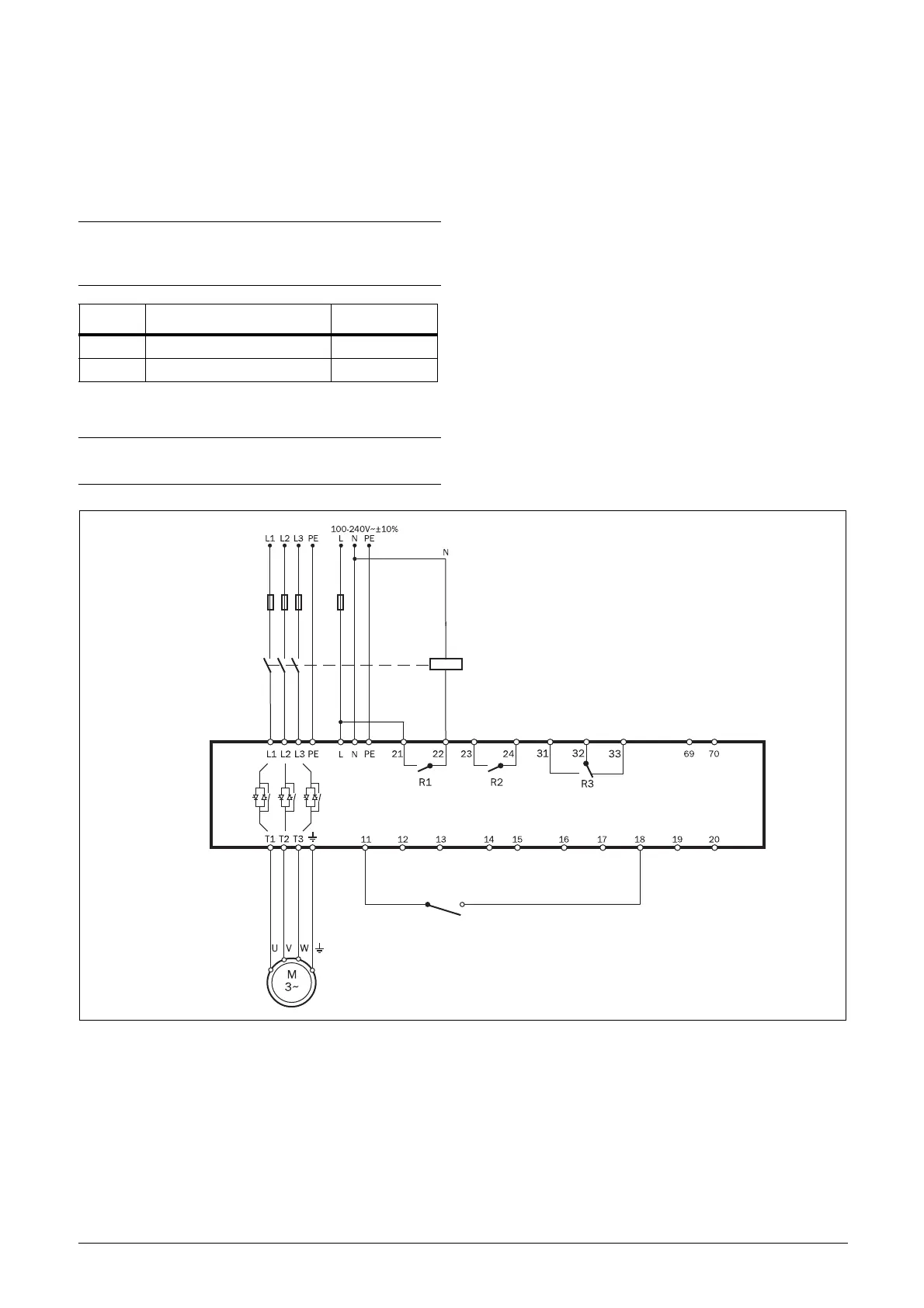

Fig. 22 Common Start- Stop-signals ( 2-wire connection) wir-
ing example, Level control.
NOTE: This alternative will not work with the factory
default parameter settings.
Change parameters according to the table below.
Menu Description Setting
21A Level/Edge Level
522 Digital input 2 (terminal 12) Off
NOTE: With this alternative the softstarter will restart
after a power failure if the contact is still closed.
DigIn 1 DigIn 2 +10 V AnIn GND DigIn 3 DigIn 4 +24 V AnOut +24 V
Relay 1 Relay 2 Relay 3
Off
Run FWD
PTC
