CG emotron TSA Series User Manual

CG Drives & Automation 01-5980-01r2 Connections 25
Example 2: Common Start- Stop-signals ( 2-
wire connection)
• Closing contact between terminal 18 (24 VDC) and
terminal 11(DigIn1) and terminal 12 (DigIn2) gives
Start.
Opening the contact between terminal 18 (24 VDC)
and terminal 11(DigIn1) and terminal 12(DigIn2) gives
Stop.

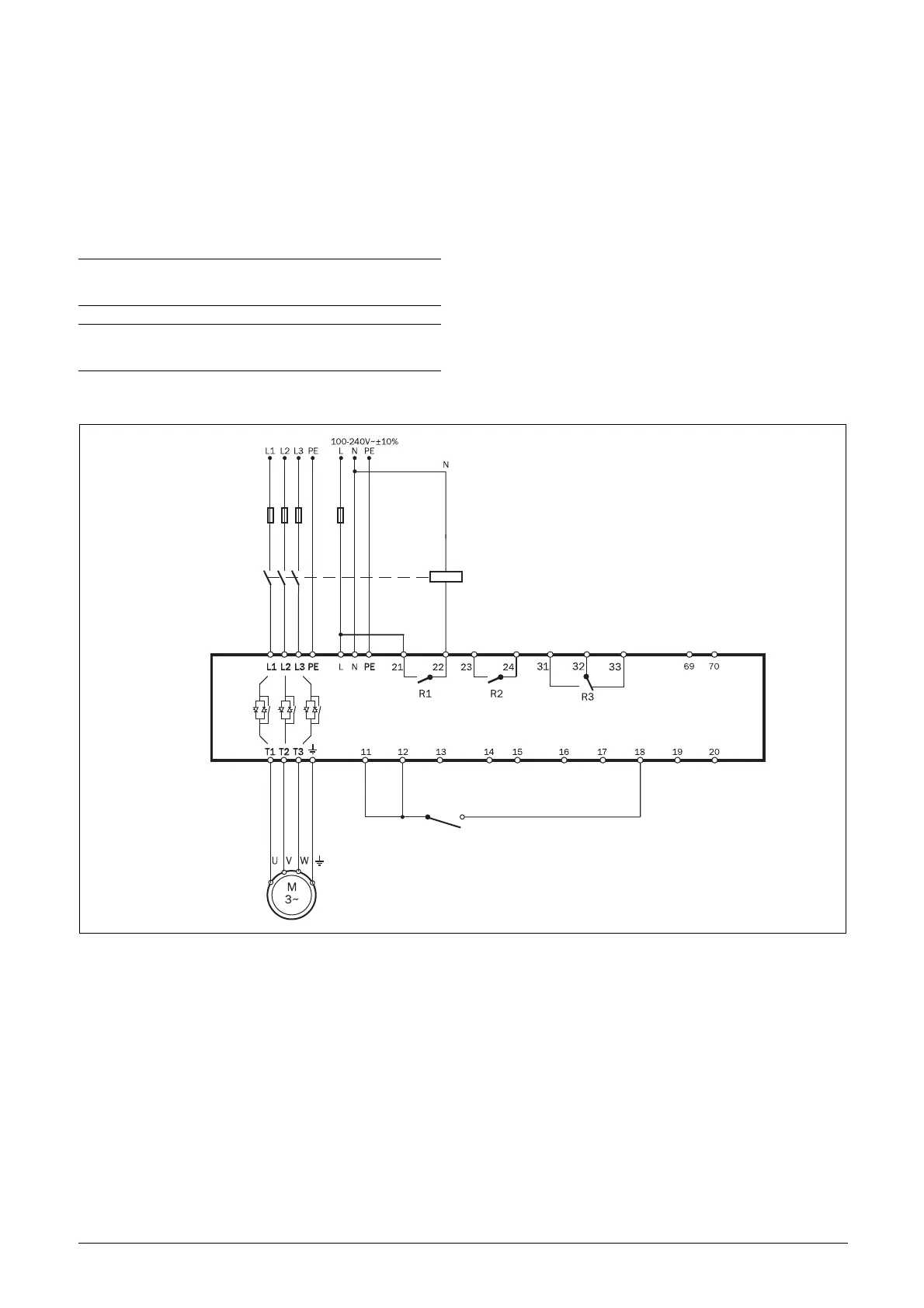

Fig. 21 Common Start- Stop-signals ( 2-wire connection) wir-
ing example.
NOTE: This alternative works with the factory default
parameter settings.
NOTE: With this alternative the softstarter will restart
after a power failure if the contact is still closed.
DigIn 1 DigIn 2 +10 V AnIn GND DigIn 3 DigIn 4 +24 V AnOut +24 V
Relay 1 Relay 2 Relay 3
Stop
Run FWD
PTC
