CHCNAV CHC i83 - Page 25

To Next Page

To Previous Page

25 CHC i83 User Manual

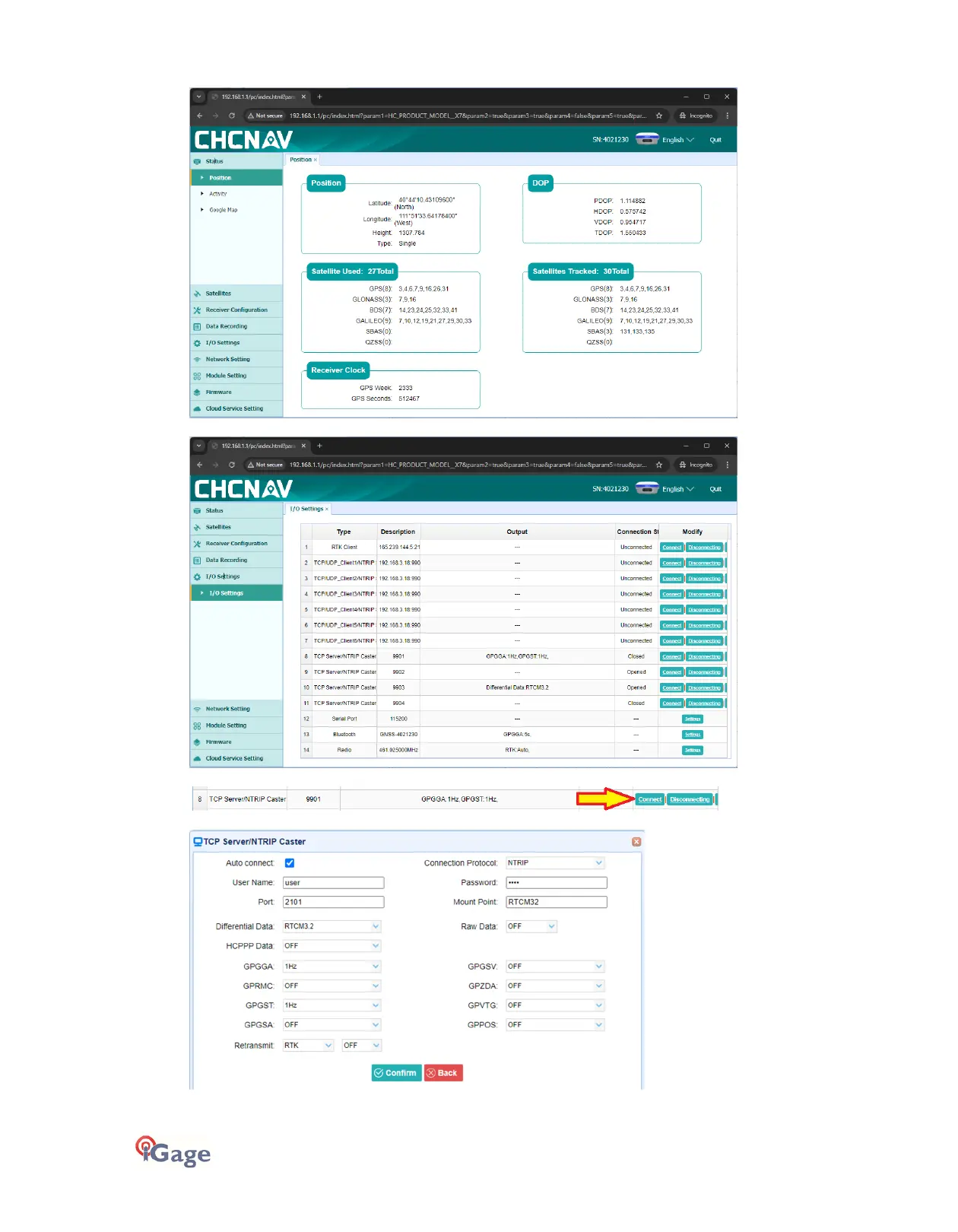

2. The receiver status screen will be displayed:

3. Click on I/O Settings:

4. Click on the

Connect

button for the first

TCP Server…

line, usually line 8:

5. The TCP Server/NTRIP Caster dialog is shown:

Configure:

Main Page
