7 CHC i83 User Manual
Model Name: i83
Part Number: A19318-980901-070002
NGS Antenna Model: CHCI83 NONE
FCC ID: SY4-A02033
About the i83 GNSS Receiver
The i83 GNSS receiver incorporates a GNSS engine, GNSS antenna, internal Rx/Tx UHF radio, Cellular modem, Bluetooth,
Wi-Fi and large internal batteries in a ruggedized case that is easy to deploy and use.
The bright LCD panel enables you to check satellite-tracking, internal battery charge status, Wi-Fi, working mode, data
logging status and basic receiver information. Bluetooth and Wi-Fi radios provide cable-free communication between
the receiver and a data collector / controller.
You can change many of the basic settings of the receiver with the two front panel buttons and LCD panel. Additional
configuration settings can be made via the web interface using Wi-Fi or with a Bluetooth connected data collector.
The UM980 GNSS engine is incredibly fast, accurate and operates under canopy.
Front Panel
The Front Panel has a bright LCD screen, two indicator LED’s and two pushbuttons.
Satellite LED
Indicates the number of satellites that the receiver is tracking:
When the receiver is searching and not tracking satellites it blinks
Blue once every 5-seconds.
Correction LED
Rover: Amber FLOAT
Rover: Green FIXED
Base: Amber Tx
Power / Enter
Fn / Next
Satellite LED (Blue)

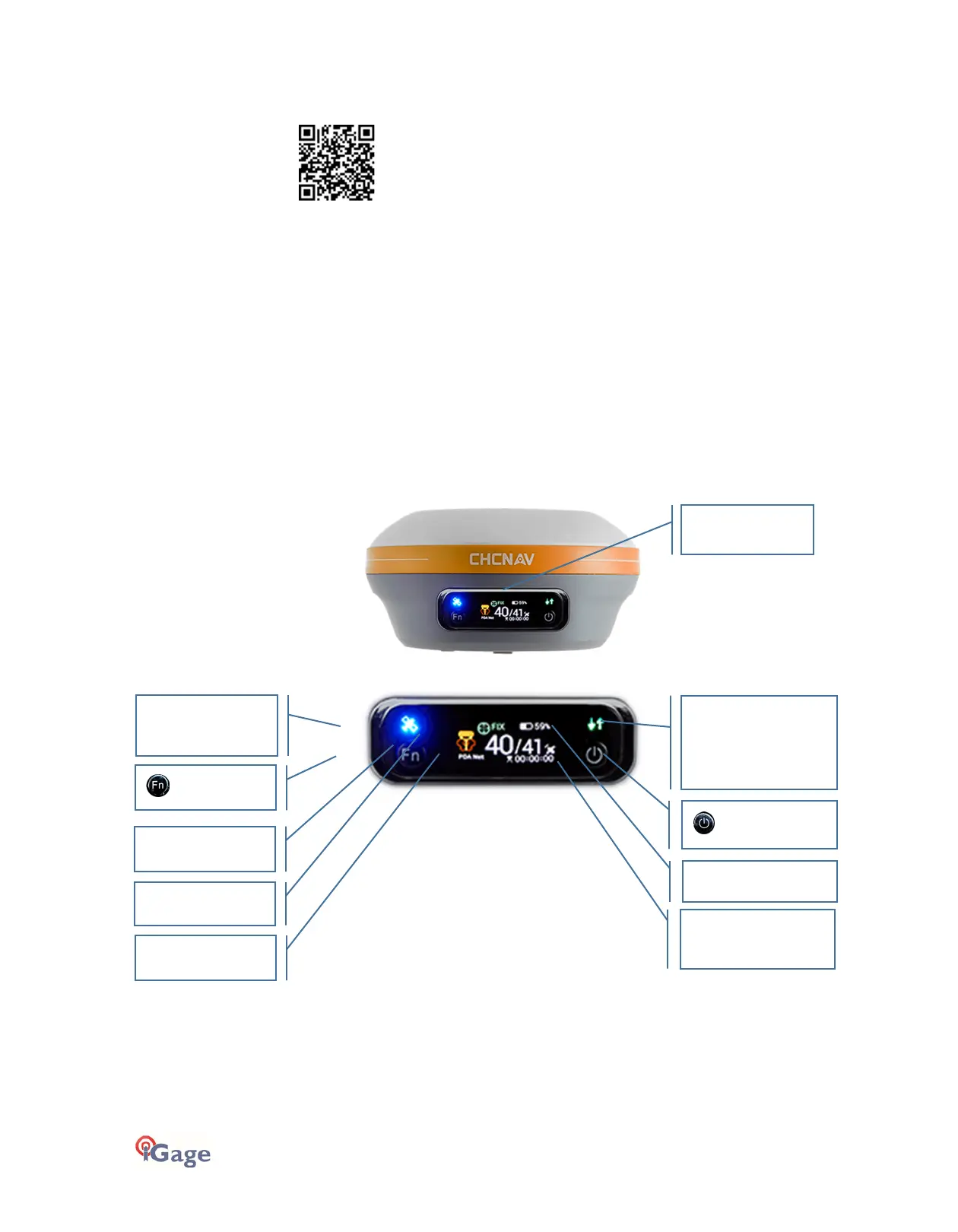

Front Panel
Mode description
Solution type
Battery charge
Current observation
recording time
SV Used/Tracking
To Next Page
