3 INSTALLATION
3.4 PC CONNECTIONS
The machine is supplied with a 2 m serial cable. If this
length is insufficient an extension can be added. The
total length should not exceed 15 meters.
3.5 ADVISE AND CARE FOR A CORRECT
INSTALLATION
The Identification plate attached to the rear panel
contains information about the serial number, the type
of machine, the necessary power supply and the
absorbed current.
Before switching the machine on be sure that all the
cables have been connected correctly and that the local
power supply corresponds to that stated on the plate.

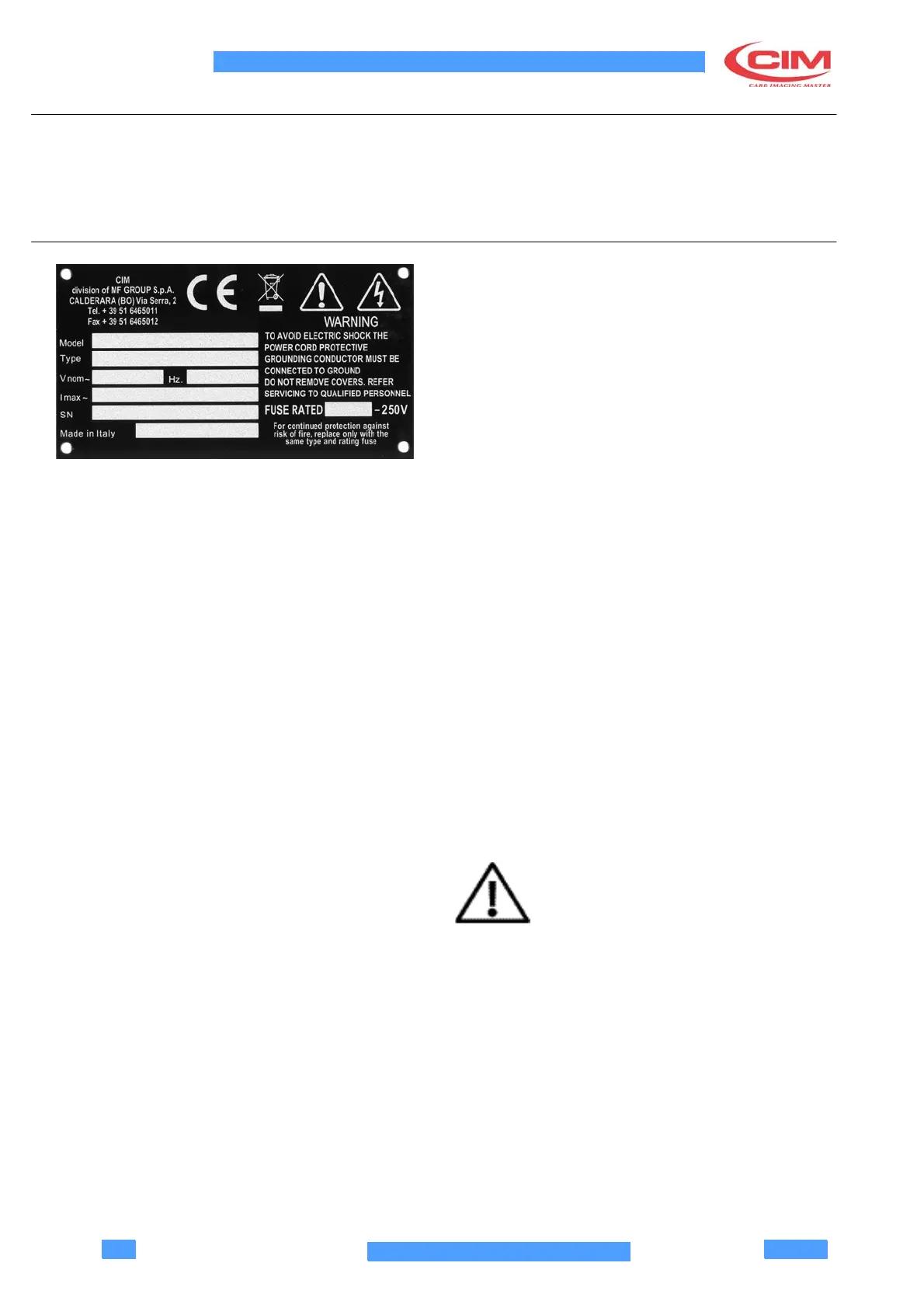

After the Trade name the plate carries the following
information:
Model: Machine model
Type: Type of machine
Vnom: Power Supply
Hz: Frequency supply
Imax: Power absorbed
SN: Serial Number
If the tension of the power supply should exceed a 20%
increase of the base tension the safety fast-blow fuse
could short out. In order to substitute it take a flat blade
screw driver, remove the power plug and place the
blade in the notch at the bottom of the plug entrance just
above the signed area for the fuse. Gently lever the
Fuse Block until it can be removed by hand and placed
only with fuse of the same type and rated.
ATTENTION! USE ONLY FUSES OF
THE SAME TYPE AND NOMINAL
POWER FOR REPLACEMENT.
In order to guarantee a correct functioning of the
machine and offer a valid safety level to the operator the
machine must be earthed. Please ensure that the
machine is connected to a power supply that has a good
earthing and that the computer is also connected to the
same line.
