SERVICE MANUAL –Post eVolve Smart
7 - CHARGE POINT SLAVE DEVICES
CIRCONTROL, S.A. – Innovació, 3 – 08232 – Viladecavalls (Barcelona)
Tel.: +34 937 362 940 – Fax: +34 937 362 941 34
Web: www.circontrol.com – E-mail: circontrol@circontrol.com
7.4.2.2 WIRING CONNECTION

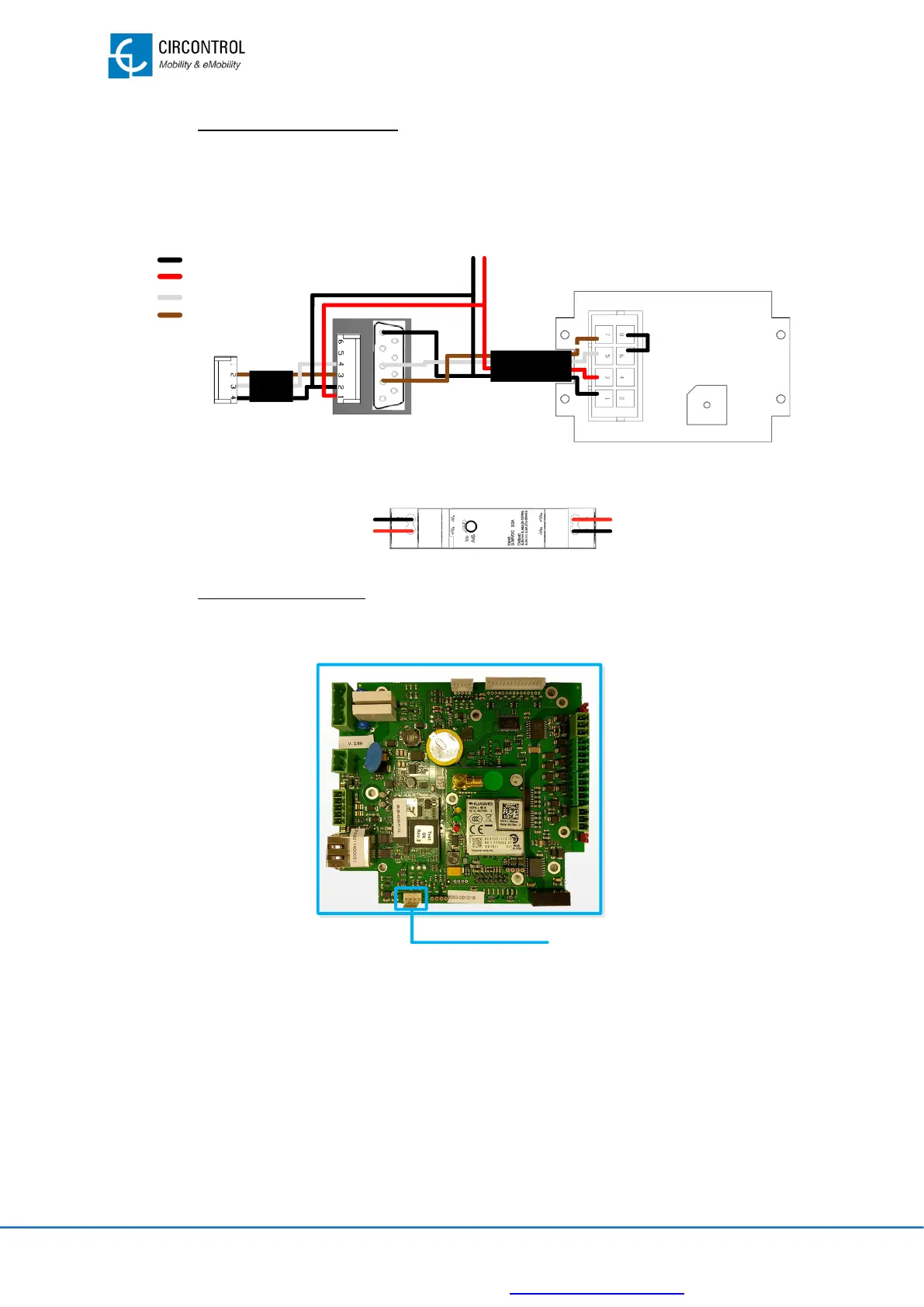

Picture below shows how to connect the RFID LEGIC reader to the CCL1-MINI. Please,
refer to “7.4.2.3” section for more details.
Picture below shows how to connect the RFID LEGIC reader to the power supply.
7.4.2.3 CCL1-MINI WIRING
Following image shows a detailed schematic of the connections in the CCL1-MINI
PCB. Please, refer to “ TECHNICAL DATA” section for more details.
