SERVICE MANUAL –Post eVolve Smart
9 - OPTIONAL DEVICES
CIRCONTROL, S.A. – Innovació, 3 – 08232 – Viladecavalls (Barcelona)
Tel.: +34 937 362 940 – Fax: +34 937 362 941 56
Web: www.circontrol.com – E-mail: circontrol@circontrol.com

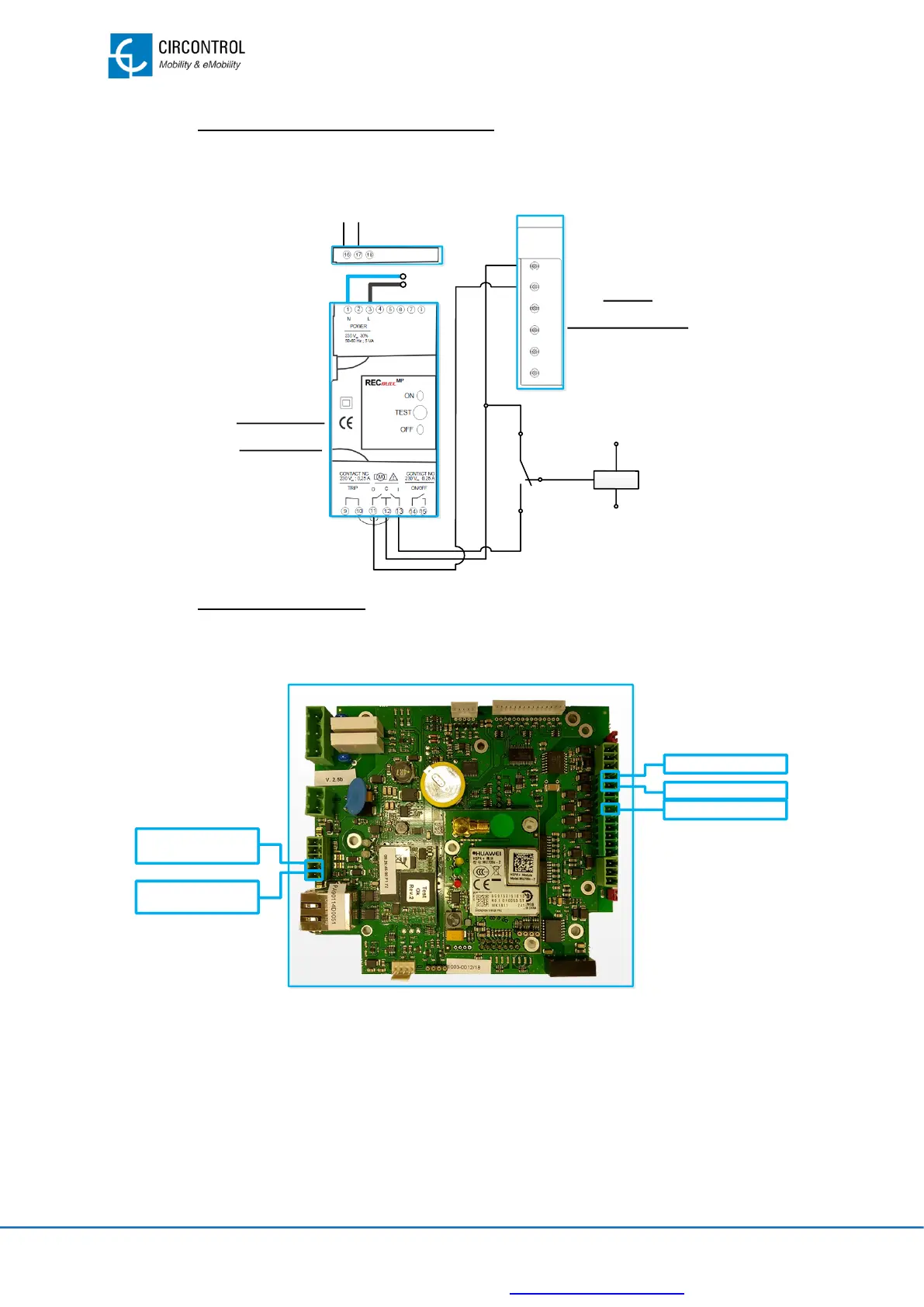

9.5.2.2 CONTROL WIRING CONNECTION
Following image shows a detailed schematic of the connections to the CCL1-MINI.
Please, refer to “ TECHNICAL DATA” section for more details.
A1
A2
15
16
18
K08.4/7
A1
A2
Q03.1
LKA
COM.
MCB self-
reclosing
Earth
leakage relay
9.5.2.3 CCL1-MINI WIRING
Following image shows a detailed schematic of the connections in the CCL1-MINI PCB.
Please, refer to “ TECHNICAL DATA” section for more details.
K08.7 (PLUG A)
K08.4 (PLUG B)
LKA (PLUG A)
LKB (PLUG B)
COM.
