Cisco Catalyst 6500 Series Installation Guide

Chapter 1 Product Overview
Multilayer Switch Module (WS-X6302-MSM)
1-56
Catalyst 6500 Series Switch Module Installation Guide
78-15725-02
The MSM front panel features are shown in Figure 1-40 and are described in
Table 1-11.

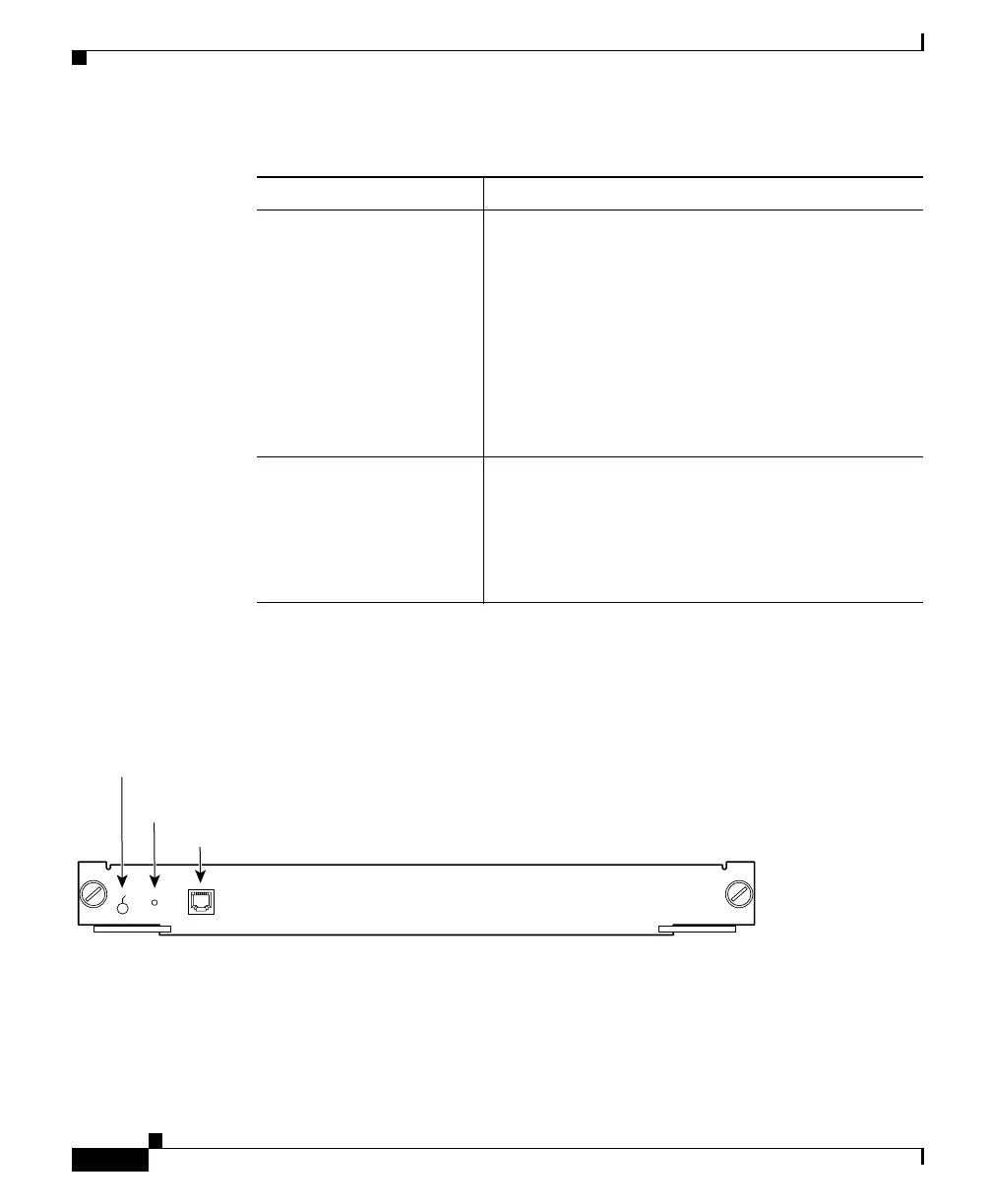

Figure 1-40 Multilayer Switch Module (WS-X6302-MSM)
The STATUS LED shows the results of the initialization and its dialog with the
supervisor engine. Table 1-11 describes the LED operation.
For detailed information on the supervisor engine LEDs, refer to the
Catalyst 6500 Series Switch Installation Guide.
Layer 3-related protocols
• IGMP v1 and v2
• IGMP snooping
• Cisco Group Multicast Protocol (CGMP) server
support
• Full ICMP support
• Gateway Discovery Protocol (GDP)
• Internet Control Message Protocol (ICMP)
Router Discovery Protocol (IRDP)
Enhanced services
• Integrated routing and bridging (IRB)
• Standard Domain Naming System (DNS)
support
• Dynamic Host Configuration Protocol (DHCP)
and Boot Protocol (BOOTP) relay
Table 1-10 Cisco IOS Features for the Multilayer Switch Module (continued)
Feature Description
17938
MULTILAYER SWITCH MODULE
STA
TU
S
WS-X6302-MSM
CONSOLE
-PORT
MODE
Console port
CONSOLE PORT
MODE switch
STATUS LED
