Serial interface
Computer
Video
system
USB Micro USB
USB to micro USB cable

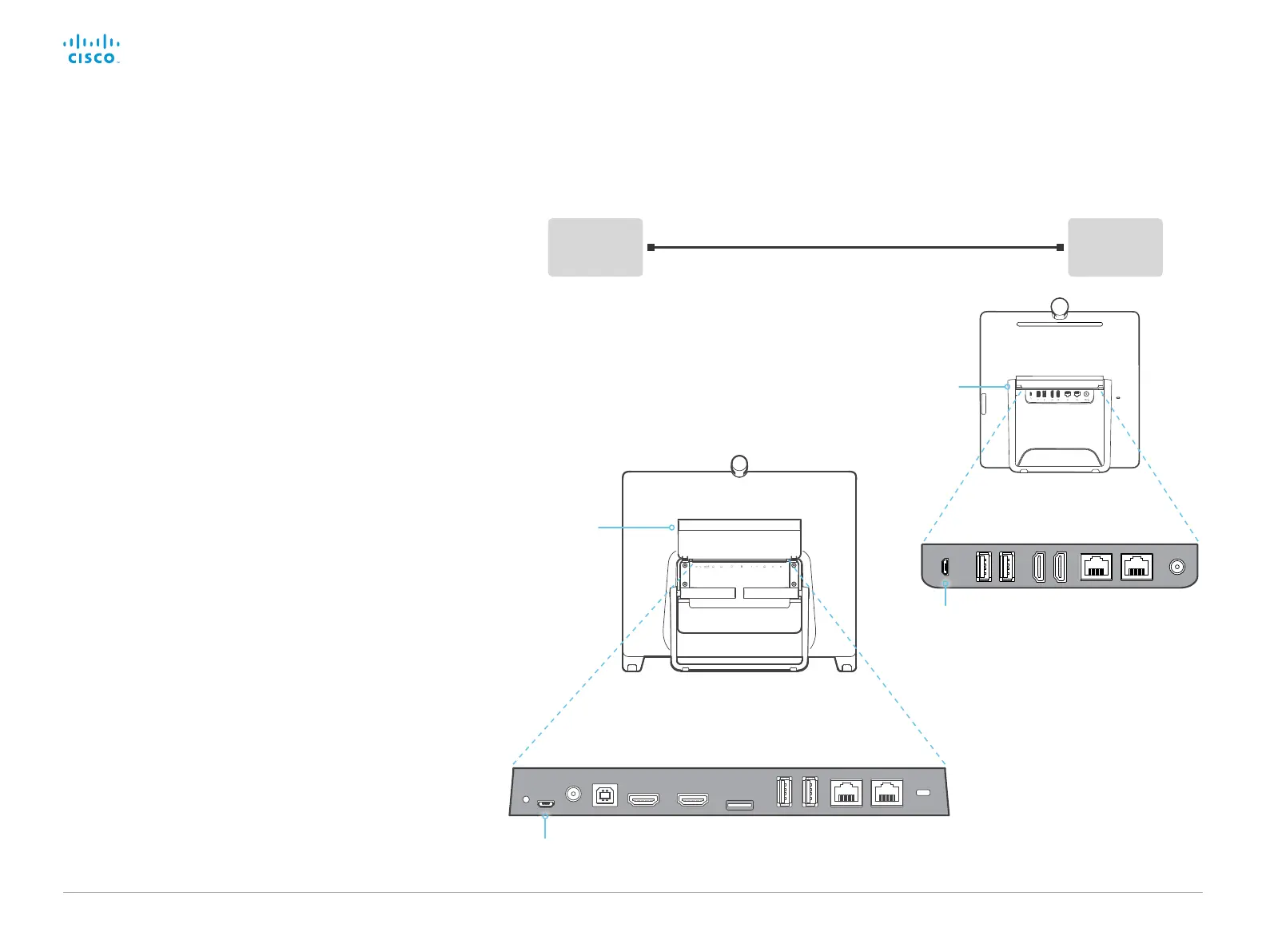

Flip the
connector cover
up to uncover the
connector panel.
Micro USB
connector
DX80
Micro USB
connector
Flip the connector
cover up to uncover
the connector panel.
DX70
Use the micro USB connector for direct communication with
the video system.
You need a micro USB to USB cable. If the
computer doesn’t auto-install a serial port driver, you need to
install a serial port driver on the computer manually.
Use a terminal emulator (SSH client) to connect to the serial
interface. For the most common computer types (PC, MAC) and
operating systems, PuTTY or Tera Term will work.
The serial connection can be used without an IP-address, DNS, or
a network.
Parameters:
• Baud rate: 11520 0 bps
• Data bits: 8
• Parity: None
• Stop bit: 1
• Hardware flow control: Off
Video system settings
Serial communication is enabled by default. Use the following
configuration to change the behavior:
SerialPort > Mode
For security reasons, you are asked to sign in before using the
serial interface. Use the following setting to change the behavior:
SerialPort > LoginRequired
Restart the video system when you have made changes to the
serial port settings.
If your video system is provisioned by CUCM, the serial port
settings should be configured from CUCM.
