4023074 Rev B Model D9858 Advanced Receiver Transcoder Installation and Operation Guide 4-39
Setup Menu: Services: Video, Continued
Refer to the following table for the conversions performed by the transcoder based
on your selection, and the effect on the picture displayed by the transcoder in each
case (without Auto AFD).

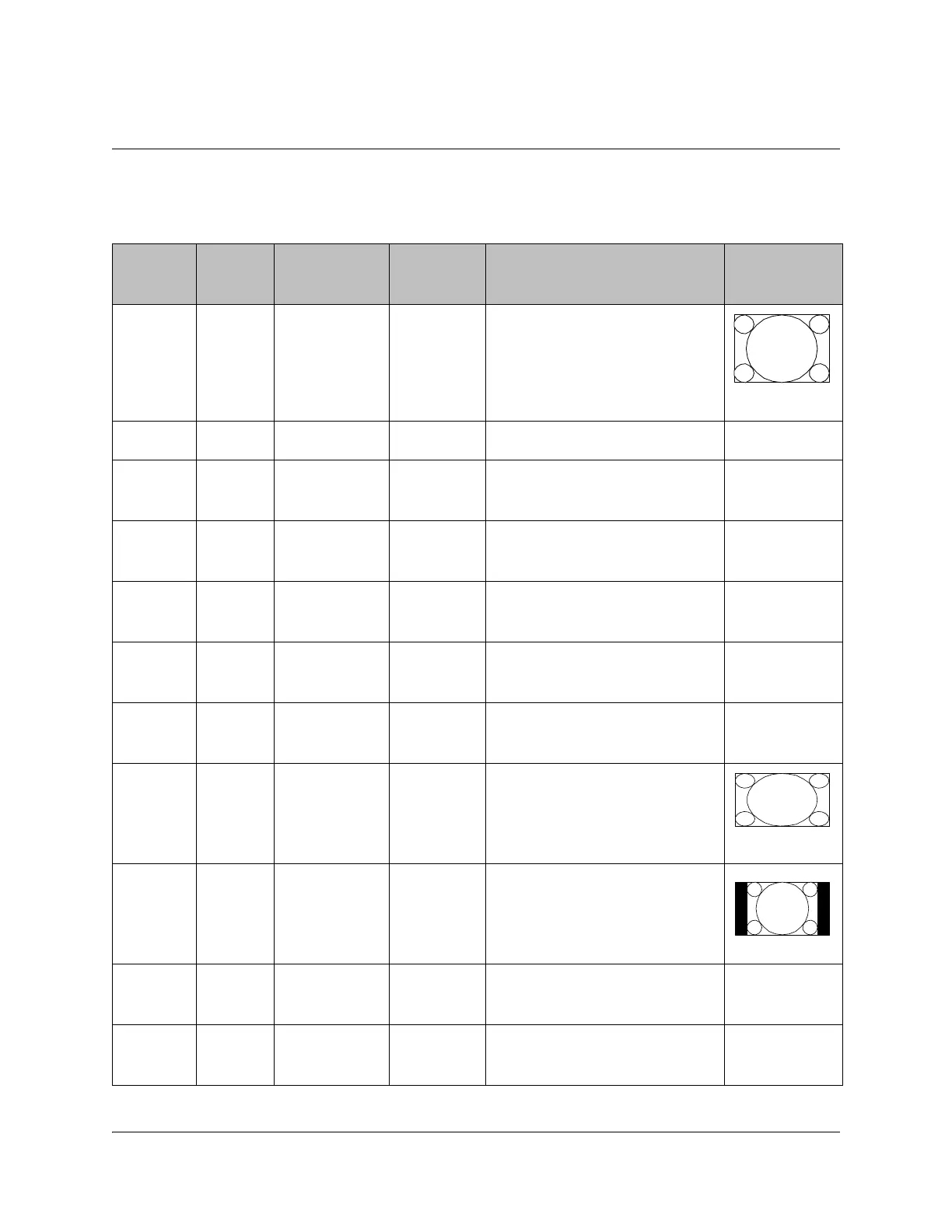

Stream TV A/R Conversion Act Conv Description Image
4:3 4:3 None None Normal Picture
4:3 4:3 Auto None No conversion
4:3 4:3 4:3 L/B None Conversion is not possible.
Normal picture.
4:3 4:3 4:3 F/H None Conversion is not possible.
Normal picture.
4:3 4:3 4:3 P/B None Conversion is not possible.
Normal picture.
4:3 4:3 14:9 None Conversion is not possible.
Normal picture.
4:3 4:3 16:9 F/W None Conversion is not possible.
Normal picture.
4:3 16:9 None None Picture is short & fat.
4:3 16:9 Auto 4:3 P/B Uses 4:3 P/B.
4:3 16:9 4:3 L/B None Conversion is not possible.
Picture appears short and fat.
4:3 16:9 4:3 F/H None Conversion is not possible.
Picture appears short and fat.
4:3
4:3 Stretch
4:3 PB
