Lifting and rigging
P/N 63674, Rev. 9 Page 23
Use caution and follow all site rigging procedures such as a lift plan,
never allowing anyone under the load, etc. Falling or uncontrolled
swinging of machinery can cause serious injury or death to the operator
and bystanders.
The CM6200 has lifting points for individual sub-assemblies
and for the completely assembled machine. The lifting points
are labeled with the label shown in Figure 3-1.
Lift the machine only by the hoist rings marked by
Figure 3-1.
The sub-assemblies can be disassembled and individually
lifted by the labeled lifting eyes on each sub-assembly.
Do not lift the assembled machine by the lifting eyes or hoist rings on
the counterweight or the machining arm! Only lift the assembled
machine by the four hoist rings shown in Figure 3-2 and Figure 3-3.
Lifting the assembled machine by other lifting points can cause the
machine to fall from the rigging. Falling machinery can cause serious
injury or death.

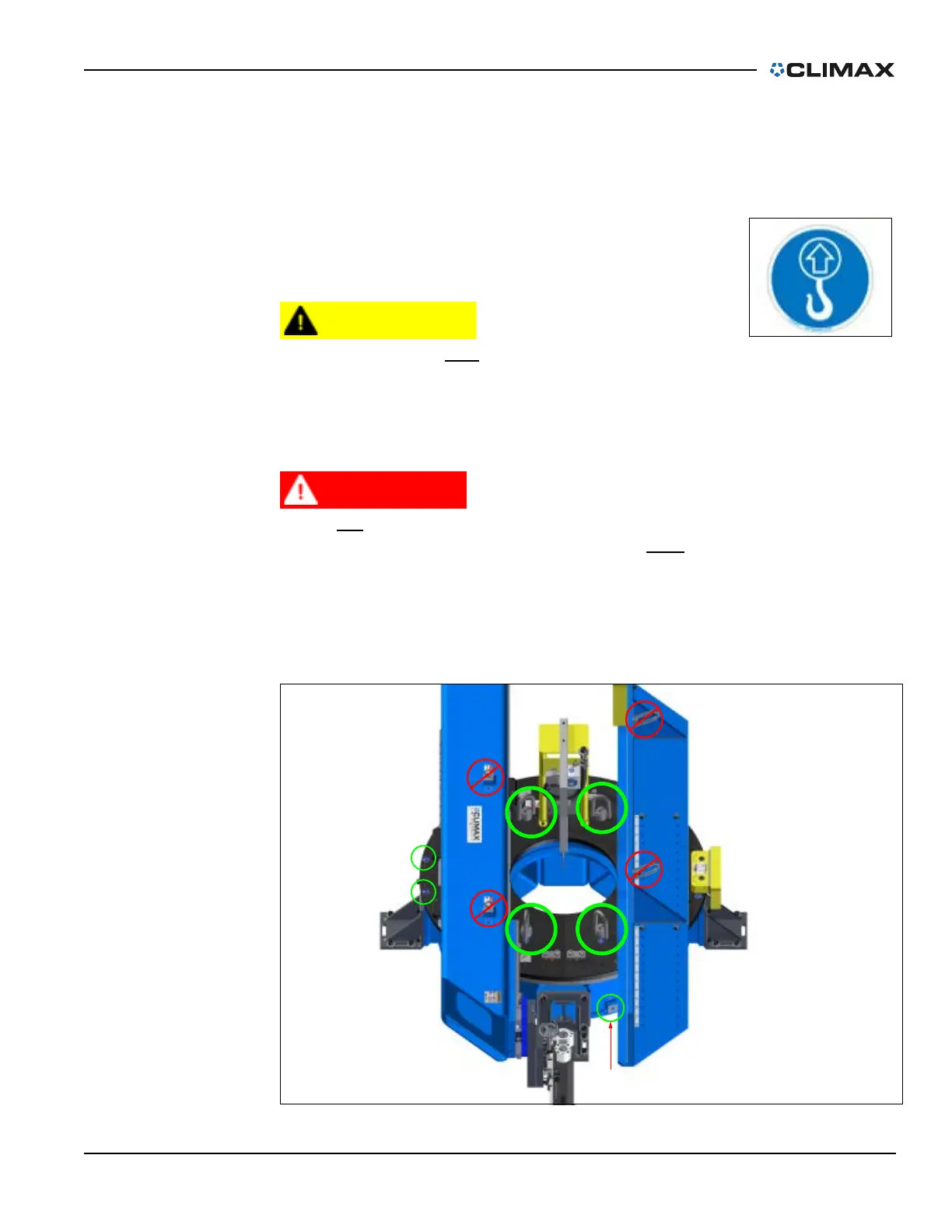

FIGURE 3-2. HOIST RINGS FOR ASSEMBLED MACHINE LIFTING
FIGURE 3-1. LIFTING EYE
IDENTIFICATION LABEL
