Mounting machine to workpiece
P/N 63674, Rev. 9 Page 45

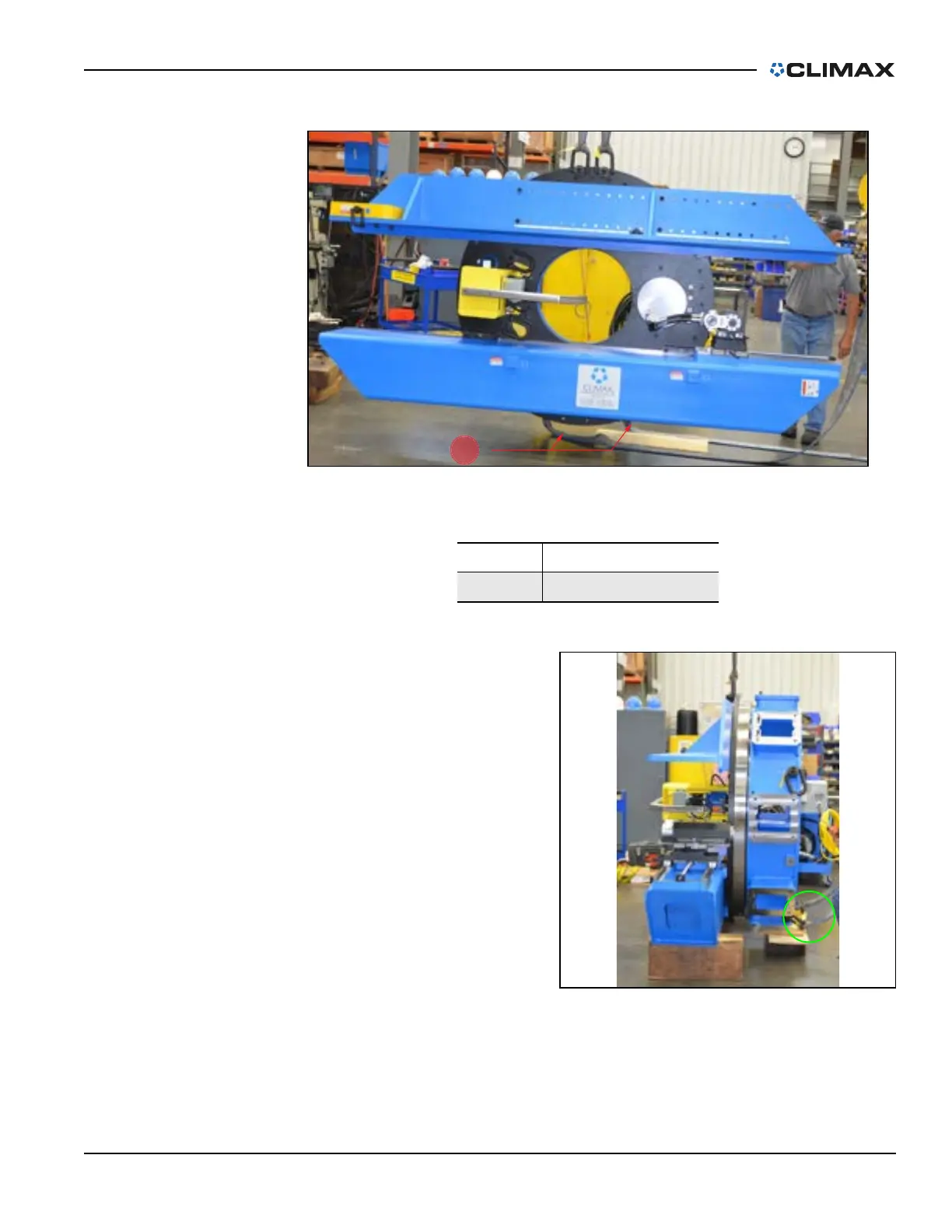

FIGURE 3-29. CM6200 IN VERTICAL POSITION
5. If using two cranes, detach the lower straps seen in Figure 3-29.
6. Raise the machine high
enough to place blocks
under the turning arm and
chuck body.
7. Lower the machine onto the
blocks (see Figure 3-30). If
using two cranes, re-attach
the straps to the bottom lift-
ing eyes.
TABLE 3-10. VERTICAL CM6200 IDENTIFICATION
Number Component
1 Lower straps
FIGURE 3-30. VERTICAL CM6200 ON BLOCKS WITH STRAPS
RE-ATTACHED
