Changing the set-up options
11-2 Outback HF Radiophone
The control head link
The control head link is located on the control head printed
circuit board (PCB) assembly (part number 08-04666-001).
The PCB is located inside the control head. The link is located
on a row of four vertically mounted pins on the PCB (figure
11.1), immediately behind the number 7 button.
There are two links fitted to the PCB, the fixed link which must
always remain across pins 2. If this link is removed, the
Radiophone will not operate correctly.
The control head link is fitted across pins E and must be moved
to pins 1 when completing the set-up options:
2 remains permanently in this position
1 used for set-up options
F not used
E control head link.
Control head link
2
1
F
E
P1
Control head
Fixed link

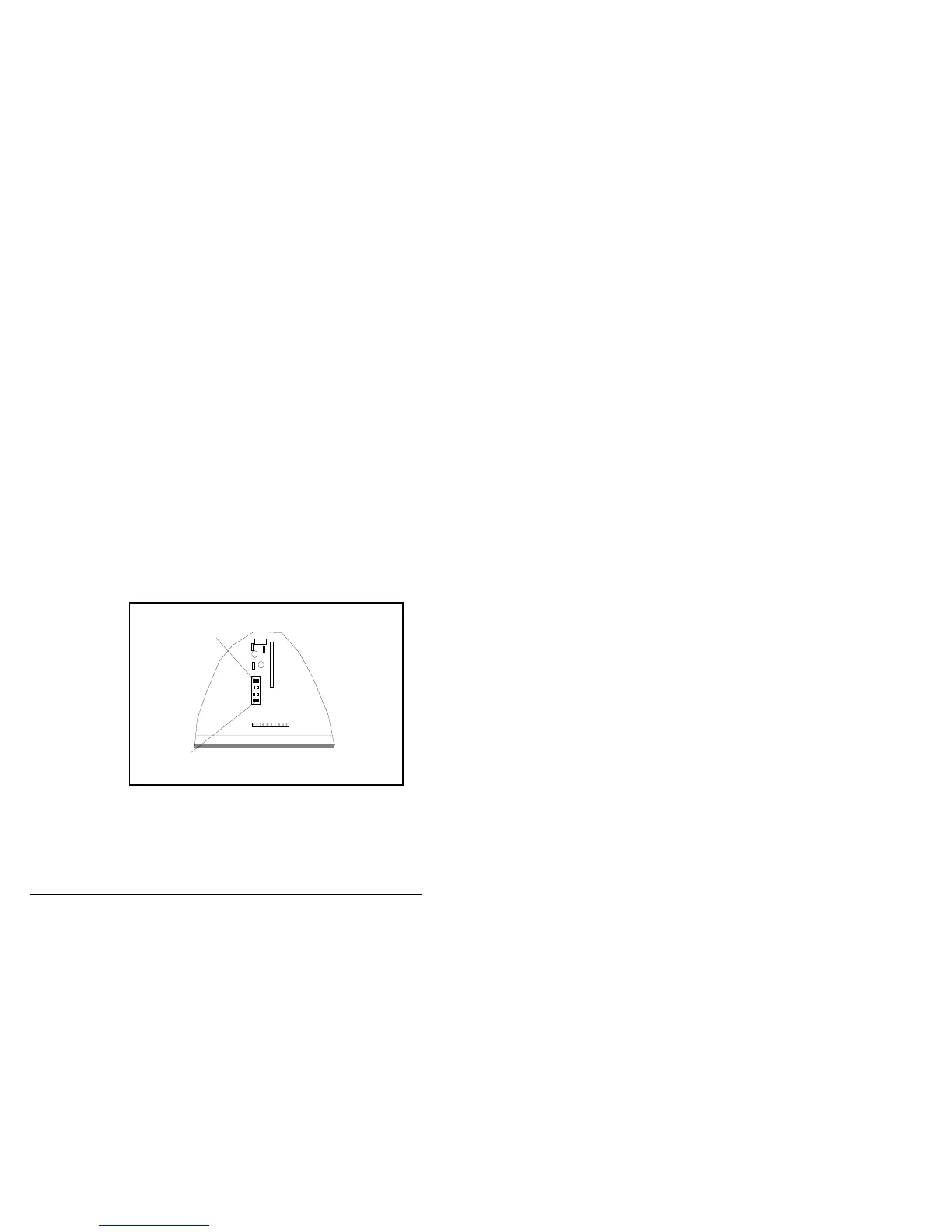

Figure 11.1: The control head link
