Installation
3-2 Outback HF Radiophone
Mounting the transceiver
The transceiver must be mounted in a position that will
not cause injury to occupants in the event of a motor
vehicle accident.
Mount the transceiver and control head in a position
that allows:
• easy access to the control panel
• a free flow of air through the rear cooling fins.
The transceiver mounting cradle is supplied with 6 metres of
DC power cable. You must determine the mounting position
to best suit your needs.
Step Action
1.
The cradle can support the transceiver from above or below
permitting roof or floor mounting.
Secure the mounting cradle into position with the rotating
cam catches to the front. Ensure there is sufficient space at
the rear of the cradle to take the transceiver heat sink and
connectors.
2.

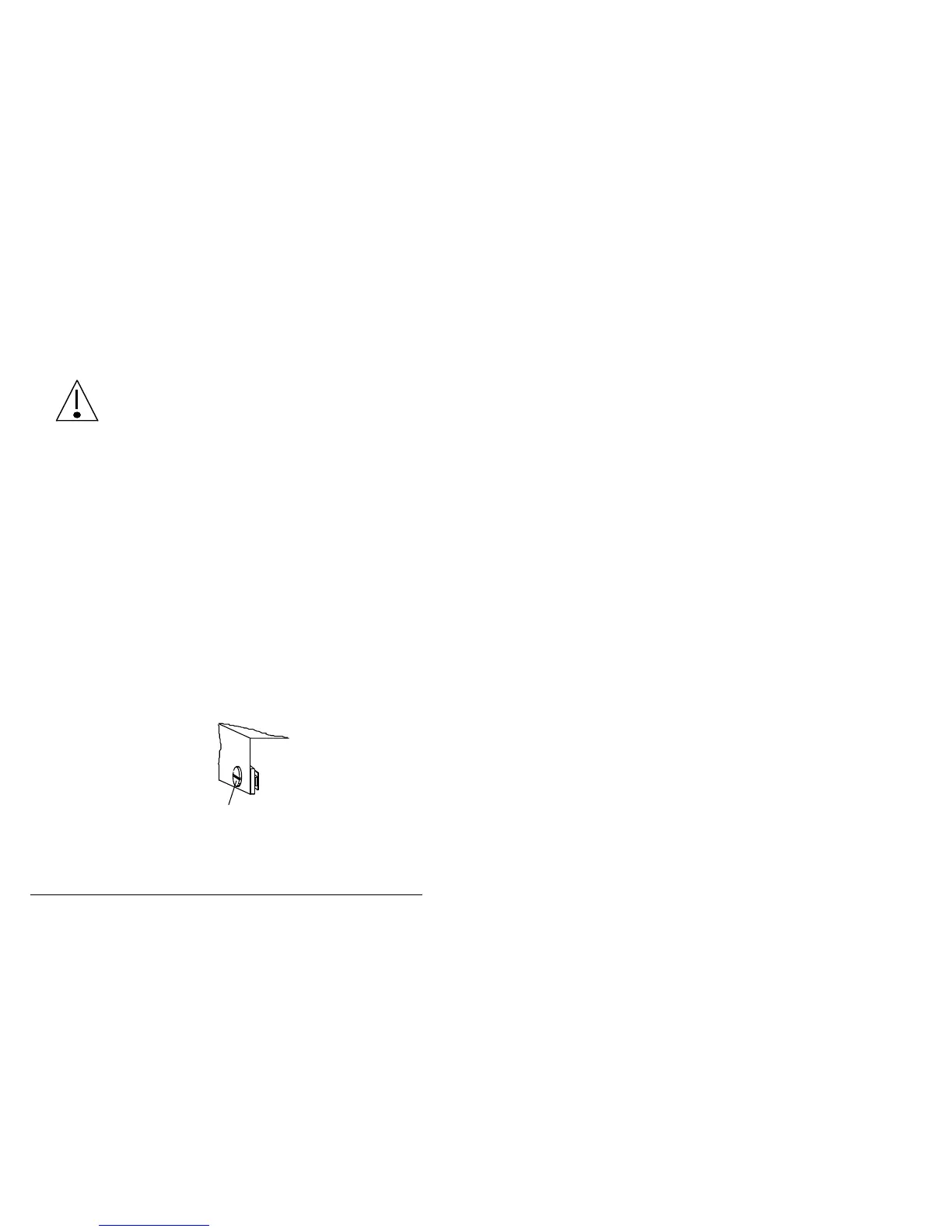

Align both cam catch slots with the T-section slides.
Cam catch
(Slot in line
with T slide)
Front section
F
