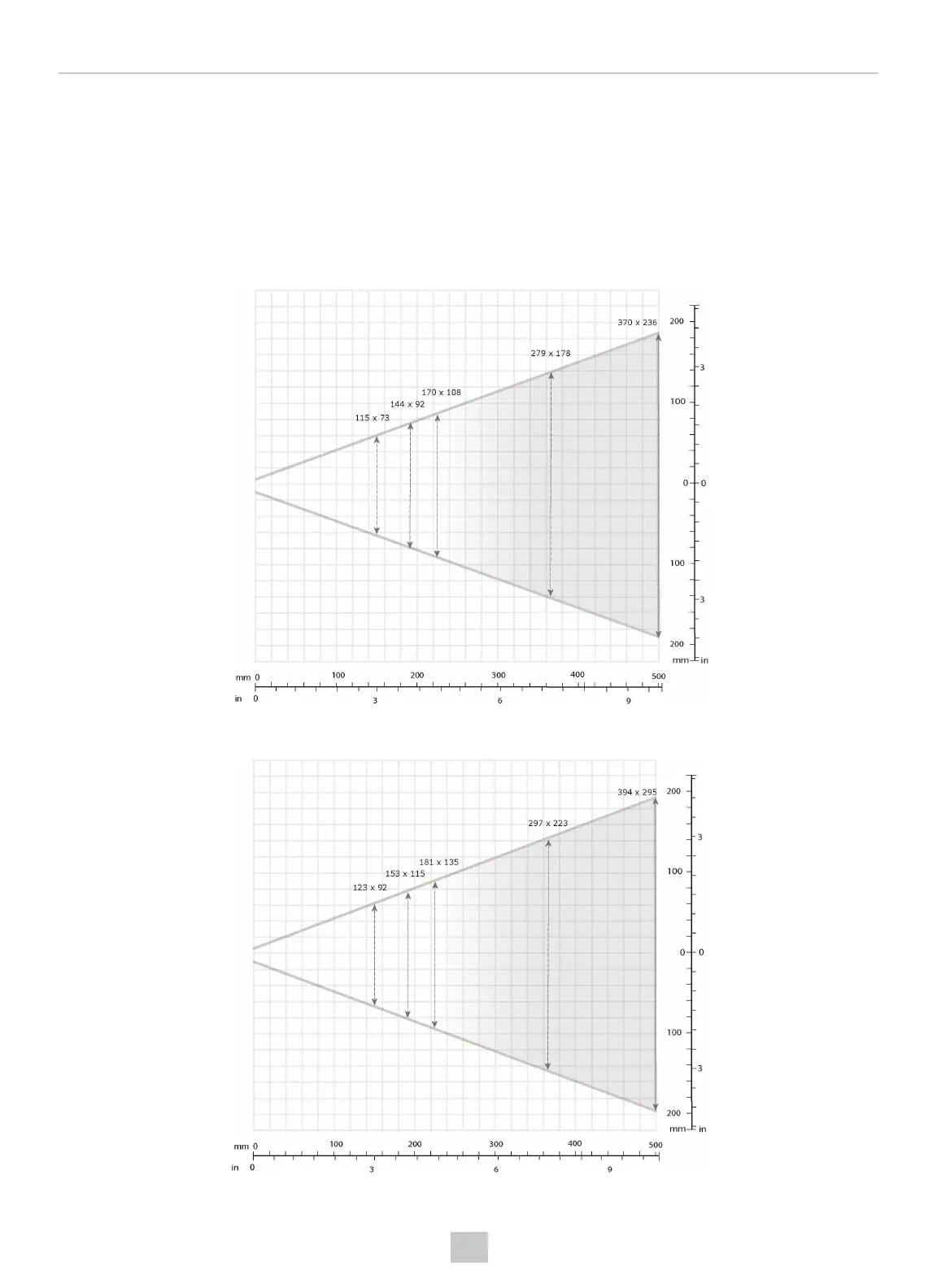

The following maps show the field of view (FoV) of the DataMan 150 or DataMan 260 readers with a 6.2 mm lens.
The horizontal and vertical field of view is shown for working distances of 150 mm, 190 mm, 225 mm, 375 mm and 500
mm.
DM150 or DM260 + 6.2 mm Lens
DM152 or DM262 + 6.2 mm Lens
128
Optics and Lighting
