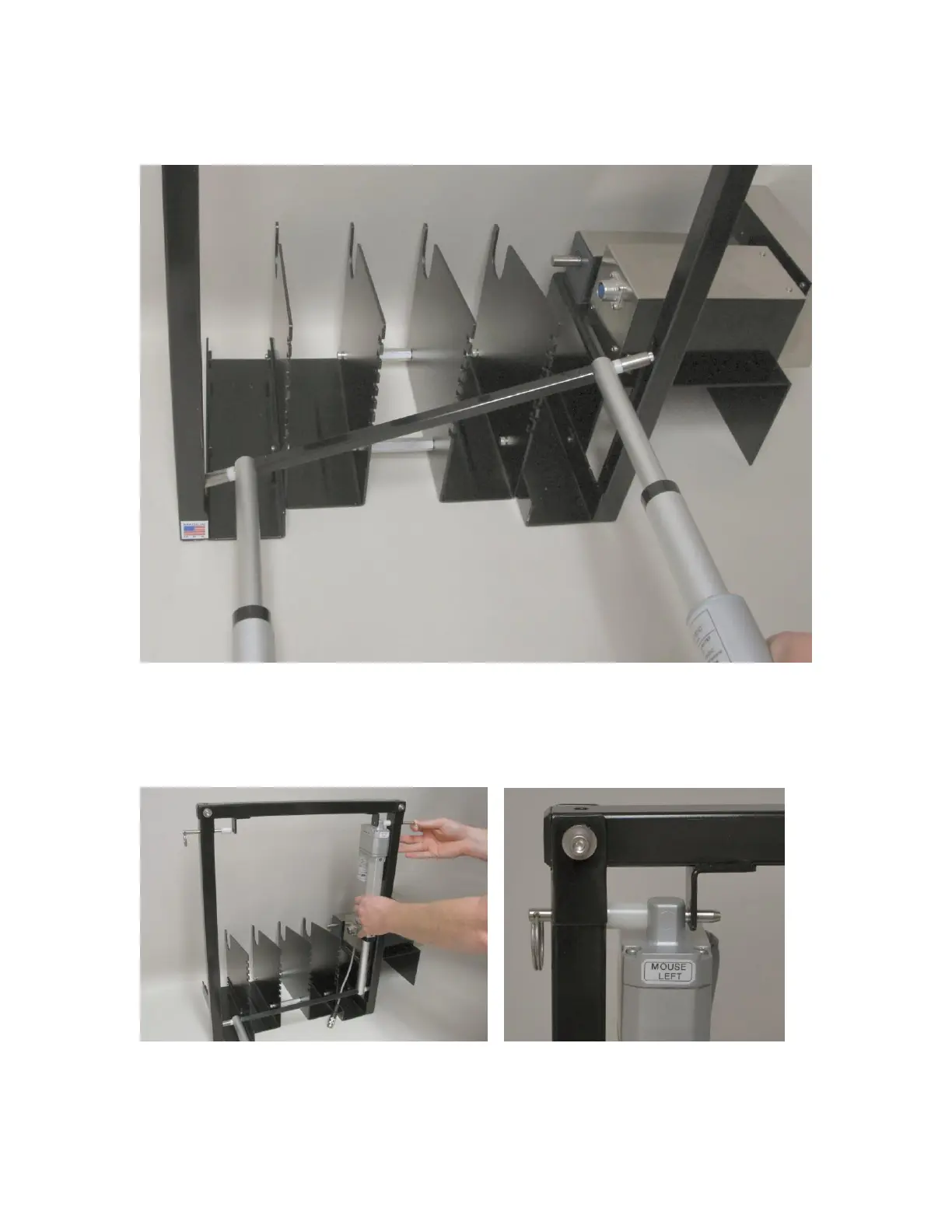

Insert the actuator-brace assembly into the vertical slots of the supports by tilting one end into the
bottom of the left slot, then dropping the other end into the top of the right slot.
Let one actuator rest on the working surface while the other is raised to vertical. Then lift the vertical
actuator to the top-brace. Once aligned, fully insert the quick-release pin through the actuator.
Raise the other actuator to vertical and fully insert the quick-release pin through the actuator and top-
brace.
