Columbus Instruments Exer 3/6 User Manual

22

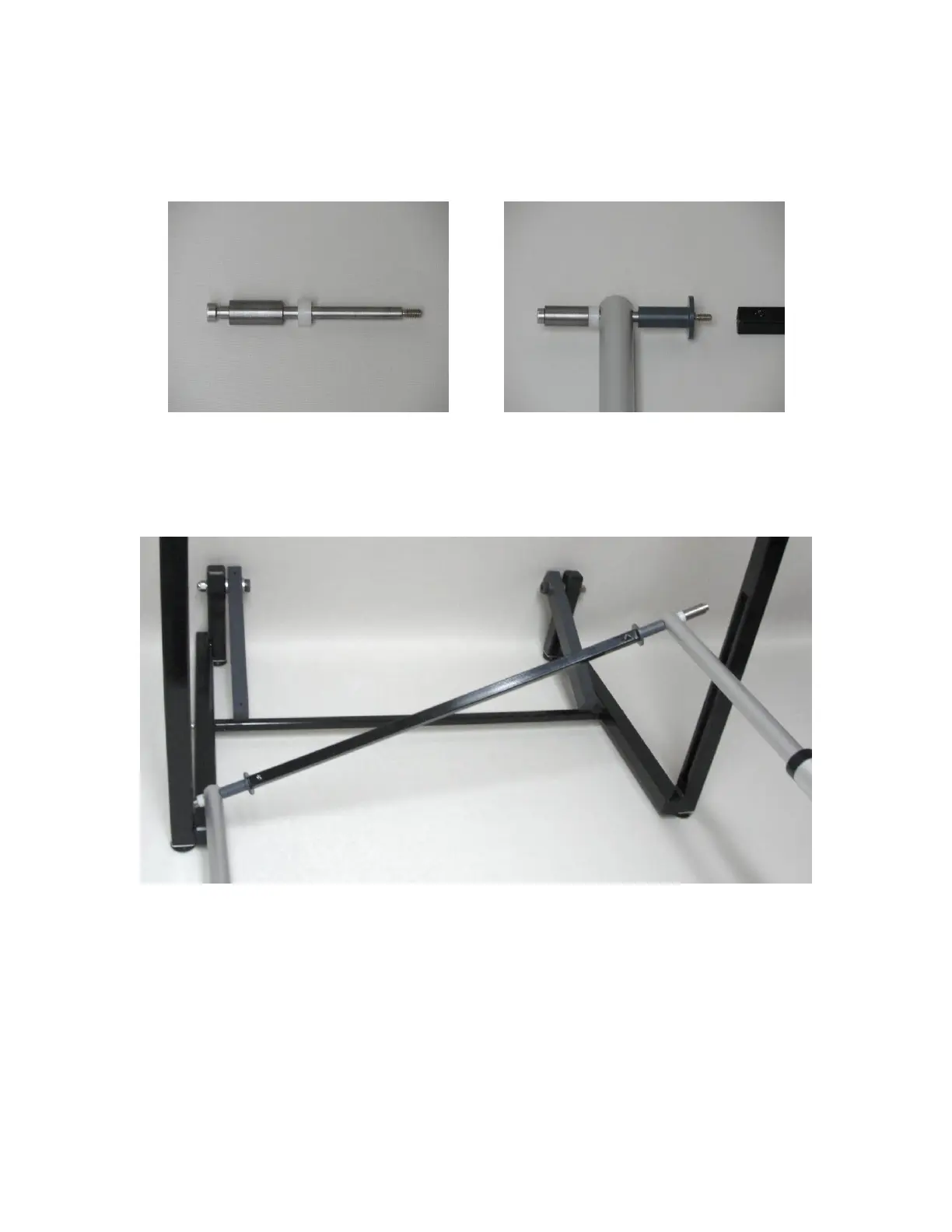

 Using one #10-24 socket-cap shoulder screw, 3-1/2” long, place one bronze-bushing and one 1/4" long
spacer over the shoulder. Then pass the shoulder through the hole in the left-actuator. Place one Exer
3/6 bushing over the shoulder (large diameter end toward the threads) and into the actuator brace.
Tighten with the 1/8” hex key.
 Repeat the above procedure for the right-side.
 Insert the actuator brace assembly into the vertical slots of the supports by tilting one end into the
bottom of the left slot, then dropping the other end into the top of the right slot.

Columbus Instruments Exer 3/6 Specifications

General

Brand	Columbus Instruments
Model	Exer 3/6
Category	Treadmill
Language	English
