3.2 Downhill Running Adapter (continued)

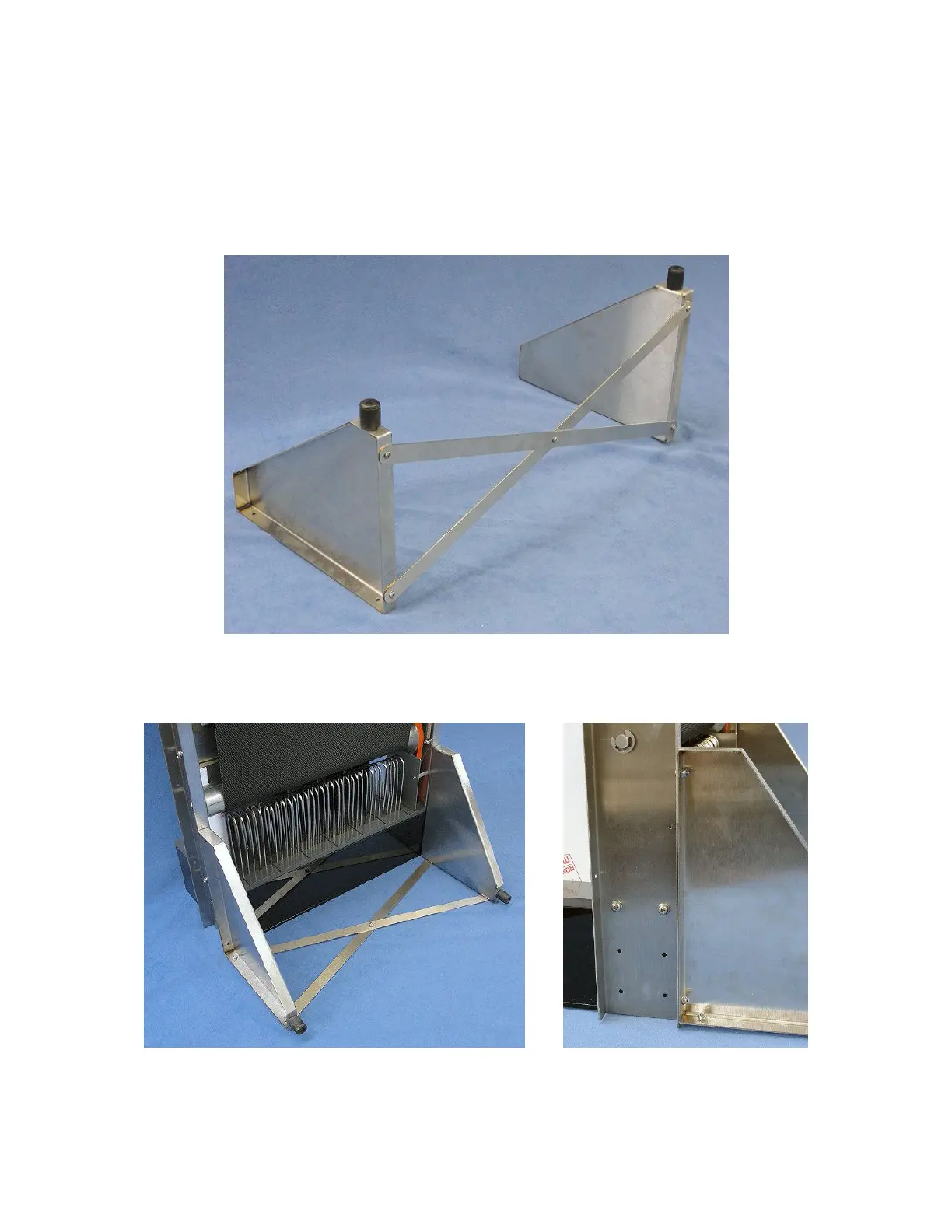

Using four screws with nuts, connect the legs and the braces together in the orientation as shown.
Again, do not tighten. The screws and nuts should hold the pieces closely together but allow them to
move.
Now, apply pressure to force the rubber feet of the legs apart and tighten the two screws and nuts near
the feet. This will hold the feet farthest apart for better stability.
Position the assembled Downhill Adapter with the braces on the bottom next to the bottom of the
treadmill as shown and secure with the remaining 4 screws and nuts as shown. Tighten completely.
