Compaq Deskpro 2000 Series of Personal Computers 5-33
4. Remove the two screws on the right side of the drive bay that secure the drive to the chassis.
5. Pull the drive straight out of the chassis.

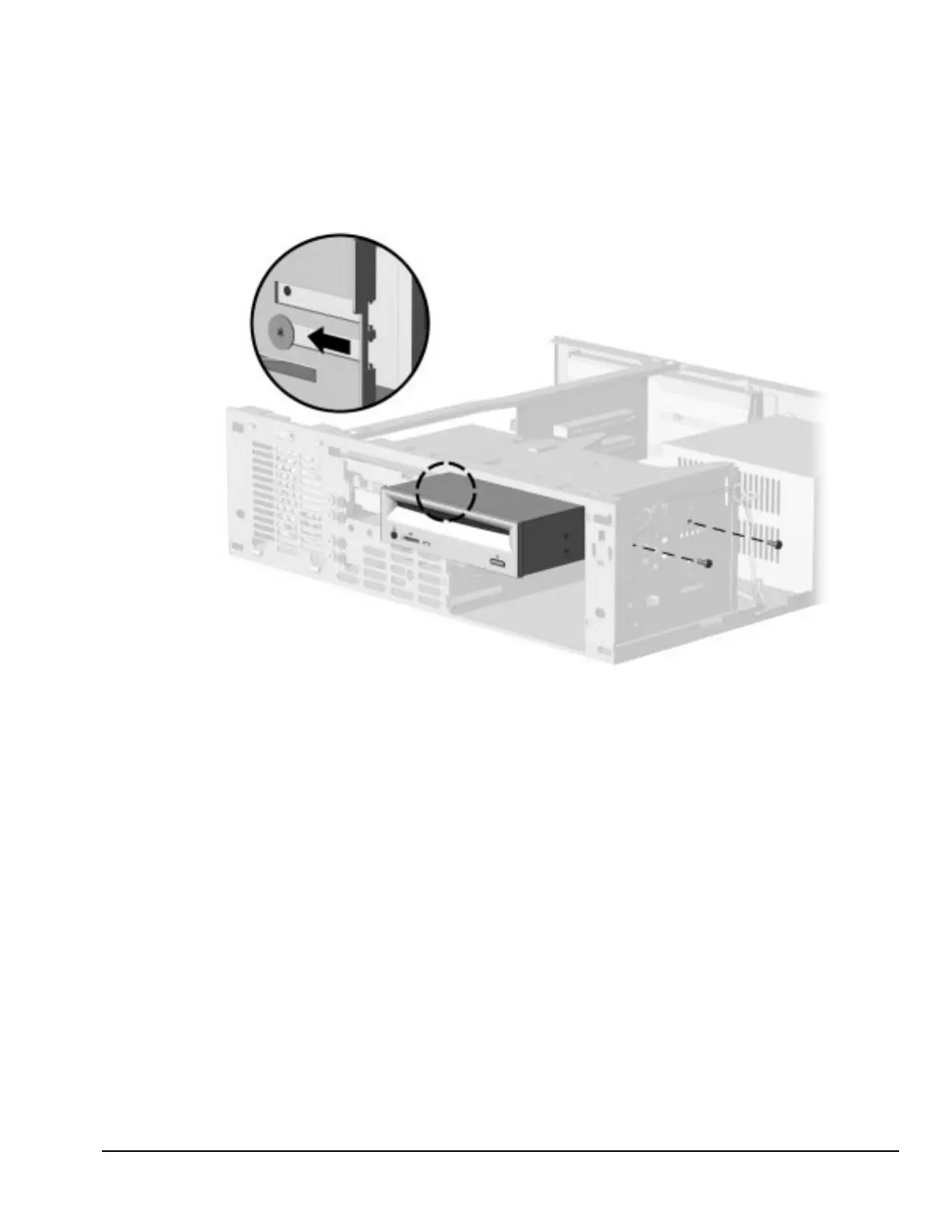

Figure 5-31.
Removing the CD-ROM Drive
When replacing this drive, transfer the single wafer screw that takes the place of drive rails from the
old drive to the new one. The wafer screw is on the left side of the drive at the front.
To replace the 5.25-inch drive, reverse the above procedures.
✎
When installing a second diskette drive, it is necessary to configure the computer using
Computer Setup.
