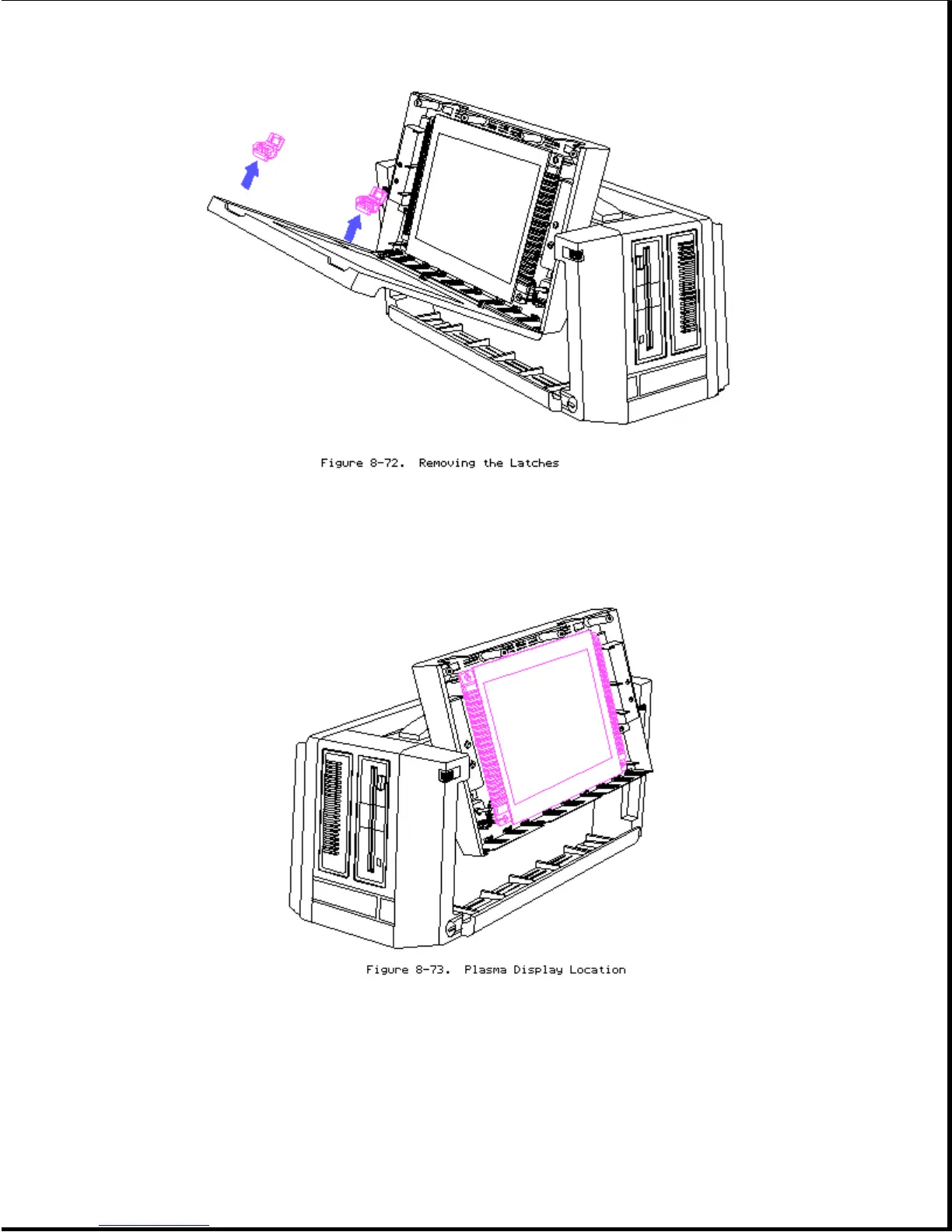

6. Locate the plasma display shown in Figure 8-73.

7. Remove the four screws and washers that secure the plasma display to the

display enclosure (Figure 8-74).
