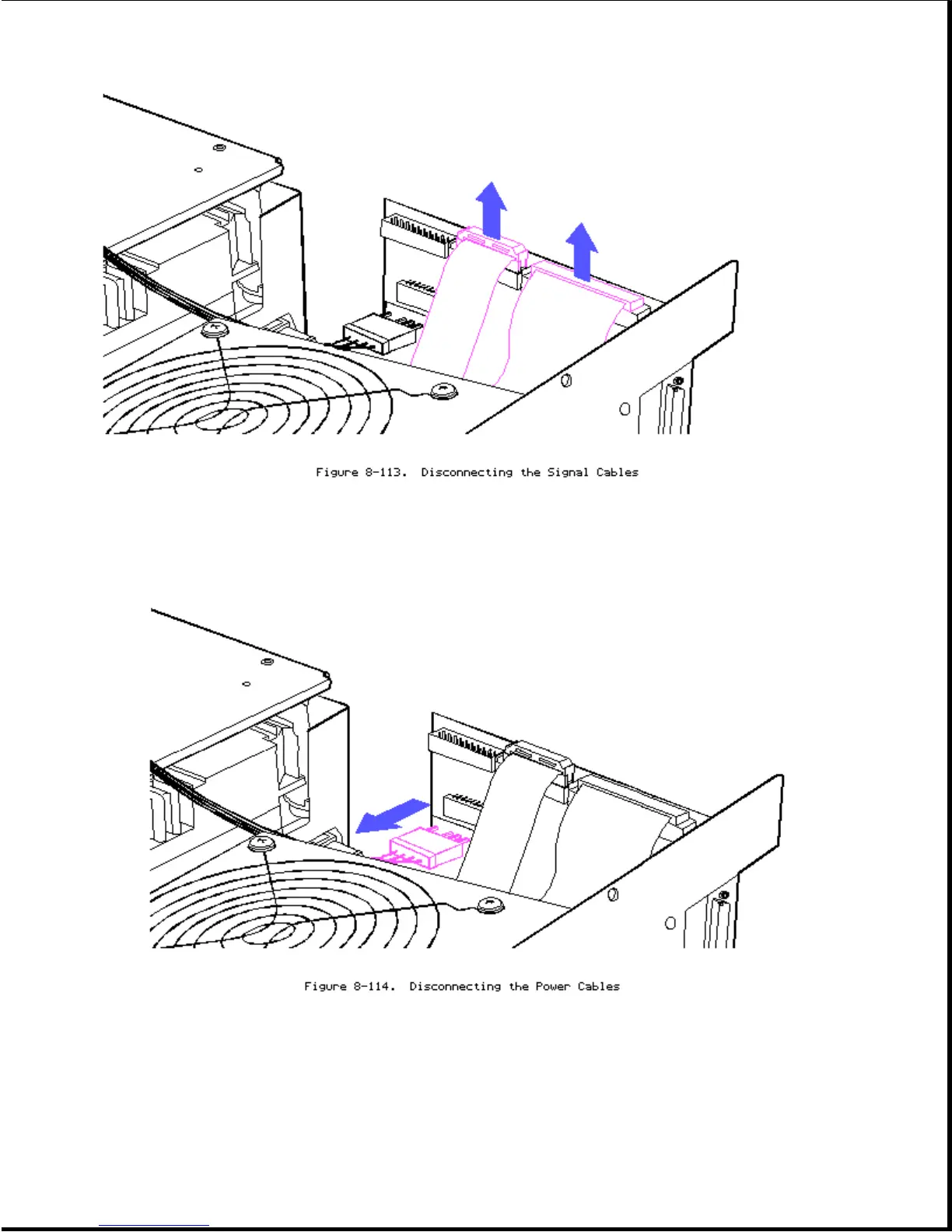

3. Disconnect the universal drive power and power supply cables from the

external interface adapter board (Figure 8-114).

4. Remove the external interface adapter board.

NOTE: Inspect the new external interface adapter board for shipping damage

before installing.
