SCSI Cable Connectors
To help identify the SCSI cables required for ProLiant 5500 and 5500R server
installation, refer to the following illustrations. Keep in mind these
characteristics:
■ All Compaq ProLiant 5500 and 5500R SCSI connectors are Wide-Ultra
68-pin connectors.
■ External SCSI cables have a round wire with securable connectors.
■ Internal SCSI cables have a flat ribbon wire with push-on connectors.
■ Compaq SCSI cables are keyed so that they cannot be installed
incorrectly.
■ Fast-Wide SCSI-2 (wide SCSI) internal ribbon cables are physically
smaller (narrower) than the Fast-SCSI-2 (standard SCSI) cables.

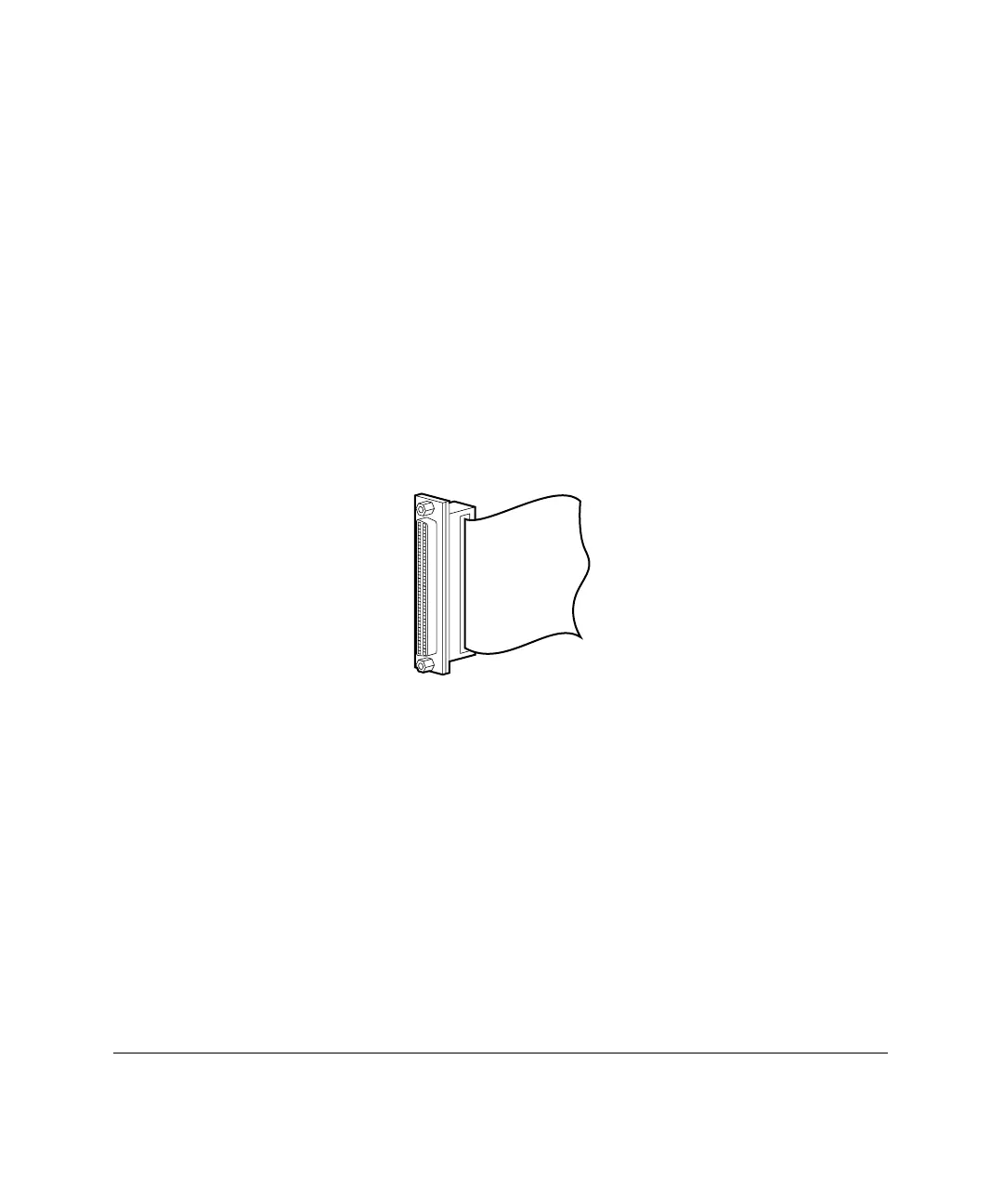

Figure 7-1. External/Internal Fast Wide SCSI-2 (Wide SCSI) 68-pin connector
