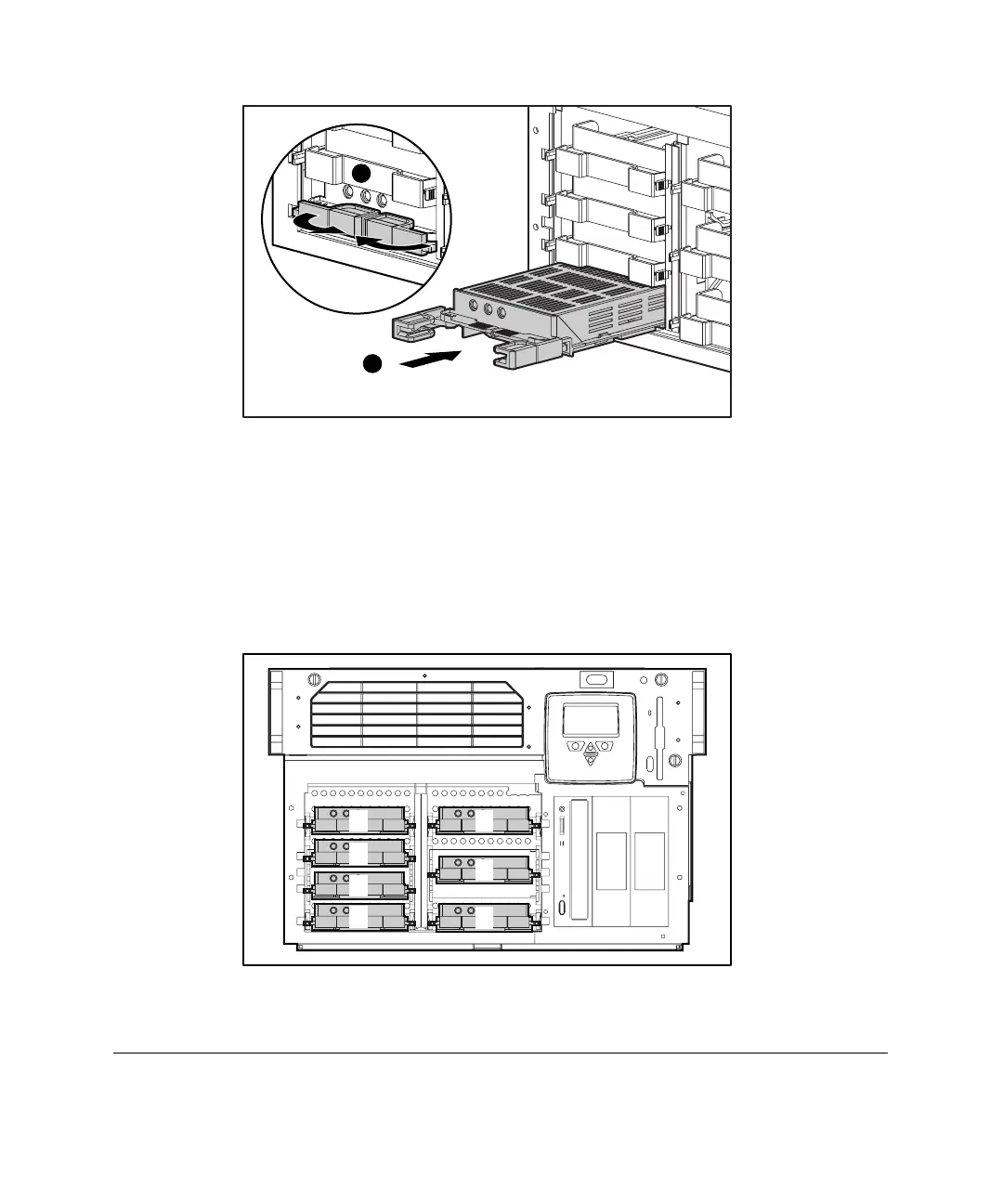

Figure 4-16. Installing a Wide-Ultra SCSI-3 drive
SCSI ID Numbers
for Wide-Ultra SCSI-3
There are several possible numbering schemes depending on whether you are
using 1-inch height drives, 1.6-inch height drives, or a simplex controller. The
following figures illustrate the simplex mode scenarios.
0
1
2
3 6
5
4
Figure 4-17. SCSI ID numbers - single SCSI channel (simplex mode)
with 1-inch drives
