3-9
Compaq ProLiant 5500 and 5500R Servers Setup and Installation Guide
For use with Pentium II Xeon and Pentium III Xeon processor-based servers only
Writer: Michele Wray Project: Compaq ProLiant 5500 and 5500R Servers Setup and Installation Guide Comments: 328470-002
File Name: D-CH03.DOC Last Saved On: 2/8/99 10:49 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED

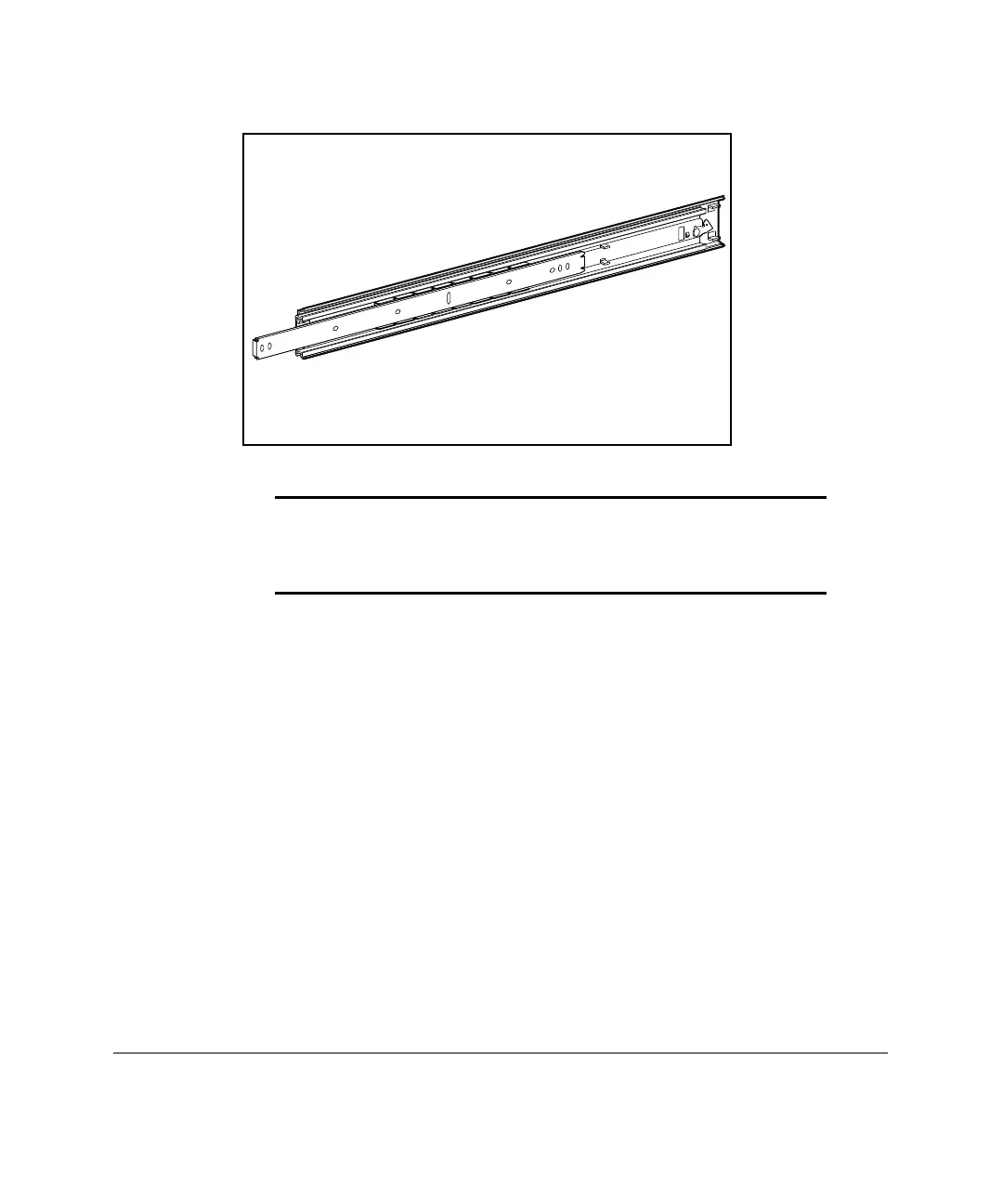

Figure 3-3. Slide rail assembly (outer bracket rail and inner server rail)
IMPORTANT: To make the installation of the mounting bracket easier,
attach the bracket rail to the rack mounting bracket before attaching the
mounting bracket assembly to the rack. This way, the joined mounting
bracket and bracket rail can be fastened to the rack as one assembly.
Attaching the Bracket Rail
to the Mounting Bracket
Please read all of the following steps before you begin.
1. Unpack the hardware mounting kit. Lay the two-piece slide rail
assembly (outer bracket rail and inner server rail) and fasteners on a flat
surface along with the mounting brackets and fasteners that came with
the rack. Extend the server rail from the bracket slide rail until the server
rail release latch clicks. Holding down the latch, slip this piece out of
each bracket rail, as shown in the following figure.
