Compaq ProLiant 5500 - SCSI ID Numbers for Wide Ultra2 SCSI

4-23
Compaq ProLiant 5500 and 5500R Servers Setup and Installation Guide
For use with Pentium II Xeon and Pentium III Xeon processor-based servers only
Writer: Michele Wray Project: Compaq ProLiant 5500 and 5500R Servers Setup and Installation Guide Comments: 328470-002
File Name: E-CH04.DOC Last Saved On: 2/12/99 12:18 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
1
2

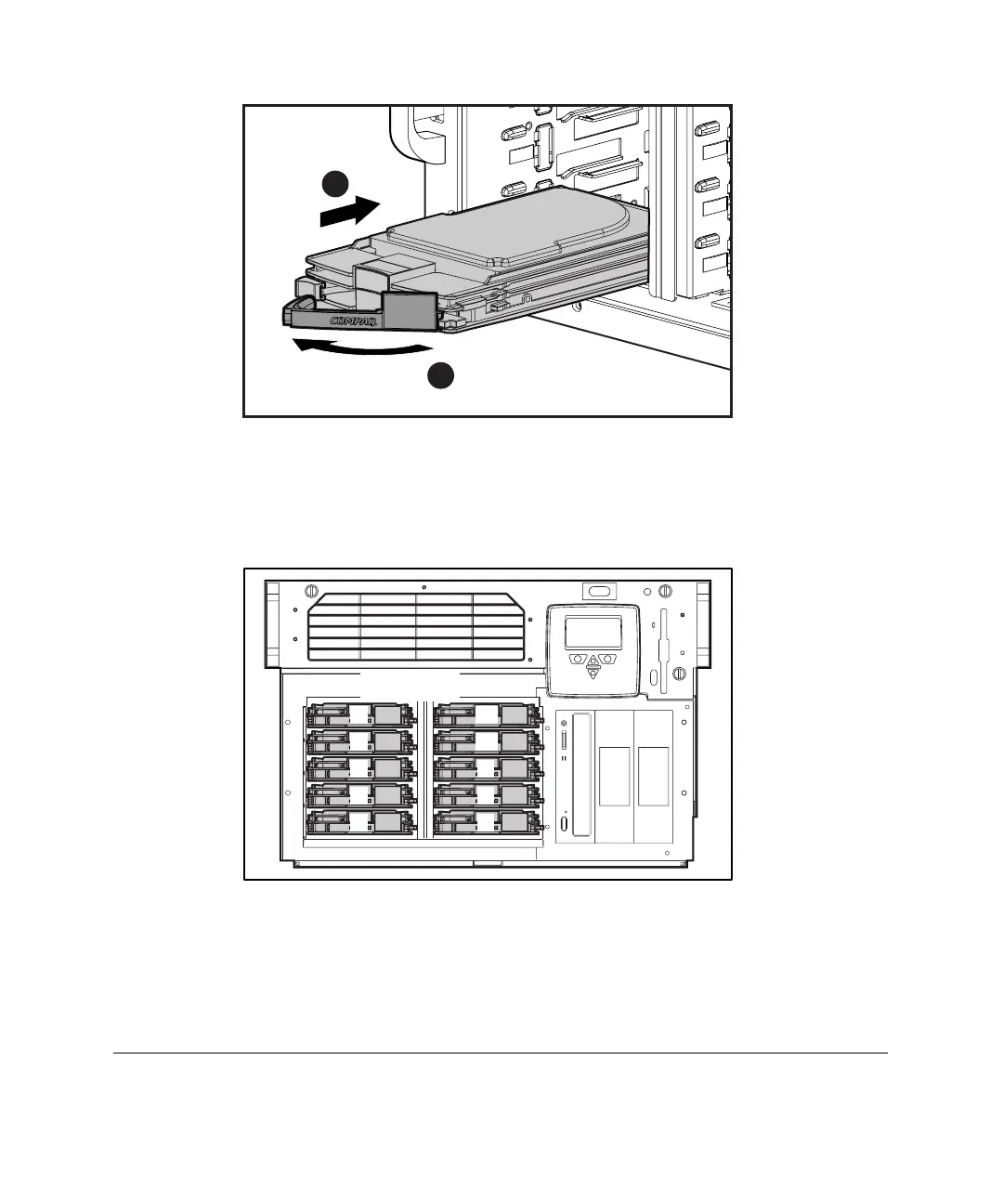

Figure 4-20. Installing a Wide Ultra2 SCSI drive
SCSI ID Numbers
for Wide Ultra2 SCSI
0
1
2
3
4
5
8
9
10
11
SCSI IDs
Figure 4-21. Wide Ultra2 SCSI ID numbers
NOTE: SCSI ID numbers 6 and 7 are dedicated to the controller.
