Attaching the Mounting Bracket Assembly
to the Rack
The tabs on the front of the mounting bracket help to align it with the front of
the rack frame. Cage nuts are not used for the front attachment of the mounting
bracket.
1. Attach a mounting bracket assembly to the front of the rack first, using
one M6 x 1.0-12L Phillips screw in the bottom hole of the bracket. Do
not use the washers supplied with the Compaq rack.
IMPORTANT: Use only the bottom hole of the bracket as shown in
Figure 3-10.

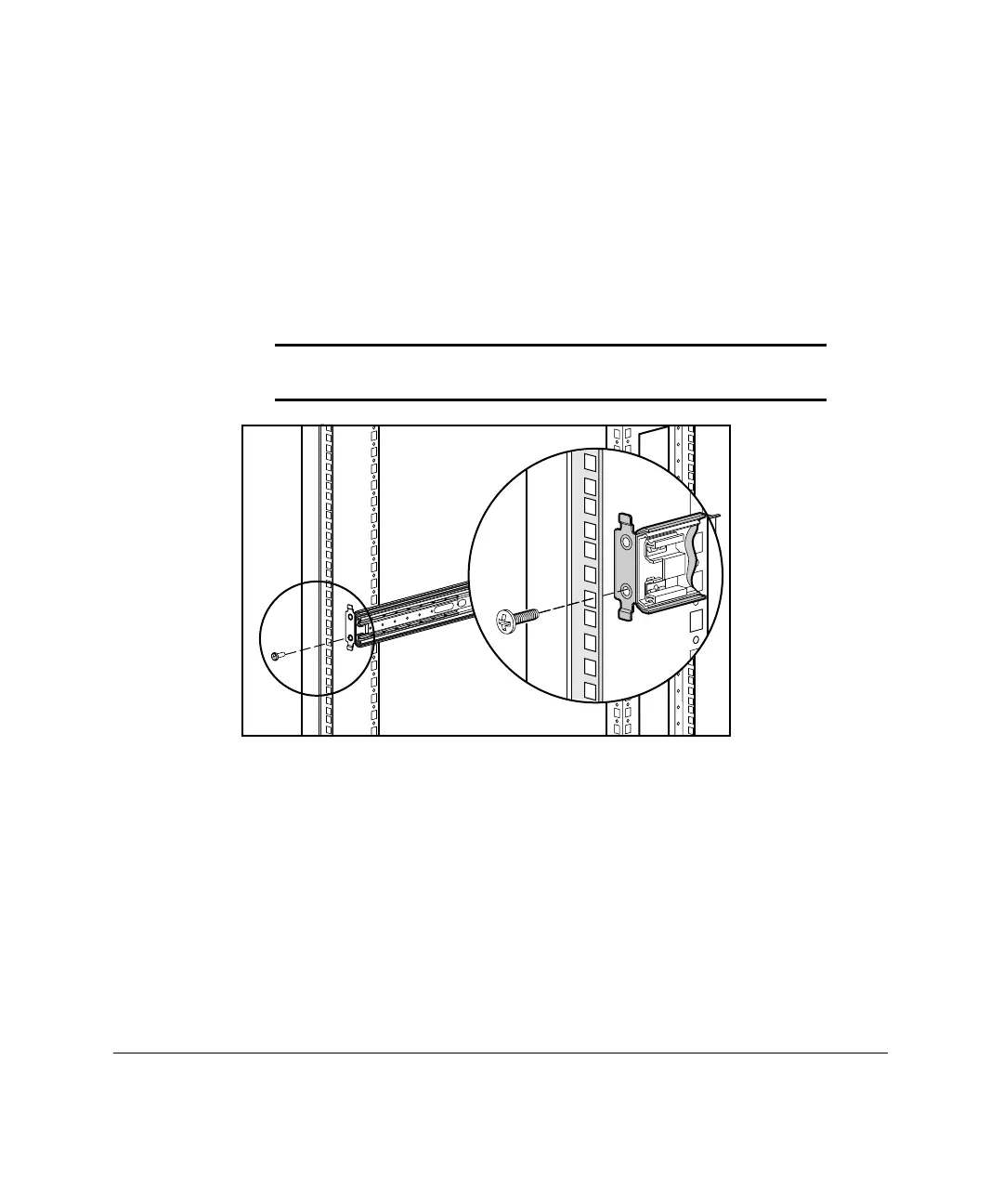

Figure 3-10. Attaching mounting bracket assembly to the front of the rack
2. Carefully align the mounting bracket assembly with the rear rack frame.
