7-8
Cabling for Wide-Ultra SCSI-3
For use with Pentium II Xeon and Pentium III Xeon processor-based servers only
Writer: Michele Wray Project: Compaq ProLiant 5500 and 5500R Servers Setup and Installation Guide Comments: 328470-002
File Name: H-CH07.DOC Last Saved On: 2/8/99 11:06 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Standard SCSI Simplex Configuration
Compaq ProLiant 5500 and 5500R servers are shipped standard in the simplex
mode, which connects all drives from the hard drive backplane board
(simplex board) to SCSI Port 1 on the peripheral board.
Simplex Board Connectors
In the Compaq ProLiant 5500 and 5500R server, the simplex board has one
SCSI input channel, designated SCSI Input 0. This connector is shown in
Figure 7-5.
2 31

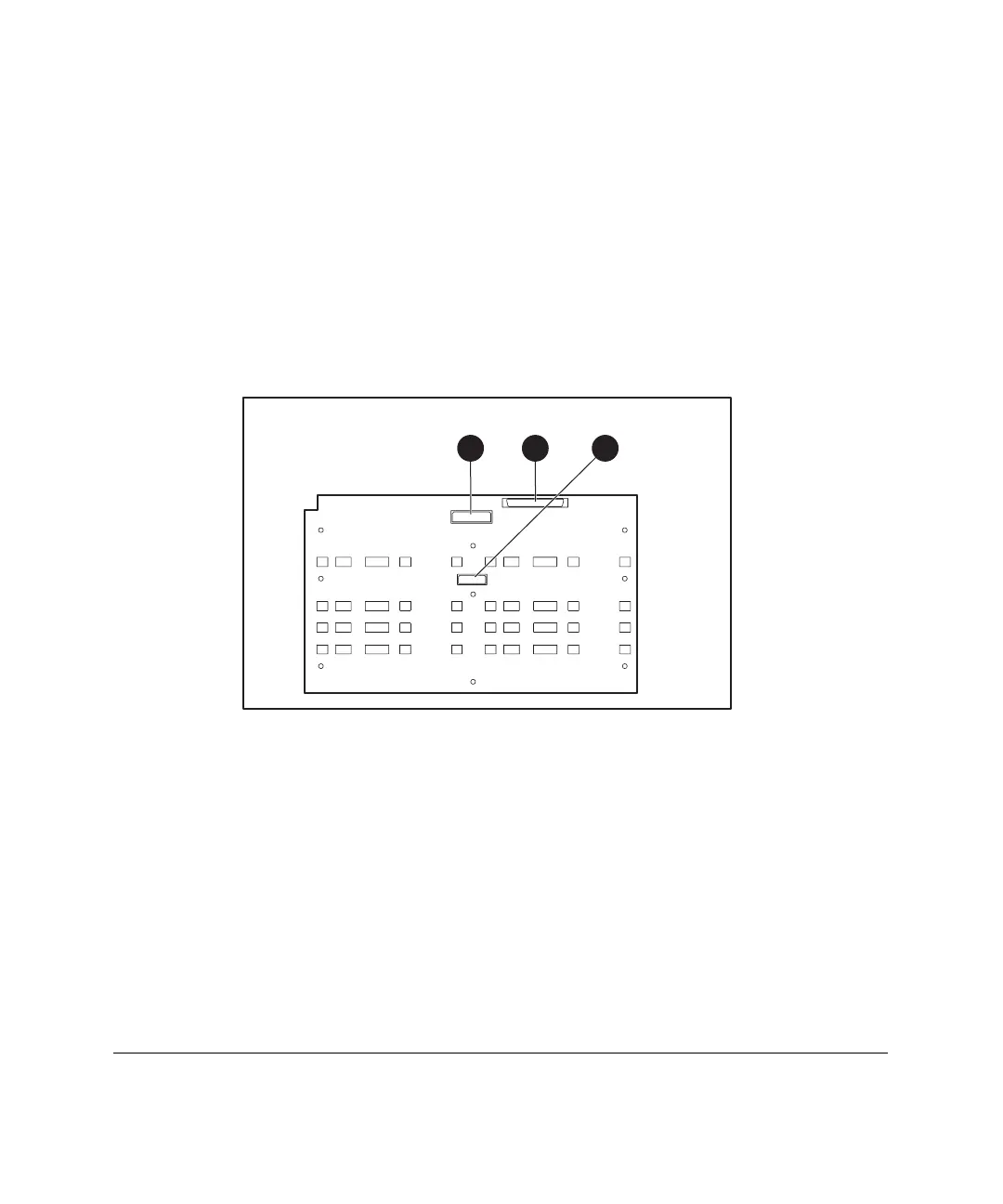

Figure 7-5. Simplex board connectors
1
Simplex board power connector
2
SCSI Input 0
3
Removable media power connector
