Rack-Mount Server Installation
For use with Pentium II Xeon and Pentium III Xeon processor-based servers only
Writer: Michele Wray Project: Compaq ProLiant 5500 and 5500R Servers Setup and Installation Guide Comments: 328470-002
File Name: D-CH03.DOC Last Saved On: 2/8/99 10:49 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Attaching Server Rails
1. Place the tab on a server rail at the front of the server chassis. The holes
in the server rail will line up only one way with the chassis.
2. Attach the flat side of a server rail to each side of the server chassis with
four 8-32 x 1/4-inch Phillips screws. Do not use washers with the
screws.

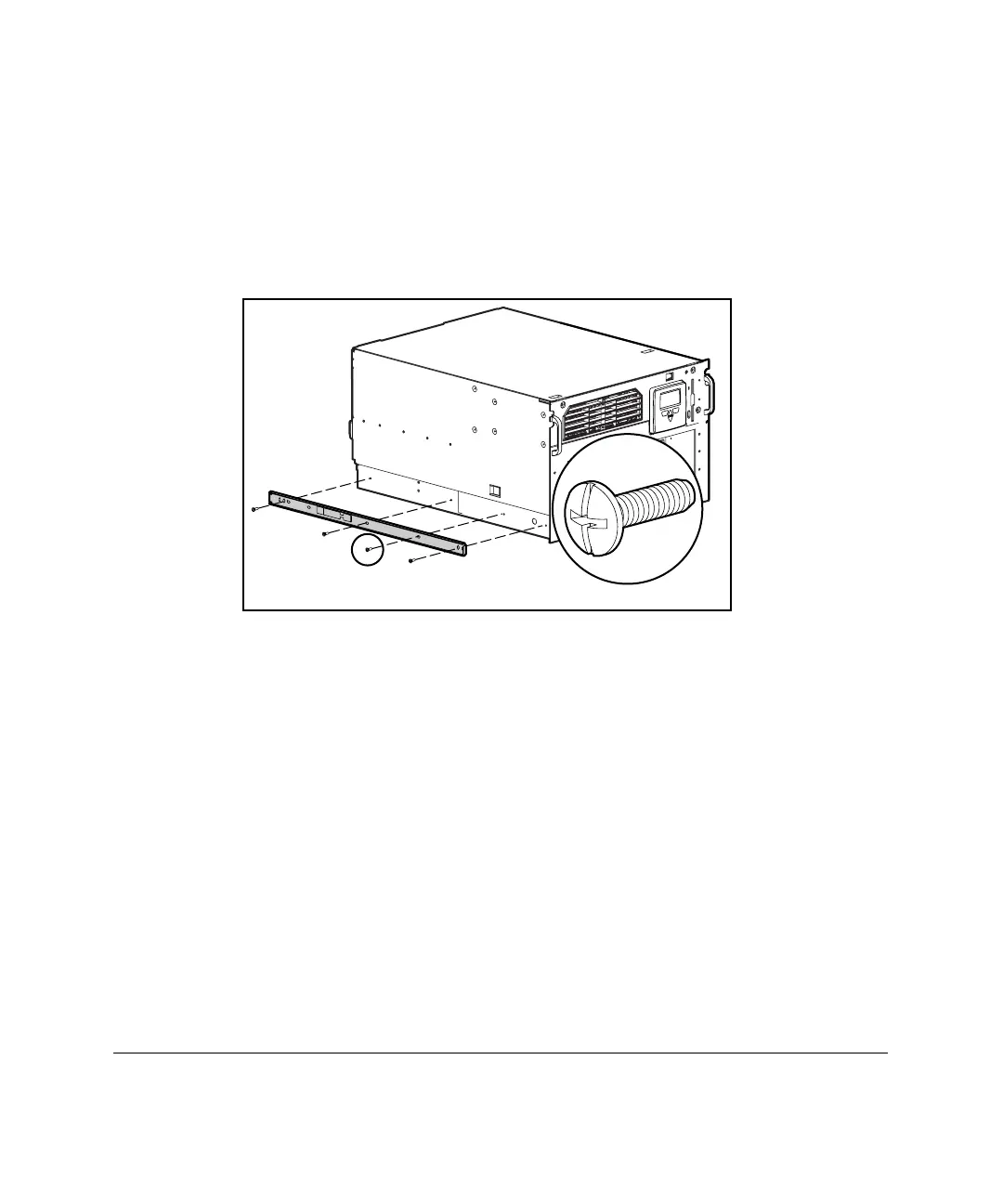

Figure 3-12. Attaching a server rail to the server
