3-21
Compaq ProLiant 5500 and 5500R Servers Setup and Installation Guide
For use with Pentium II Xeon and Pentium III Xeon processor-based servers only
Writer: Michele Wray Project: Compaq ProLiant 5500 and 5500R Servers Setup and Installation Guide Comments: 328470-002
File Name: D-CH03.DOC Last Saved On: 2/8/99 10:49 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Attaching the Cable Management
Arm Component Bracket
As viewed from the rear of the server, the cable management arm server bracket
fastens to the top left rear of the rack server's chassis. The bracket provides an
attachment point for the cable management arm from the server to the rear
frame of the rack. To attach the cable management arm server bracket:
1. Attach the cable management arm bracket to the back of the server with
two 6-32 x 1/4 Phillips screws.
2. Attach the rack rail covers to the rack.

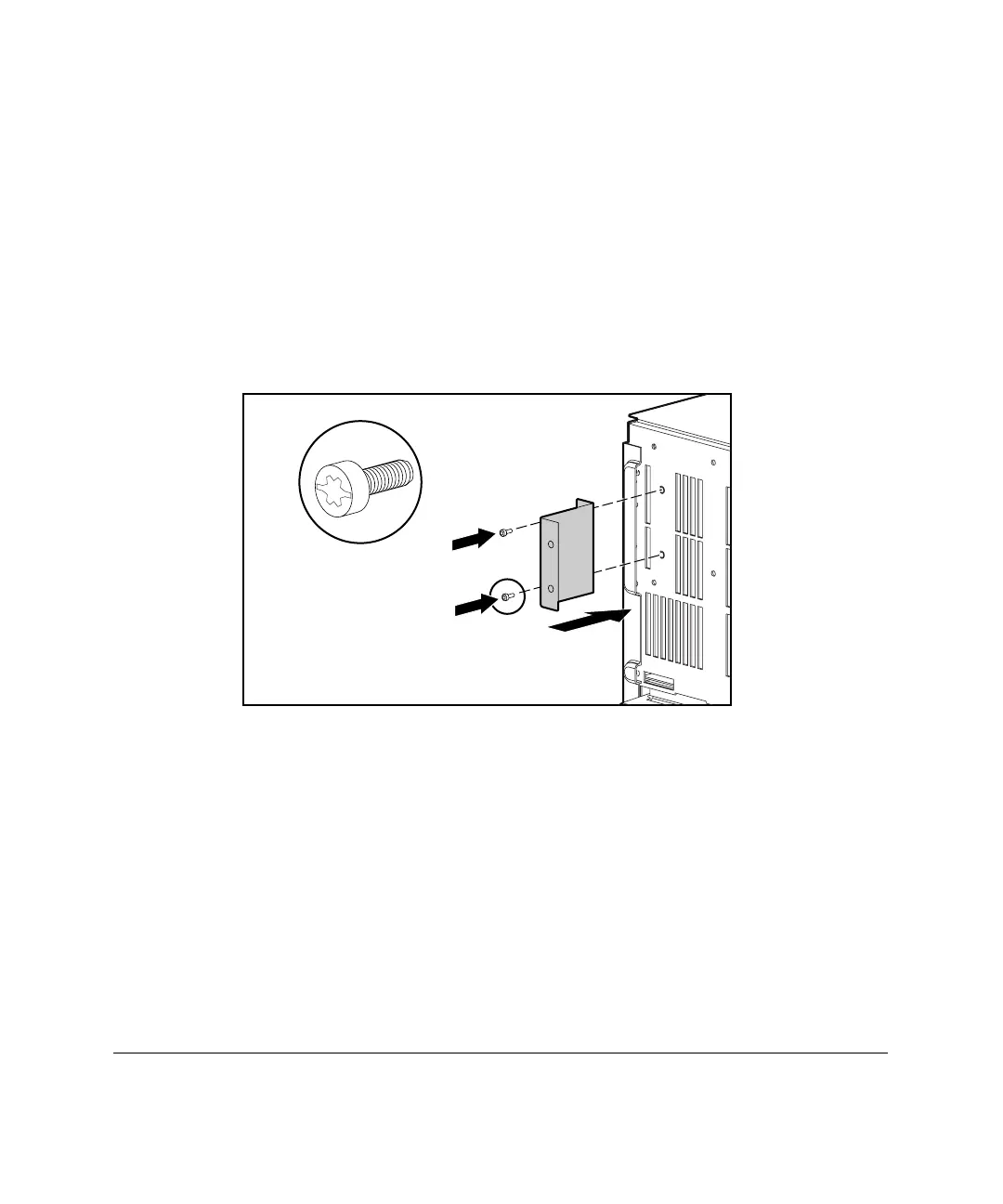

Figure 3-13. Attaching a cable management arm server bracket to the server
