Compaq ProLiant 5500 - Accessing Hot-Plug Areas; Accessing the Hot-Plug SCSI Drives for Wide-Ultra SCSI-3 Models

4-20
Installing Hardware Components
For use with Pentium II Xeon and Pentium III Xeon processor-based servers only
Writer: Michele Wray Project: Compaq ProLiant 5500 and 5500R Servers Setup and Installation Guide Comments: 328470-002
File Name: E-CH04.DOC Last Saved On: 2/12/99 12:18 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Accessing Hot-Plug Areas
This section describes how to access the hot plug SCSI drive area.
Components in these areas have color coded latches or levers to signify that
they are hot-plug devices.
Accessing the Hot-Plug SCSI Drives
for Wide-Ultra SCSI-3 Models
1
2
3

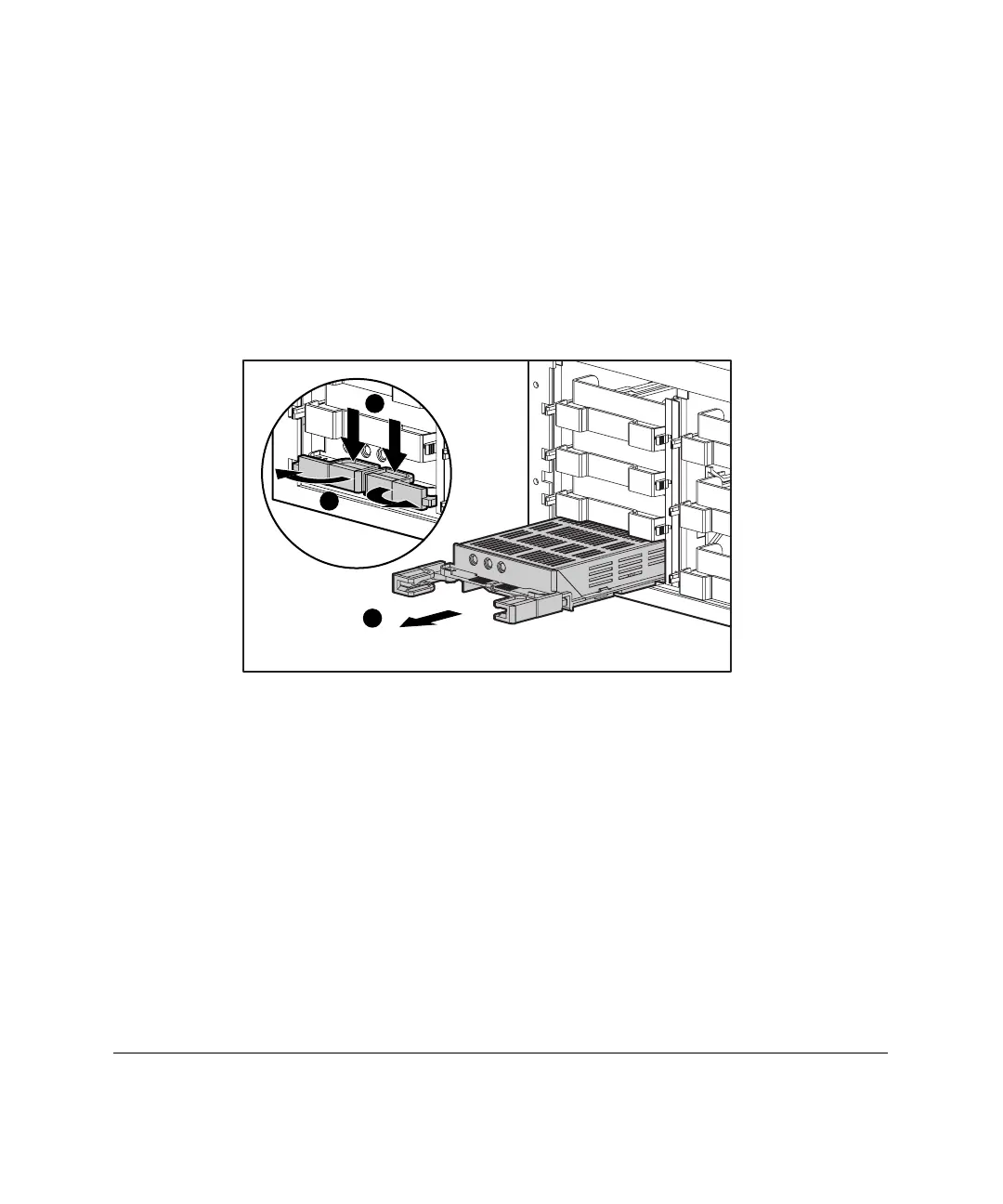

Figure 4-15. Removing a Wide-Ultra SCSI-3 drive
NOTE: Pinch both sides of drive levers to unlock, then swing the levers out.
