Rack-Mount Server Installation
For use with Pentium II Xeon and Pentium III Xeon processor-based servers only
Writer: Michele Wray Project: Compaq ProLiant 5500 and 5500R Servers Setup and Installation Guide Comments: 328470-002
File Name: D-CH03.DOC Last Saved On: 2/8/99 10:49 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
■ Slotted screwdriver
■ Application software diskettes, such as SmartStart and Support Software
CD
■ Options to be installed, such as
❏ Optional monitor, keyboard, etc.
❏ Integrated Management Display (tower model only)
❏ Array Controller
❏ Redundant fans
Preparing the Mounting Brackets
and Slide Rail Assemblies
Each pair of mounting brackets, with attached slide rail assemblies supports one
rack-mountable server.

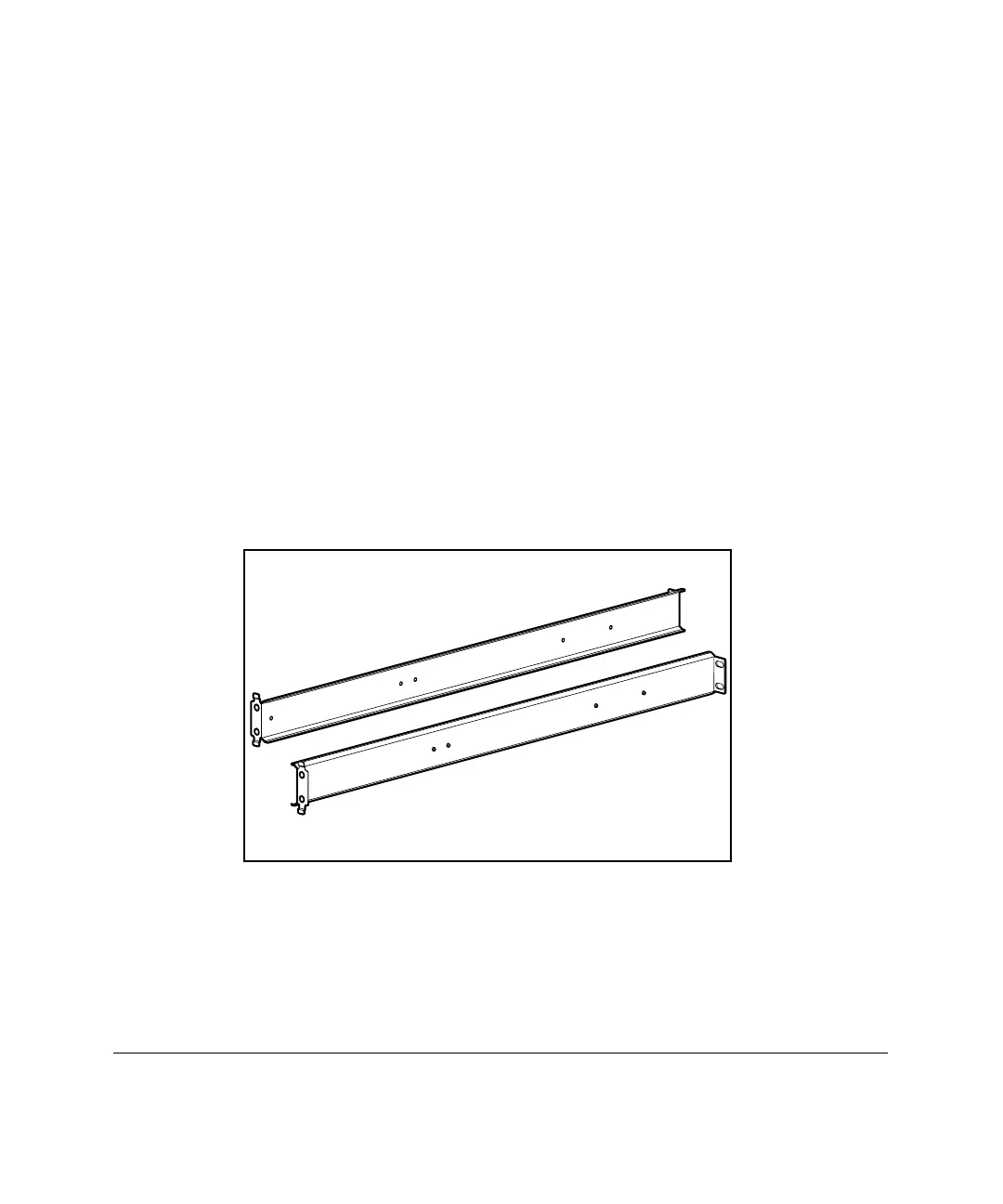

Figure 3-2. Rack mounting brackets; alignment tabs identify the front flanges
Each slide rail assembly consists of an outer bracket rail and an inner server rail
(see the following figure). These pieces can be separated; the bracket rails
attach to the rack mounting brackets (shown in the previous figure), and the
server rails attach to the sides of the server chassis.
