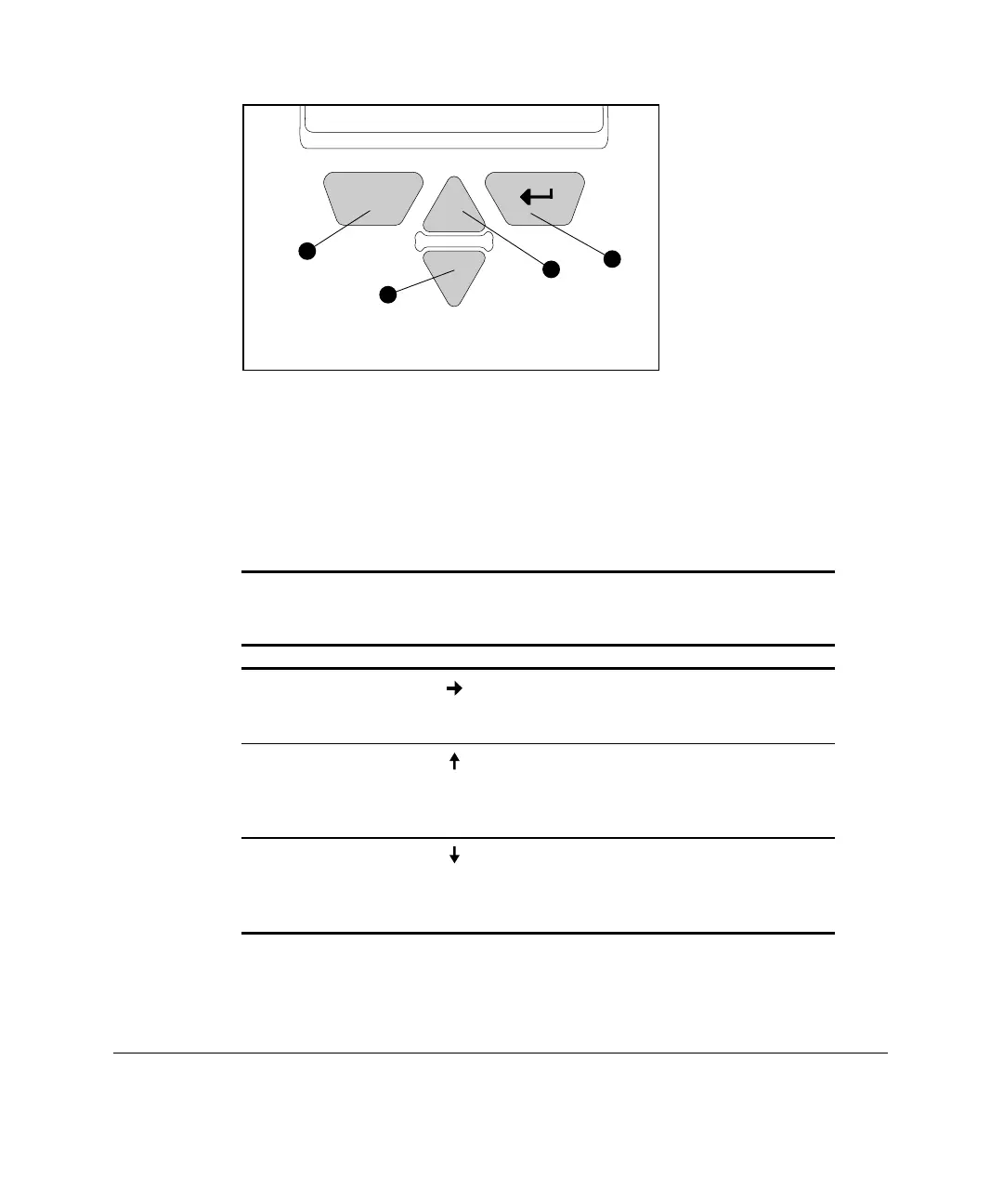

Figure 6-4. Integrated Management Display buttons
Display Symbols
There are three different display symbols used to indicate the options while
scrolling through the menus. These symbols are the UP and DOWN arrows, and
the Selector arrow.
Table 6-1
Integrated Management Display Symbols
Type of Symbol Symbol Meaning
Arrow Selector arrow shows current menu item.
Press
Enter
on the IMD to select the menu
item to the right of this arrow.
Up Arrow If present in upper right corner, indicates
previous information exists. Press the Up
Arrow on the IMD to view the information.
Press and hold the button to scroll.
Down Arrow If present in lower right corner, indicates more
information exists. Press the Down Arrow on
the IMD to view the information. Press and
hold the button to scroll.
