3-16
Rack-Mount Server Installation
For use with Pentium II Xeon and Pentium III Xeon processor-based servers only
Writer: Michele Wray Project: Compaq ProLiant 5500 and 5500R Servers Setup and Installation Guide Comments: 328470-002
File Name: D-CH03.DOC Last Saved On: 2/8/99 10:49 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED

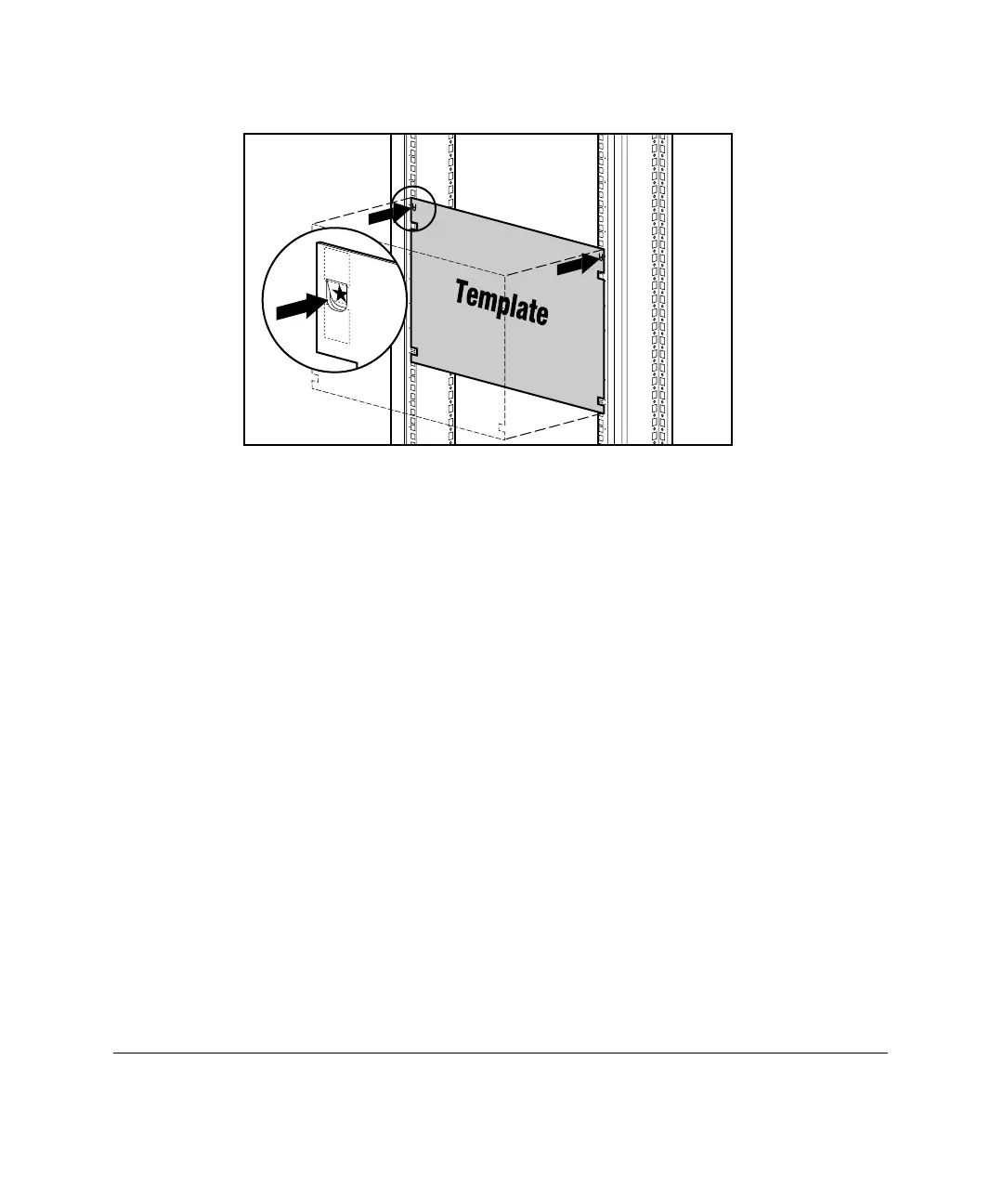

Figure 3-8. Measuring with the template
3. After marking the front of the rack, flip the template over and mark the
back rails of the rack. Open the rear door of the rack to access the back
rails.
4. On the back of the rack, also mark the rail to show the top of the
template. This will help you align a template for the next server.
Inserting Cage Nuts in the Rack Frame
After marking the positions for the fasteners in both the front and back of the
rack, use the fitting tool to insert cage nuts on the inside of the rails at the
marked locations. The cage nuts and fitting tool are included in the hardware kit
supplied with the rack.
1. Position the cage nut as shown in the following figure, on the inside of
the rail.
2. Hook one of the lips of the cage nut through the square rail perforation.
