External Cabling
The following figure, Figure 8-3 shows the locations of the external connectors
on the back of the server.
1 2
3
4
9
8
1314
12 11 10
5
6
7

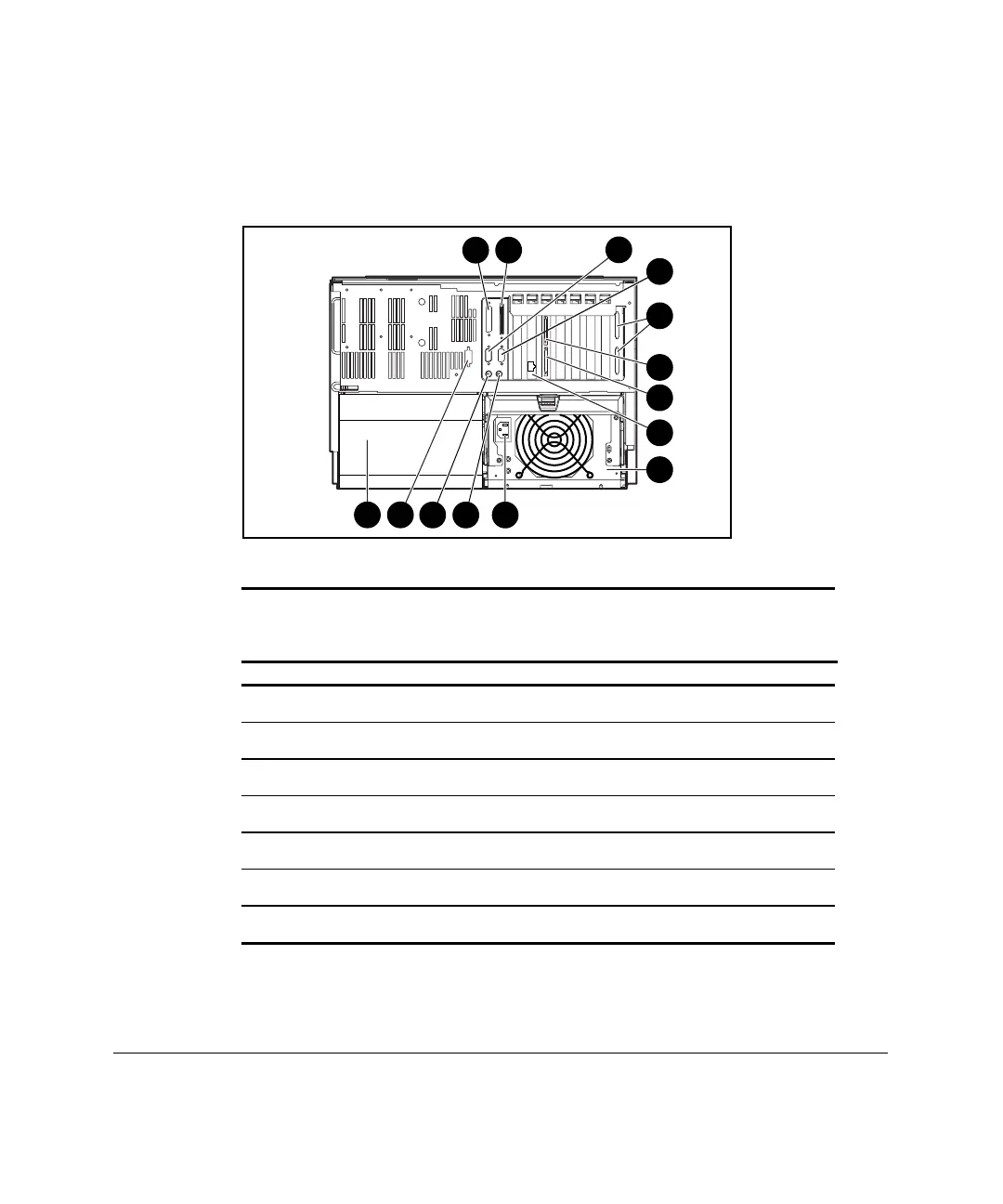

Figure 8-3. External connectors
Table 8-1
External Connectors
1 Parallel port connector 8 NIC (RJ-45 connector)
2 External Wide Ultra SCSI connector 9 Hot-plug power supply
3 Serial A connector - Power supply outlet
4 Video connector q Mouse connector
5 VHDCI SCSI knockouts w
Keyboard connector
6 VHDCI Ultra2 external Port 1 e
Serial B connector
7 VHDCI Ultra2 external Port 2 r
Redundant power supply bay
