Compaq ProLiant 5500 and 5500R Servers Setup and Installation Guide
For use with Pentium II Xeon and Pentium III Xeon processor-based servers only
Writer: Michele Wray Project: Compaq ProLiant 5500 and 5500R Servers Setup and Installation Guide Comments: 328470-002
File Name: I-CH08.DOC Last Saved On: 2/5/99 4:06 PM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
3
2
1
5
6
4

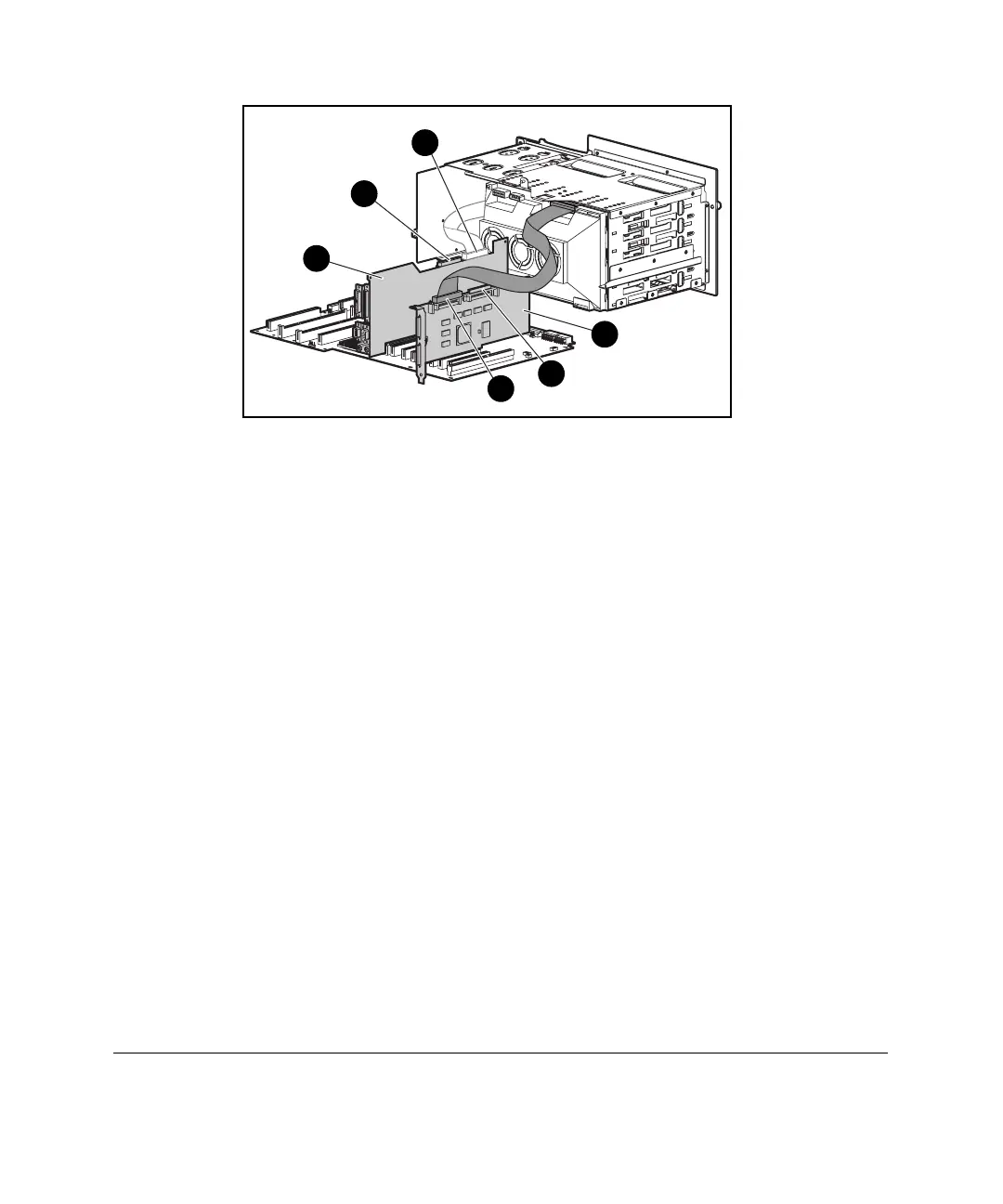

Figure 8-4. SCSI controller showing cabling configuration
➊ Wide Ultra Port 1
➋ Wide Ultra Port 2
➌ Peripheral Board
➍ Wide Ultra2 Port 1
➎ Wide Ultra2 Port 2
6
Wide Ultra2 controller
