3-13
Compaq ProLiant 5500 and 5500R Servers Setup and Installation Guide
For use with Pentium II Xeon and Pentium III Xeon processor-based servers only
Writer: Michele Wray Project: Compaq ProLiant 5500 and 5500R Servers Setup and Installation Guide Comments: 328470-002
File Name: D-CH03.DOC Last Saved On: 2/8/99 10:49 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
1
2
3
26
26

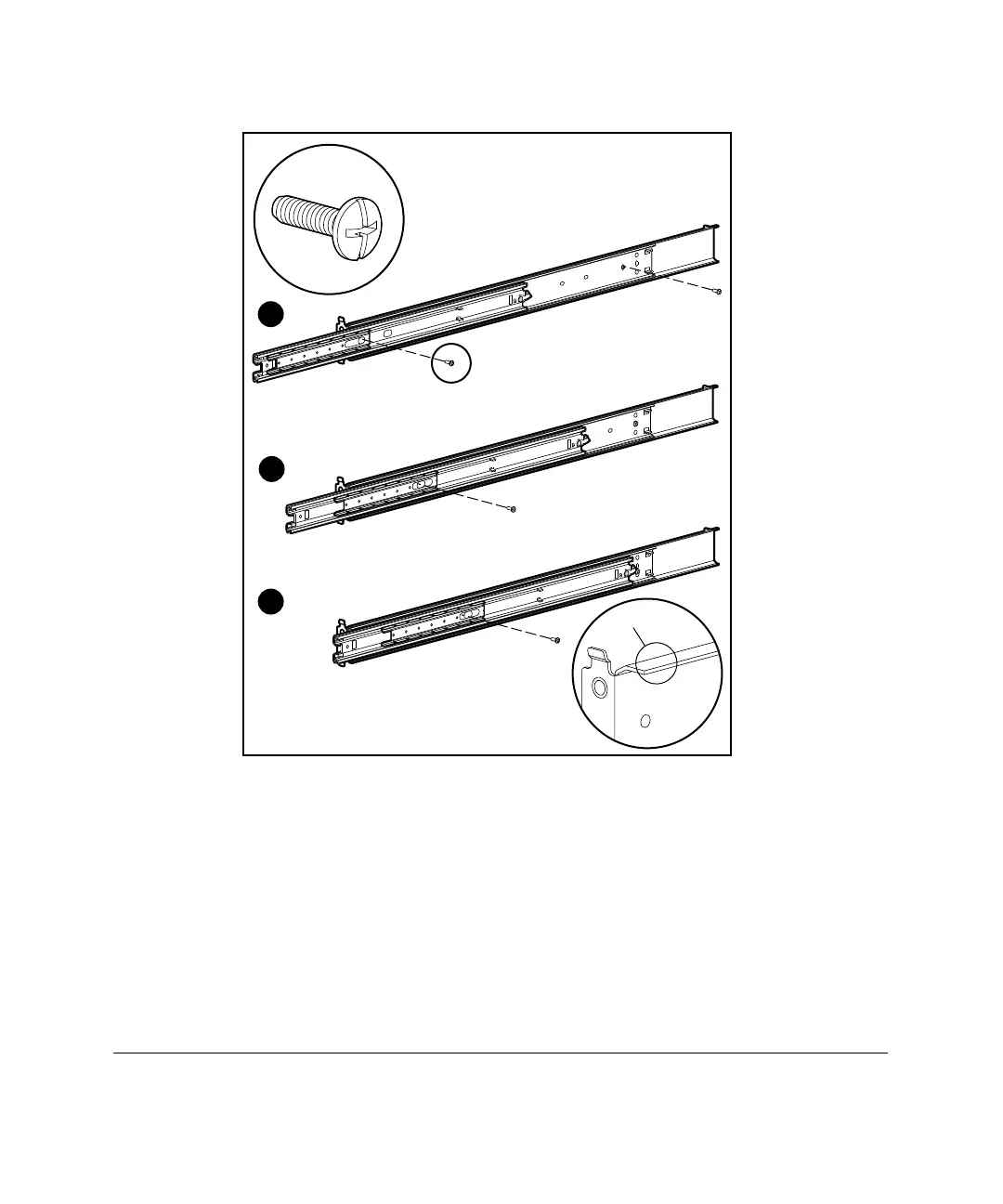

Figure 3-7. Attaching the bracket rail to the mounting bracket
You will use a total of four 8-32 x 1/4-inch slotted screws to fasten the
bracket rail to the mounting bracket. When all four screws are fastened,
the mounting bracket and bracket rail form a mounting bracket slide
assembly that you will attach to the rack.
7. Repeat steps 4 through 7 with the other bracket rail and mounting
bracket. You now have a pair of mounting bracket slide assemblies to be
attached to the rack.
