Rack-Mount Server Installation
For use with Pentium II Xeon and Pentium III Xeon processor-based servers only
Writer: Michele Wray Project: Compaq ProLiant 5500 and 5500R Servers Setup and Installation Guide Comments: 328470-002
File Name: D-CH03.DOC Last Saved On: 2/8/99 10:49 AM
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED

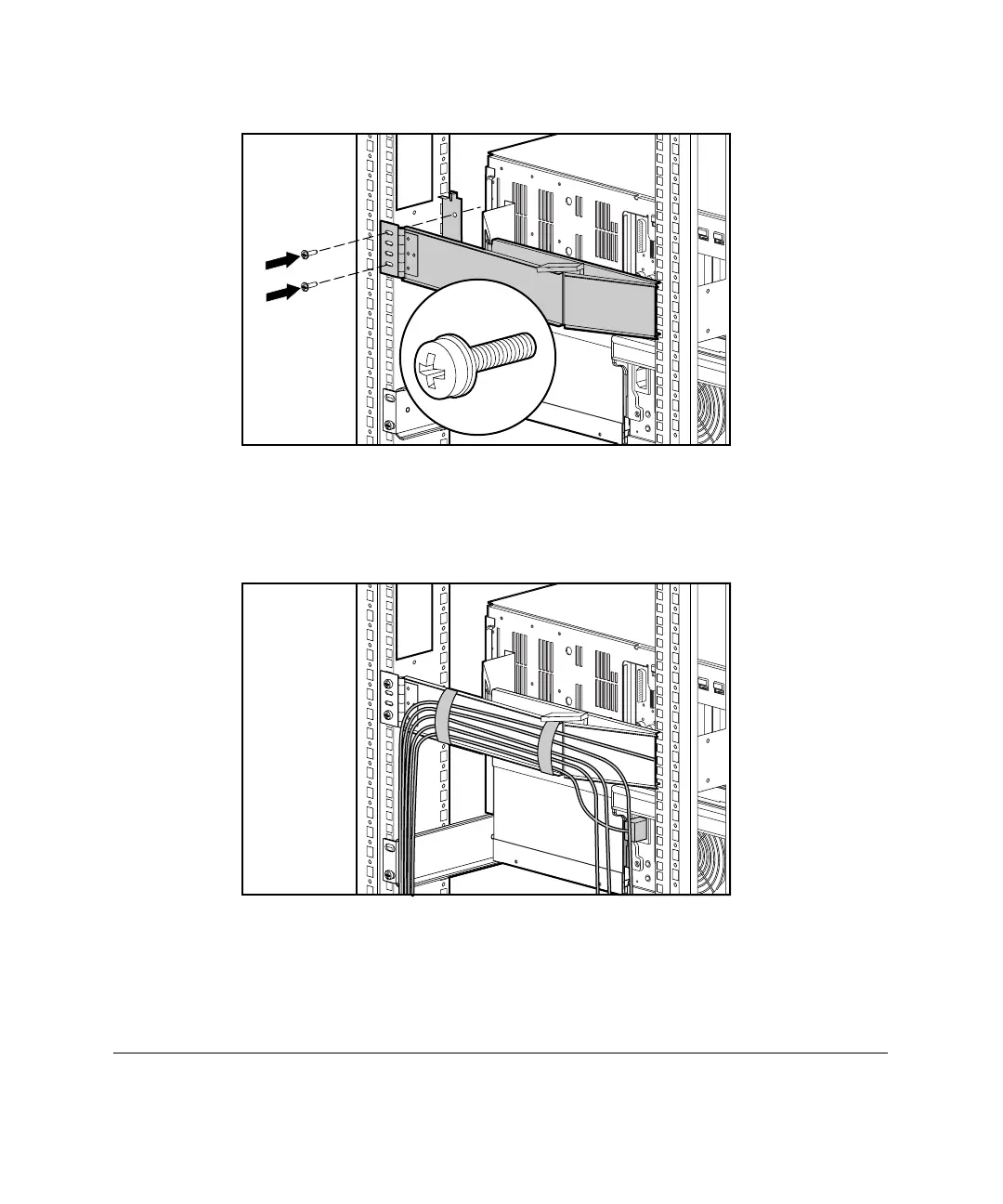

Figure 3-16. Attaching the cable management arm to the rear brace of the rack
4. Attach and secure external cables for keyboard, mouse, monitor,
network and power as shown in Figure 3-17. See Chapters 7 and 8 for
external cabling connector locations.
Figure 3-17. Attaching and securing external cables
