24 SAM_EN | 01 2022_05
Entering the final value
The final value of the same charging process is entered in the same way. Selecting the "Check" option outputs
the desired information.

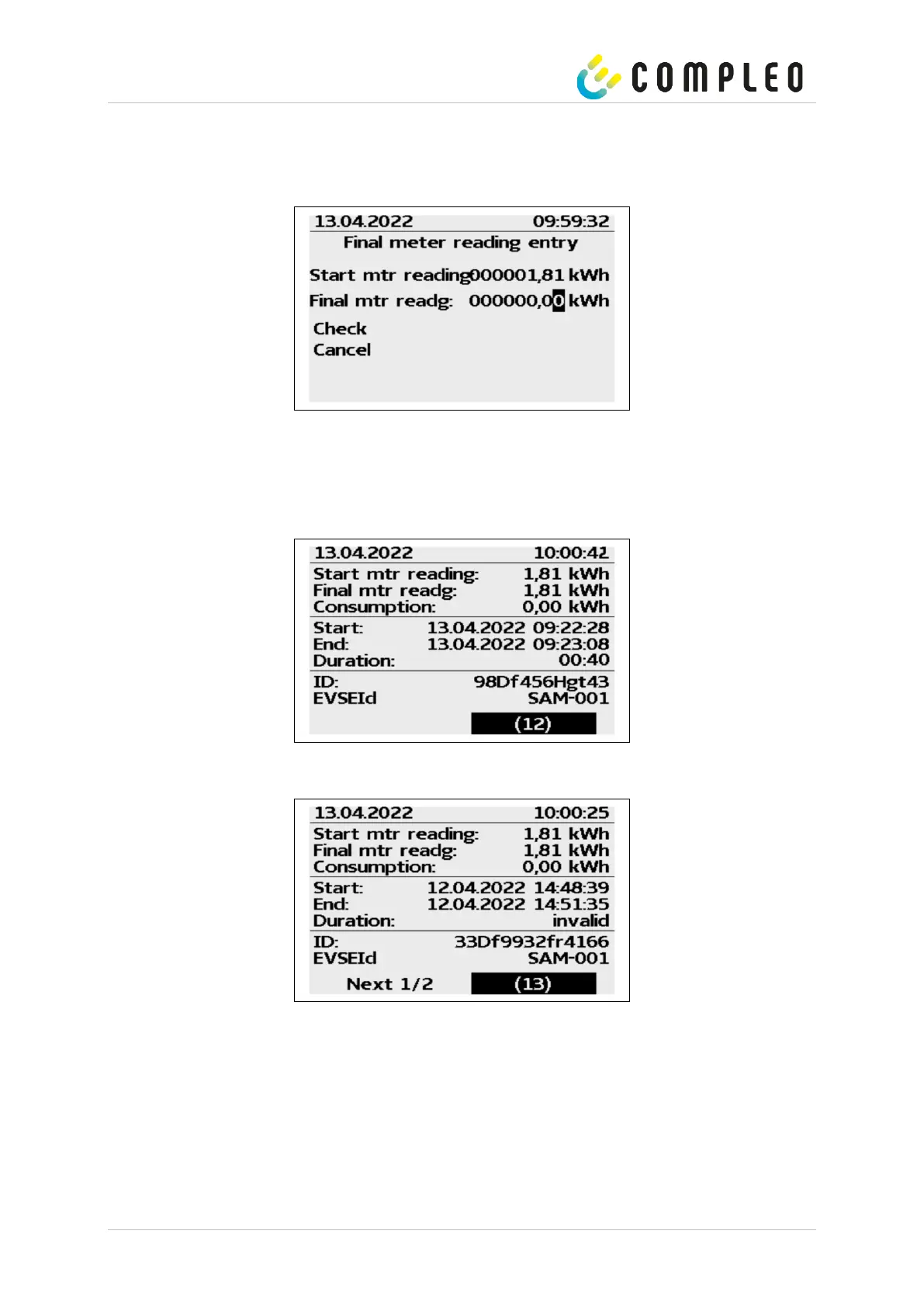

Figure 16: Entering the final value (example)
Display of the stored data
If the actual values are entered correctly, the information will be as shown in the illustration below. The display
can be closed with the right key, but it also closes itself after an appropriate time window.
Figure 17: Output of the desired information (example)
If there are several data sets (possible with a charges ≤ 0Wh), scrolling is possible.
Figure 18: Example: further entries
